Operation Check

  1. Turn the ignition switch to the OFF position.
  2. Apply battery voltage to the fuel pump drive connector to check that the pump operates.
    CAUTION: The fuel pump is an in-tank type and its operating sound is hard to hear without removing the fuel tank cap.

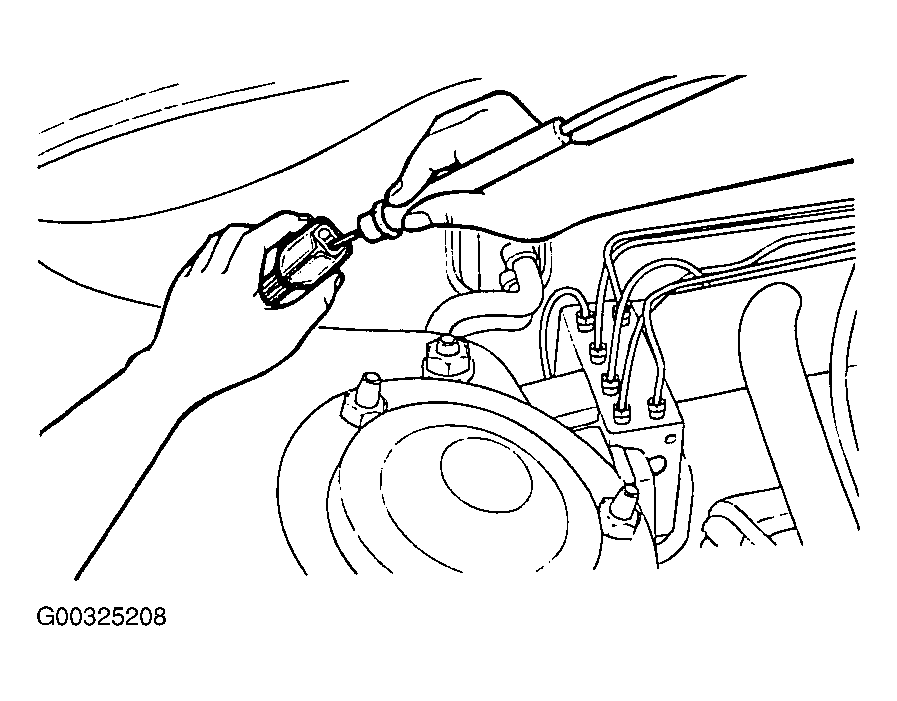

    Fig 1: Testing Fuel Pump Operation
    G00325208Courtesy of KIA MOTORS AMERICA, INC.
  3. Pinch the hose to check that fuel pressure is felt.

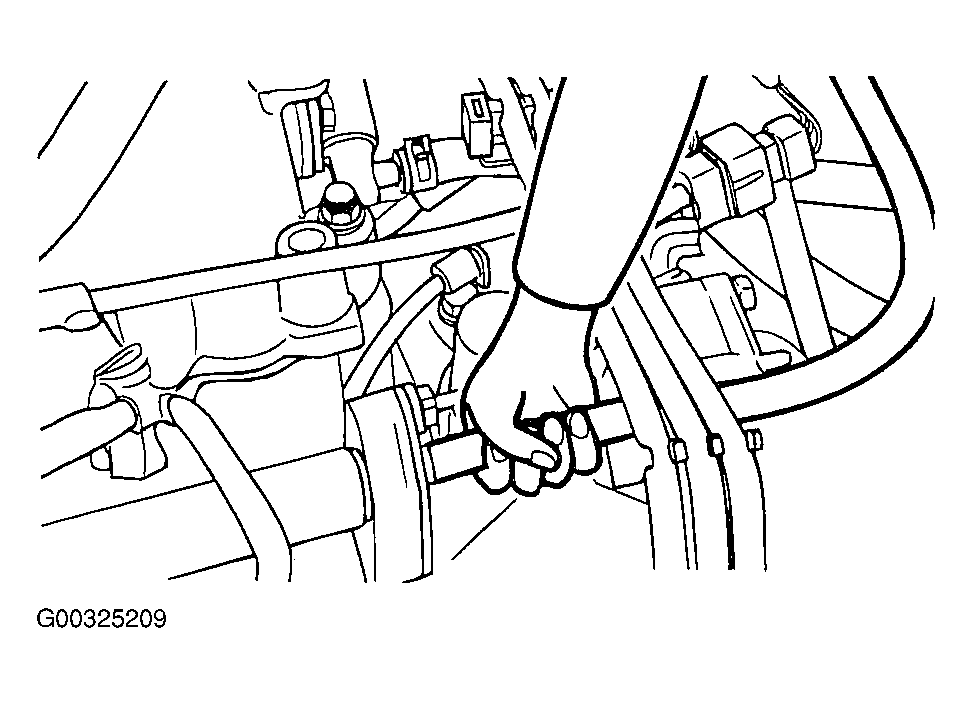

Fig 2: Checking For Fuel Pressure
G00325209Courtesy of KIA MOTORS AMERICA, INC.
