Replacing Valve Guide

Using the special tool (09221-3F000(A)), withdraw the old valve guide out the bottom of the cylinder head.
Recondition the valve guide hole so that it can receive the newly press-fitted oversize valve guide.

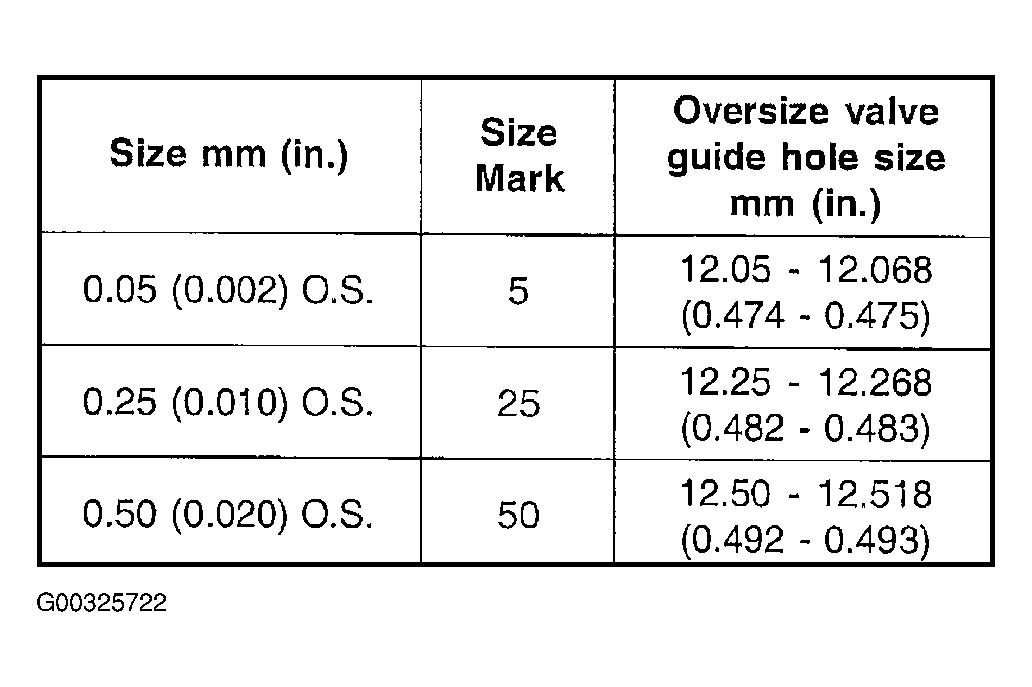

Fig 1: Valve Guide Oversize Chart
Courtesy of KIA MOTORS AMERICA, INC.

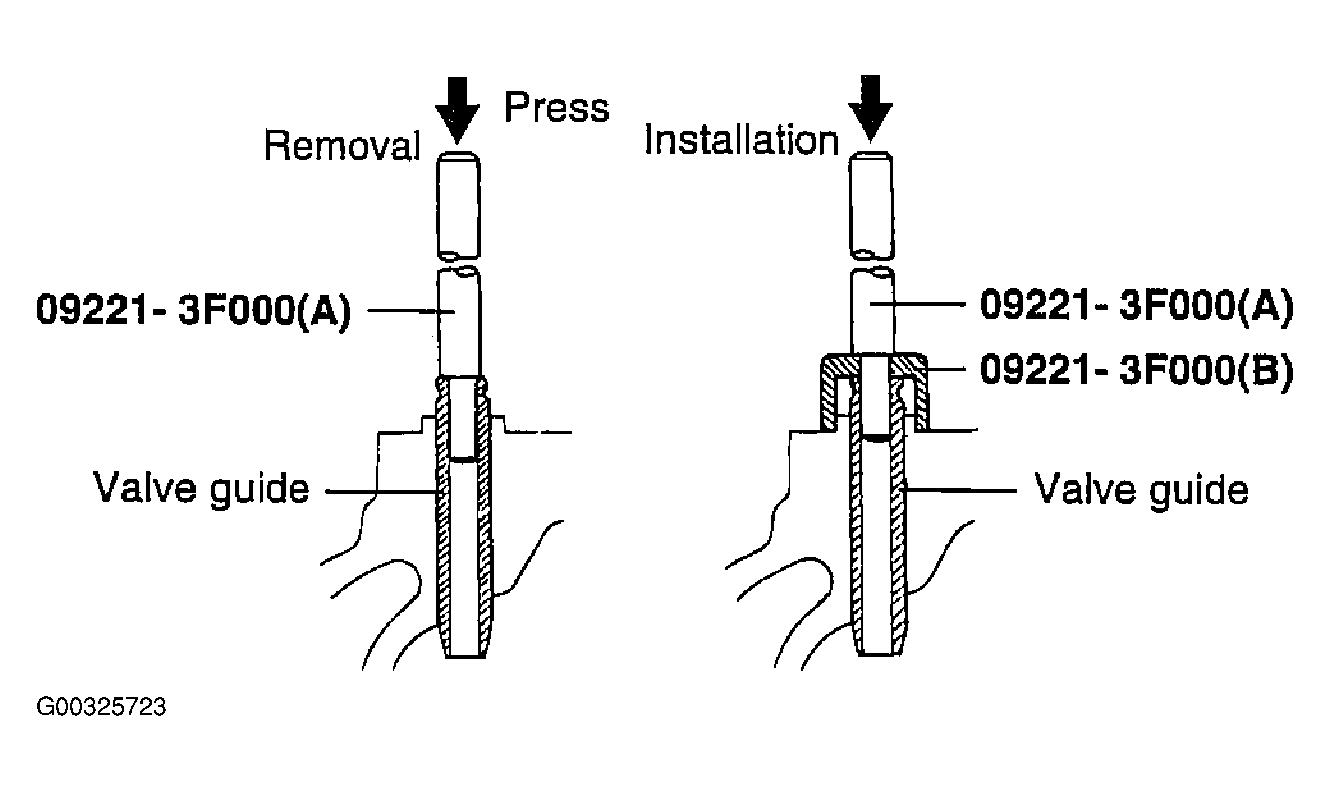

Fig 2: Removing & Installing Valve Guide
Courtesy of KIA MOTORS AMERICA, INC.
Using the special tool (09221-3F000(A), 09221-3F000(B)) press-fit the valve guide. The valve guide must be press-fitted from the upper side of the cylinder head. Keep in mind that the intake and exhaust valve guides are different in length.
After the valve guide is press-fitted, insert a new valve and check for proper clearance.
After the valve guide is replaced, check that the valve is fully seated. Recondition the valve seats as necessary.
NOTE: Do not install a valve guide unless it is oversize.

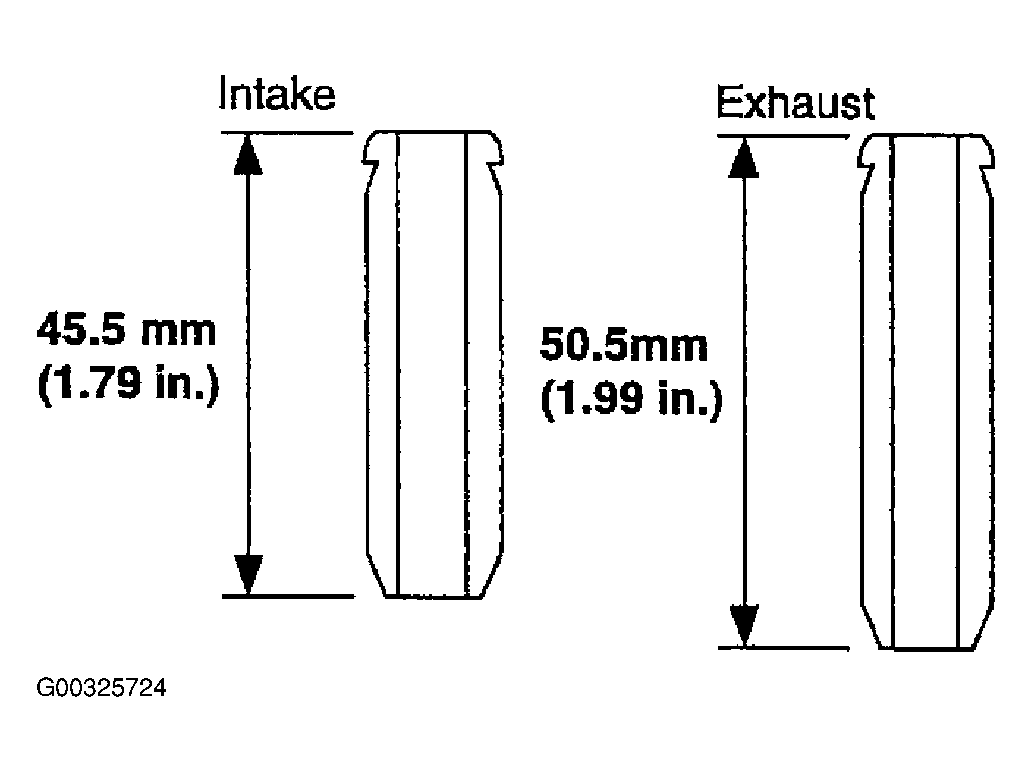

Fig 3: Measuring Valve Guide

Courtesy of KIA MOTORS AMERICA, INC.
