Home >> Kia >> 2004 >> Amanti >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 3.5L Engine >> Cylinder Head Assembly >> Cylinder Head >> Notes

Cylinder Head: Notes

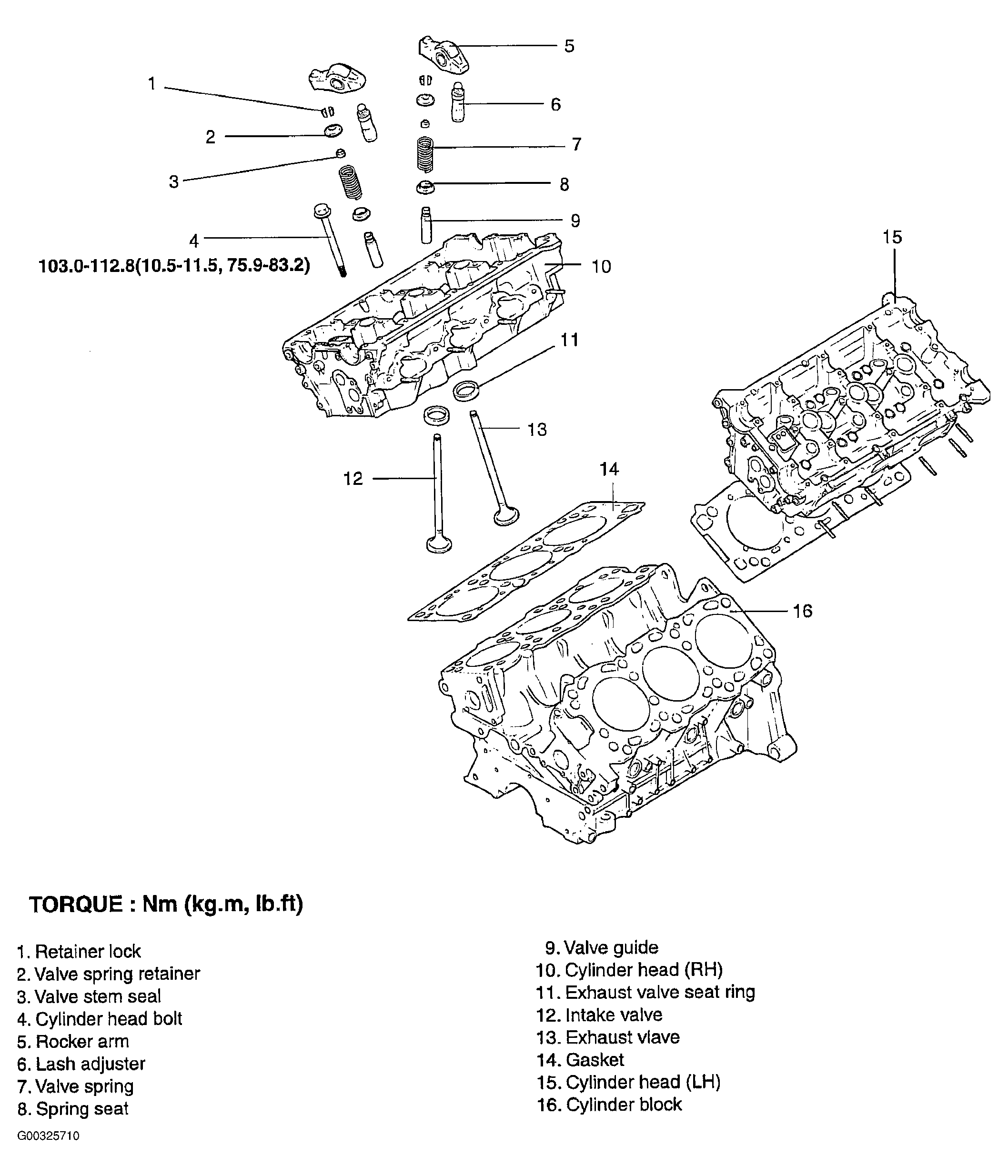

Fig 1: Identifying Cylinder Head Components

G00325710

Courtesy of KIA MOTORS AMERICA, INC.
