Cooling System: Thermostat: Notes

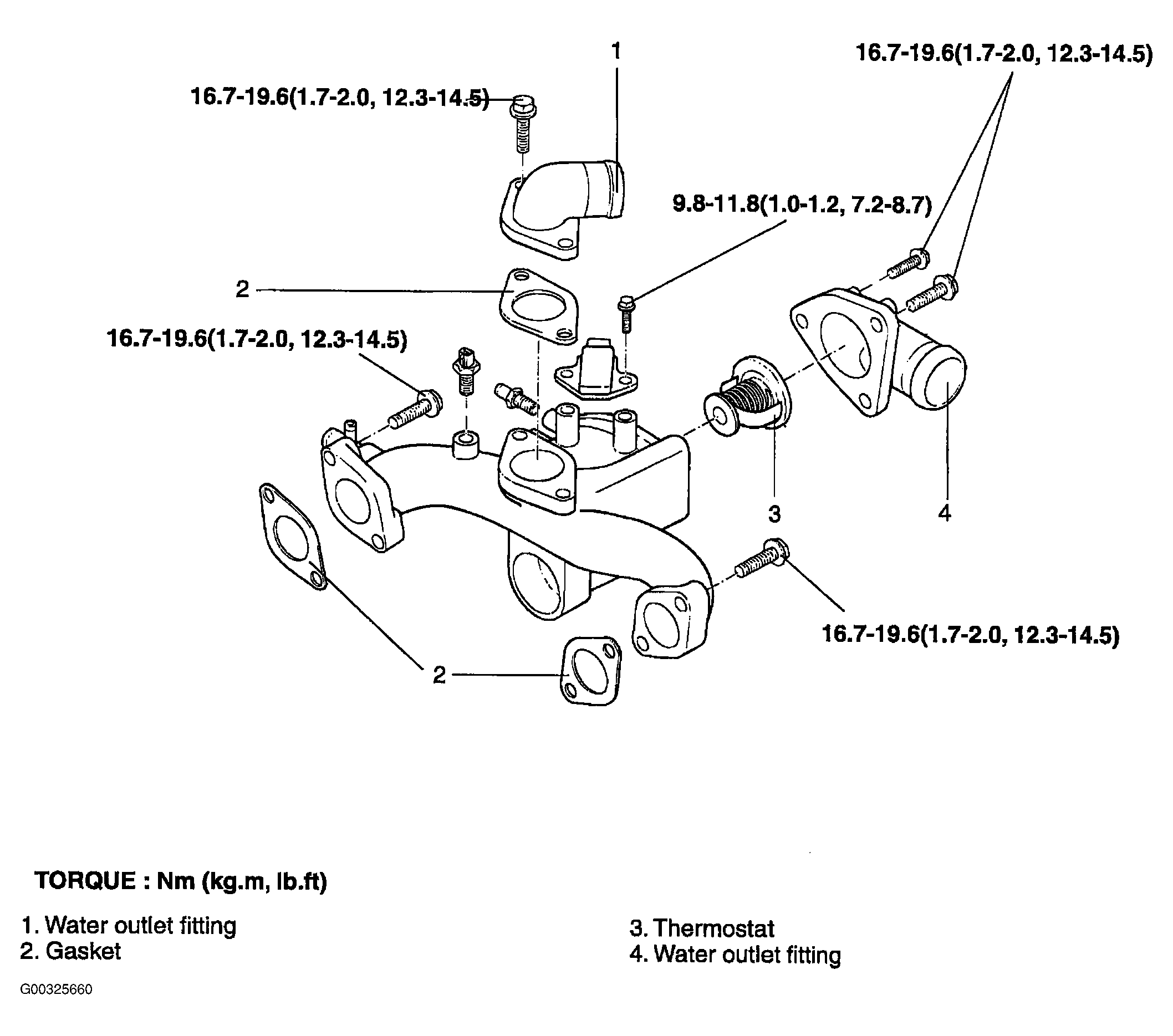

Fig 1: Identifying Thermostat Components

G00325660

Courtesy of KIA MOTORS AMERICA, INC.
