Cooling System: Thermostat: Installation

  1. Check that the flange of the thermostat is correctly placed in the socket of the thermostat housing.

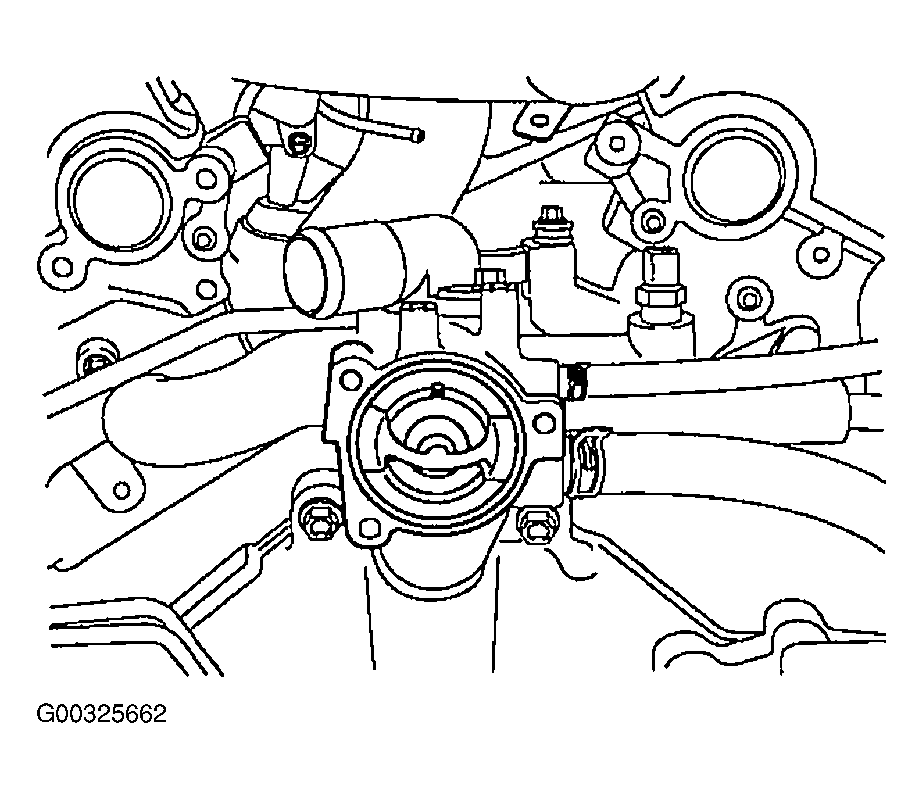

    Fig 1: Installing Thermostat
    G00325662Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the inlet fitting.

    Tightening torque

    Engine coolant inlet fitting bolt :

    17-20 Nm (1.7-2.0 kg.m, 12-14 lb.ft)

  3. Refill the coolant.
