Home >> Kia >> 2004 >> Amanti >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 3.5L Engine >> Cooling System >> Engine Coolant Pump >> Notes

Engine Coolant Pump: Notes

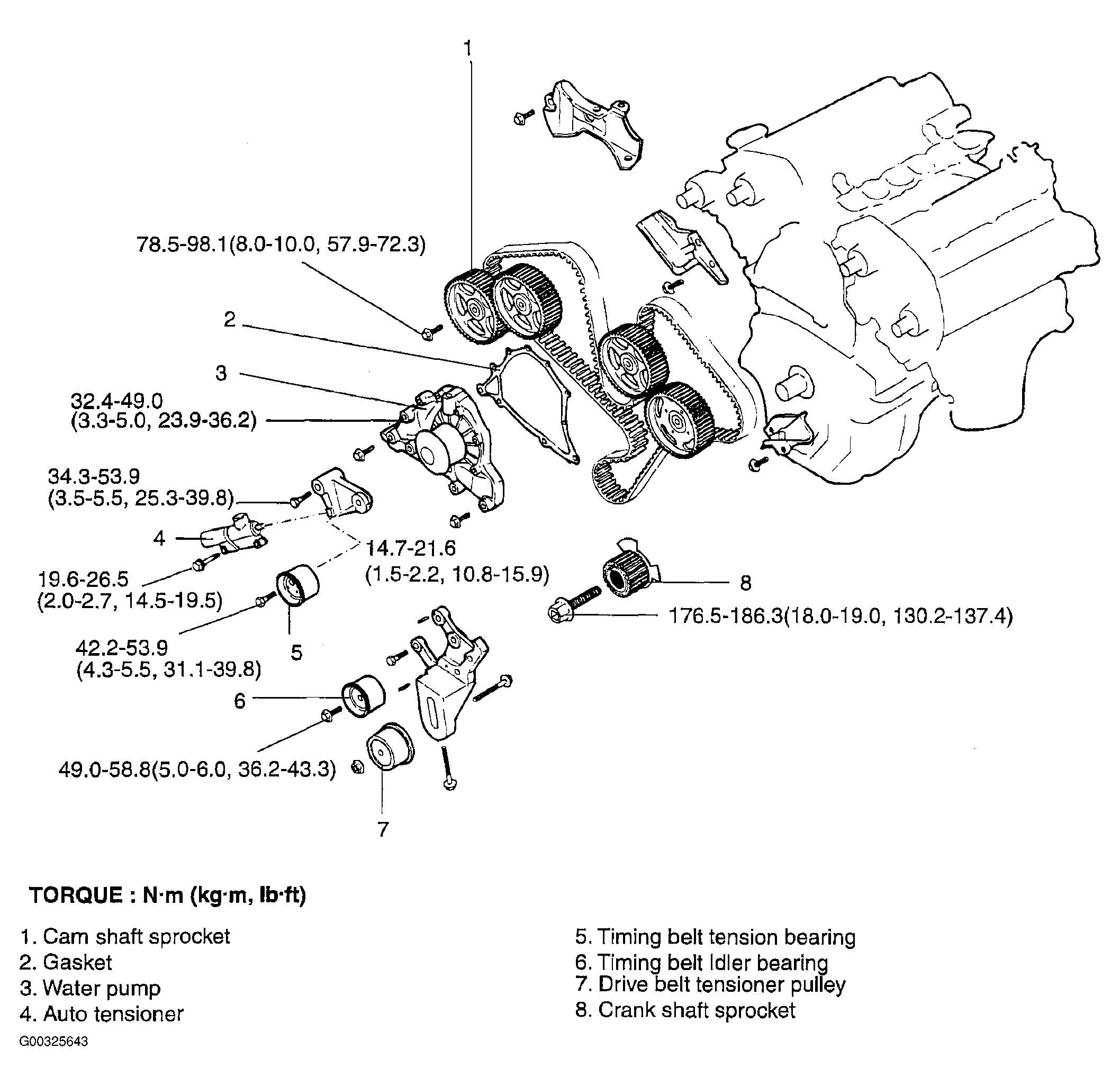

Fig 1: Identifying Coolant Pump Components

G00325643

Courtesy of KIA MOTORS AMERICA, INC.
