Home >> Kia >> 2004 >> Amanti >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 3.5L Engine >> Cooling System >> Coolant Temperature Sensor >> Removal

Coolant Temperature Sensor: Removal

  1. Drain the engine coolant.
  2. Remove the engine harness after disconnecting the ground cable of the battery.
  3. Remove the engine coolant sensor.

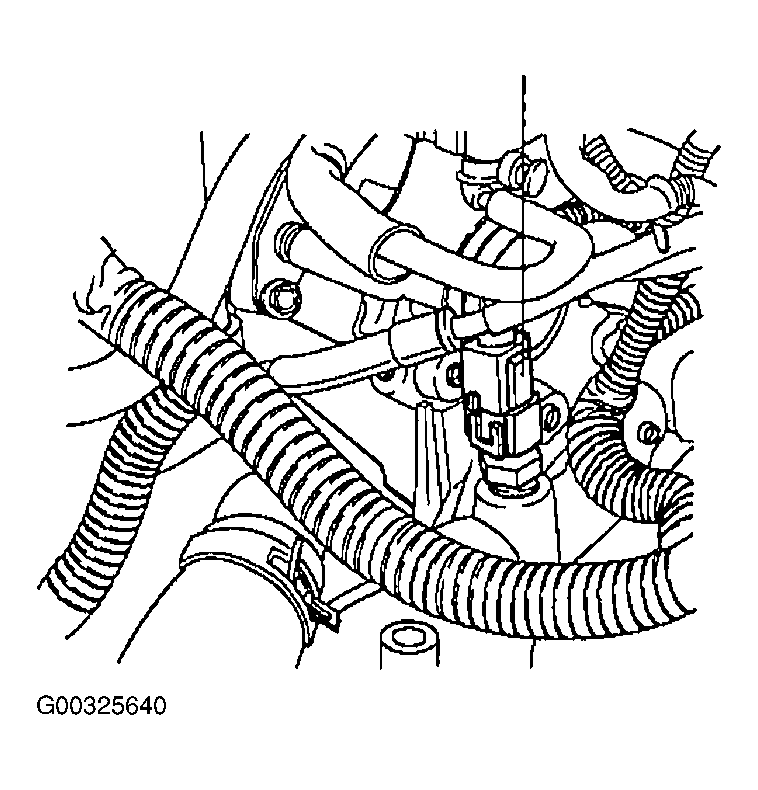

Fig 1: Removing Coolant Sensor
G00325640Courtesy of KIA MOTORS AMERICA, INC.
