Esp Control Cycles

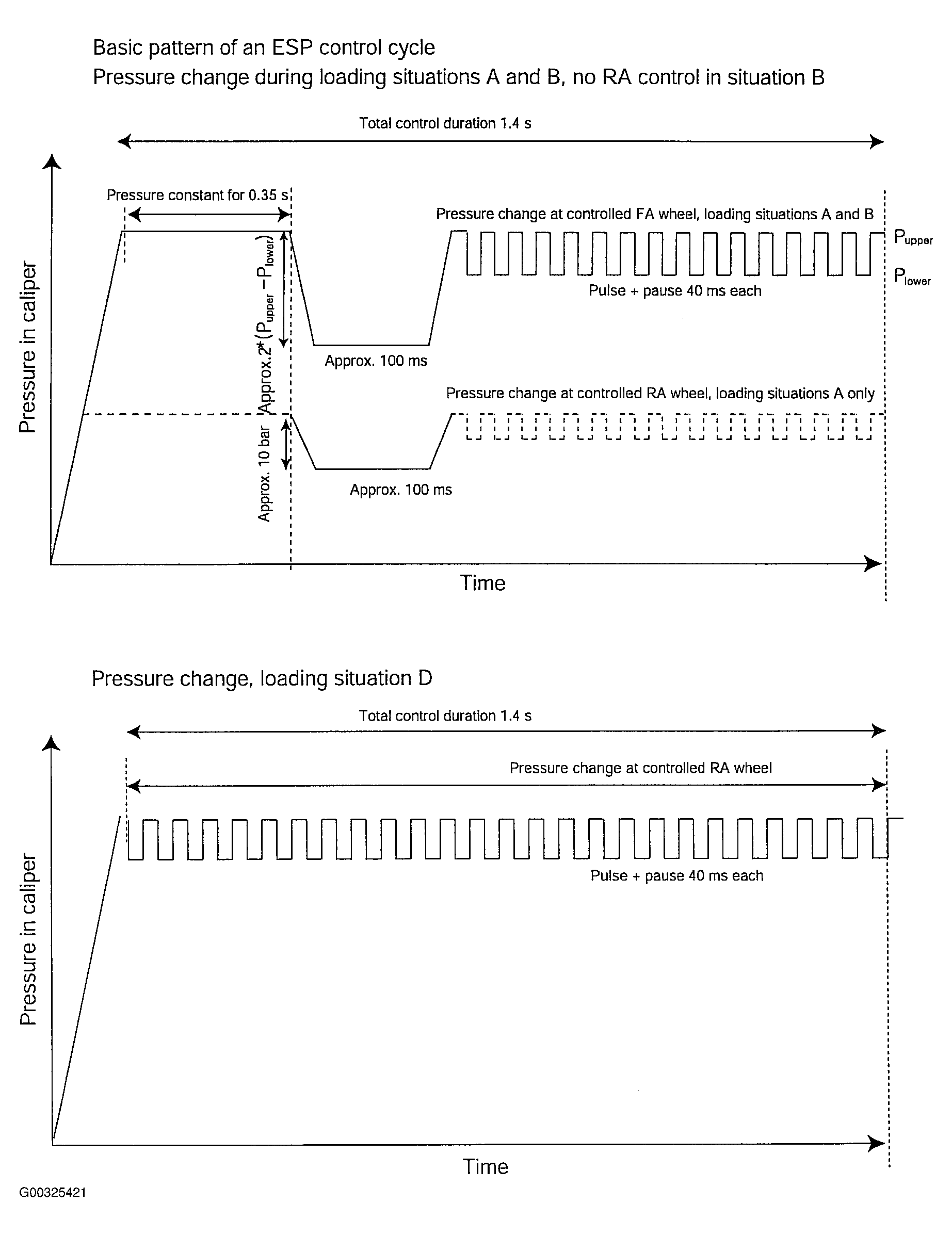

Fig 1: Identifying ESP Control Cycles
G00325421Courtesy of KIA MOTORS AMERICA, INC.
