System Components

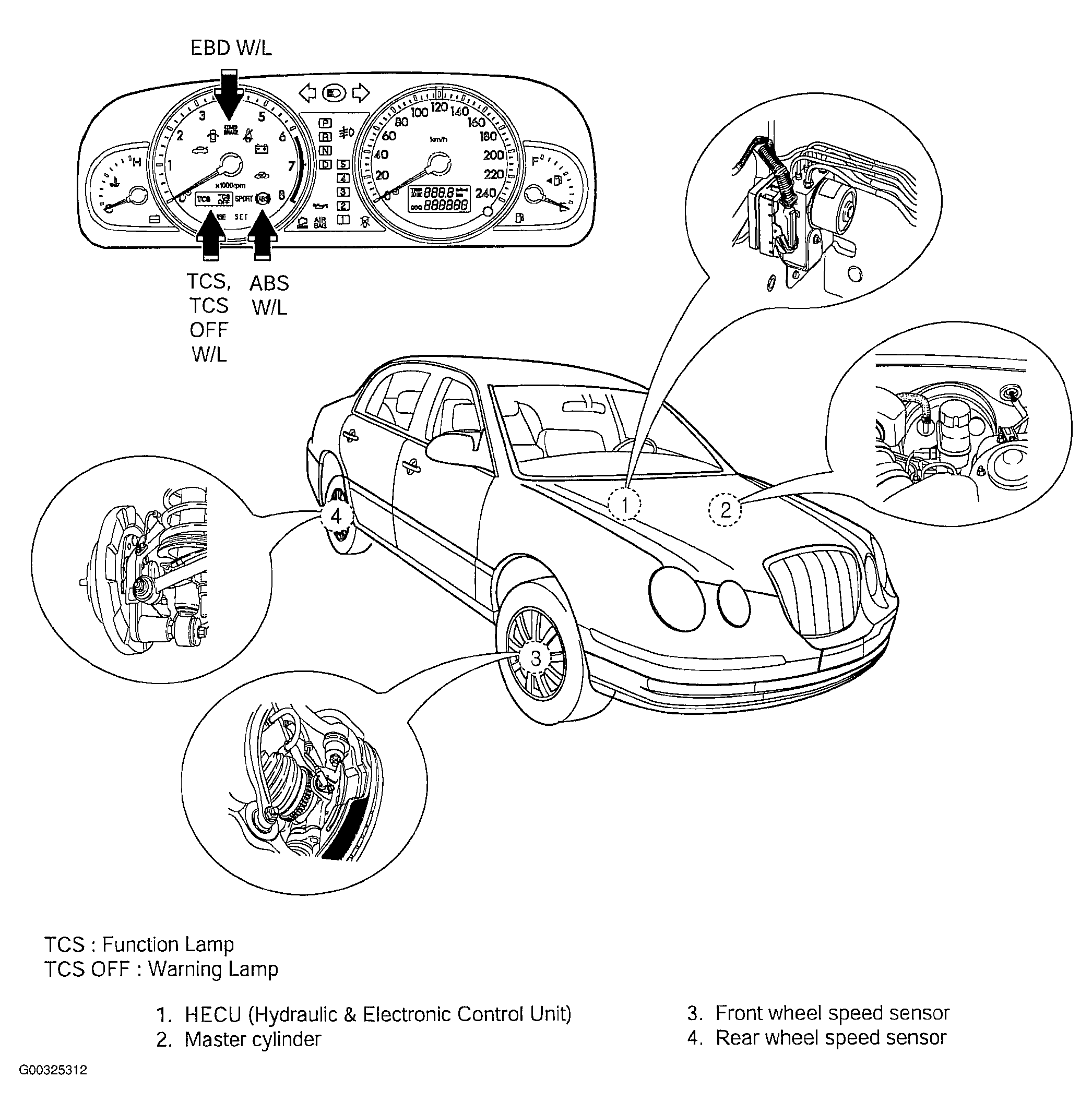

Fig 1: Illustrating Component Location

G00325312

Courtesy of KIA MOTORS AMERICA, INC.
