Outside Mirrors: Disassembly

  1. Remove mirror.
    CAUTION: Wear gloves to remove and install the mirror holder.
    1. Insert flat bladed screwdriver between the outside rearview mirror holder and the mirror assembly.
    Fig 1: Removing Mirror
    G01100914Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove outside rearview mirror actuator.
    CAUTION: When prying with a flat bladed screwdriver, wrap it with a shop towel to prevent damage.
    1. Remove the outside rearview mirror actuator from the outside rearview mirror housing.

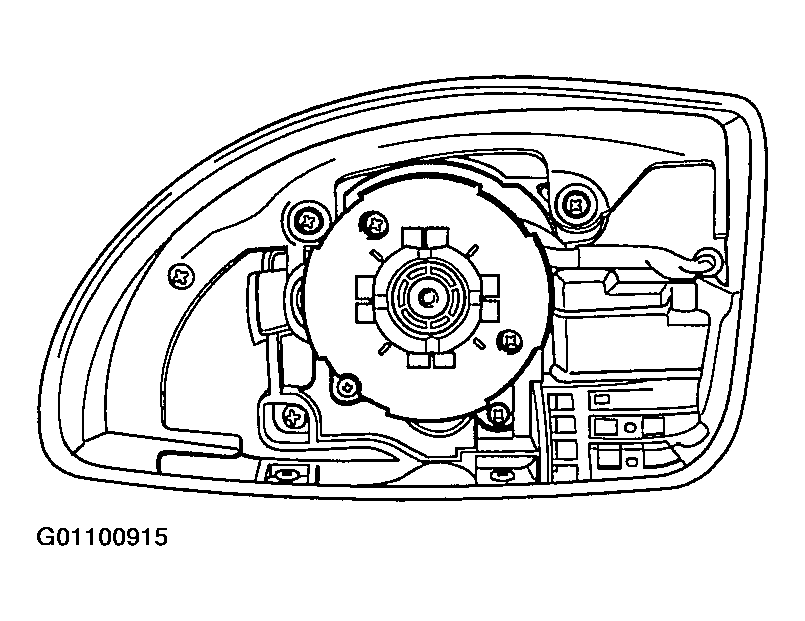

      Fig 2: Identifying Outside Rearview Mirror Actuator
      G01100915Courtesy of KIA MOTORS AMERICA, INC.
    2. When remove the outside rearview mirror actuator, take care of damage of electric wires.
