IMS Power Seat Control
>>
Circuit Diagram
Circuit Diagram

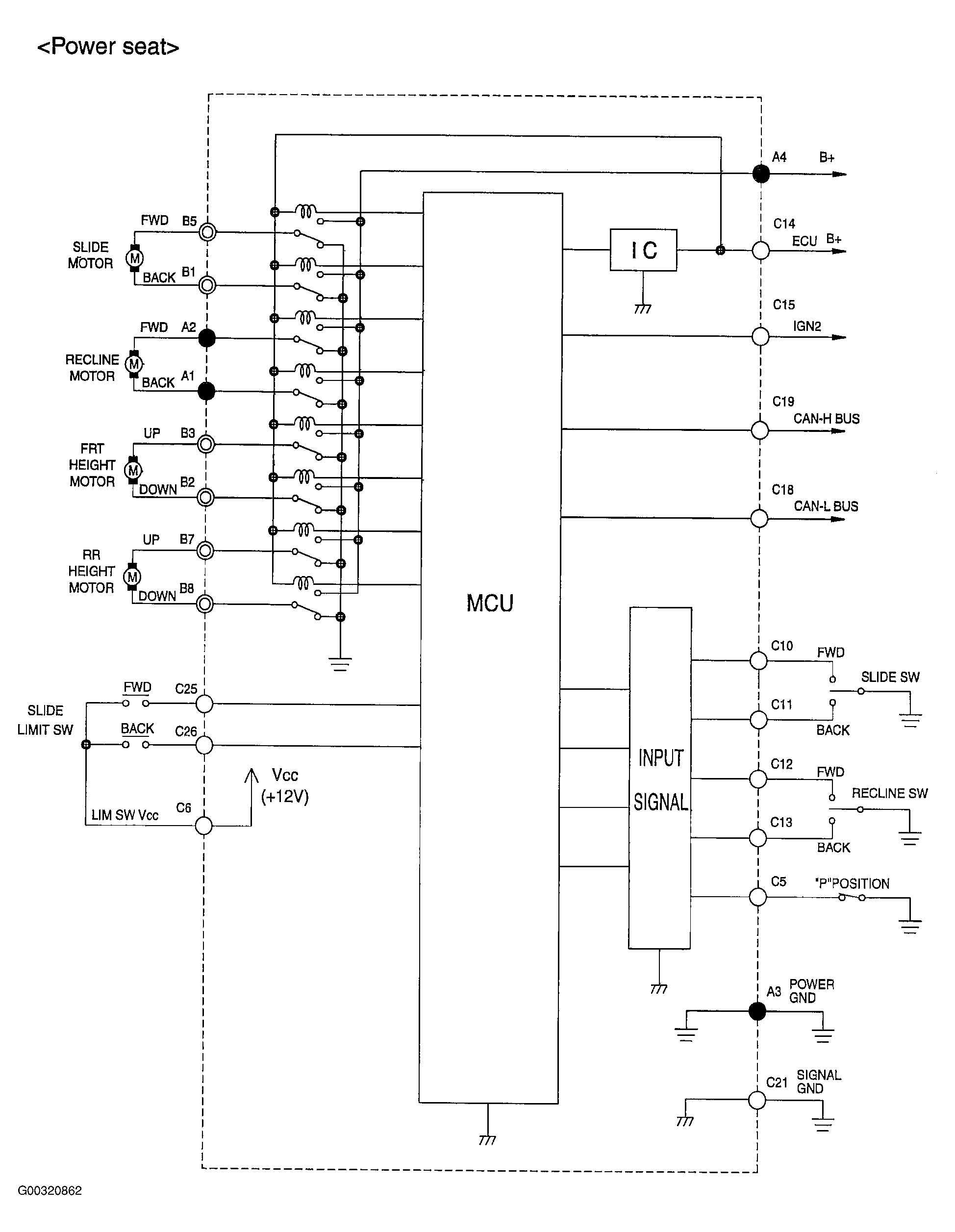

Fig 1: Power Seat Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

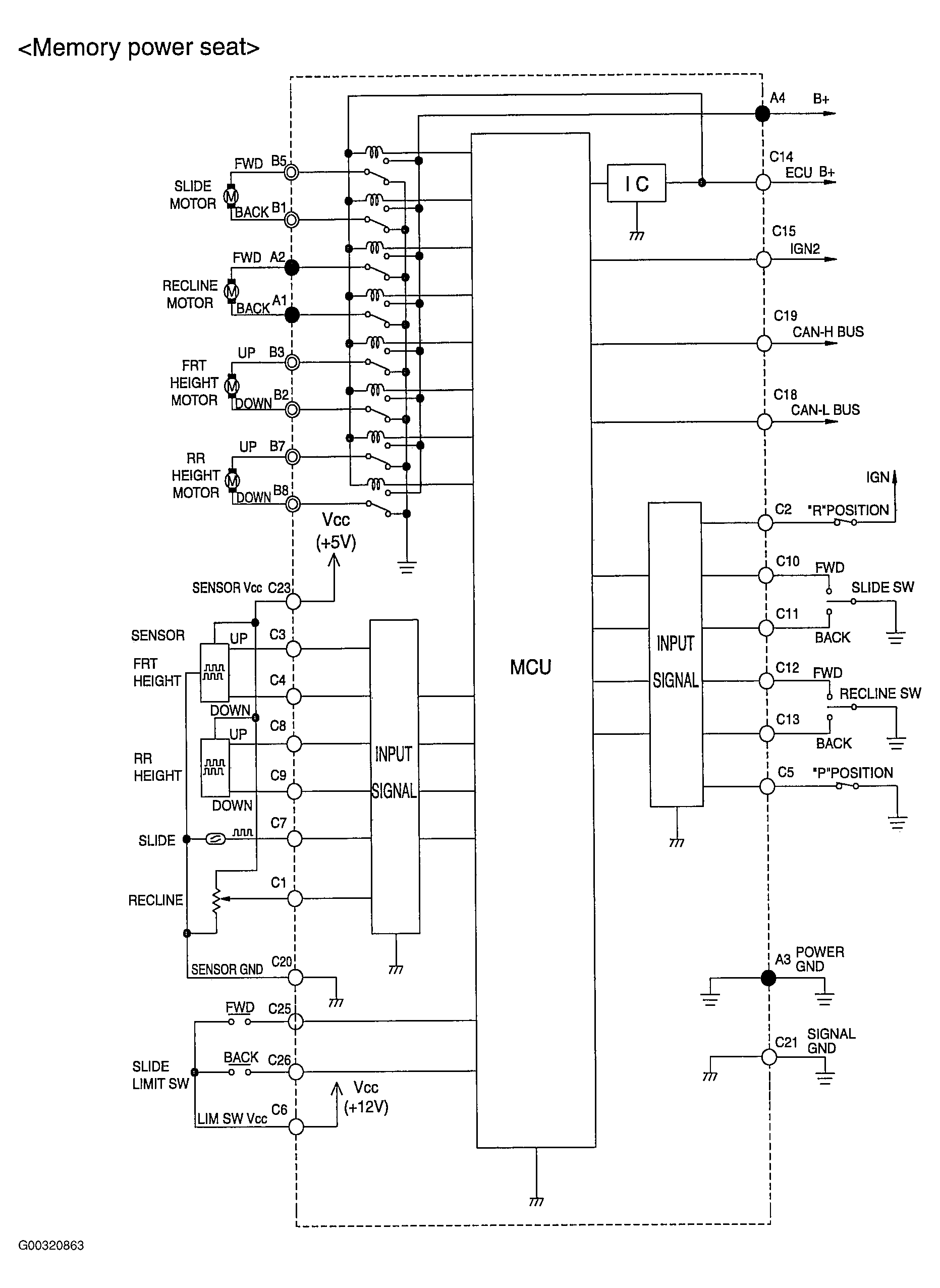

Fig 2: Memory Power Seat Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
