Memory Replay Operation

  1. Seat and mirror are returned to the registered positions as each position switch is pressed while the ignition is ON.
  2. Memory replay operation will be performed only if the memory is registered.
  3. If the position switch is pressed while the memory replay is in operation, the final switch is effective.
  4. It sounds the chime once while the memory replay operation (Position switch is ON).
  5. Replay inhibition condition

    If any of the following conditions is met, memory replay is prohibited and operation will stop if it is in replay operation.

    • Ignition OFF
    • When parking brake is released (switch OFF)
    • When the shift lever is at the position other than P
    • When the parking brake is released.
    • When the vehicle speed is more than 3 km/h
    • When the STOP switch is turned ON during the replay operation
    • When the manual switch is in operation

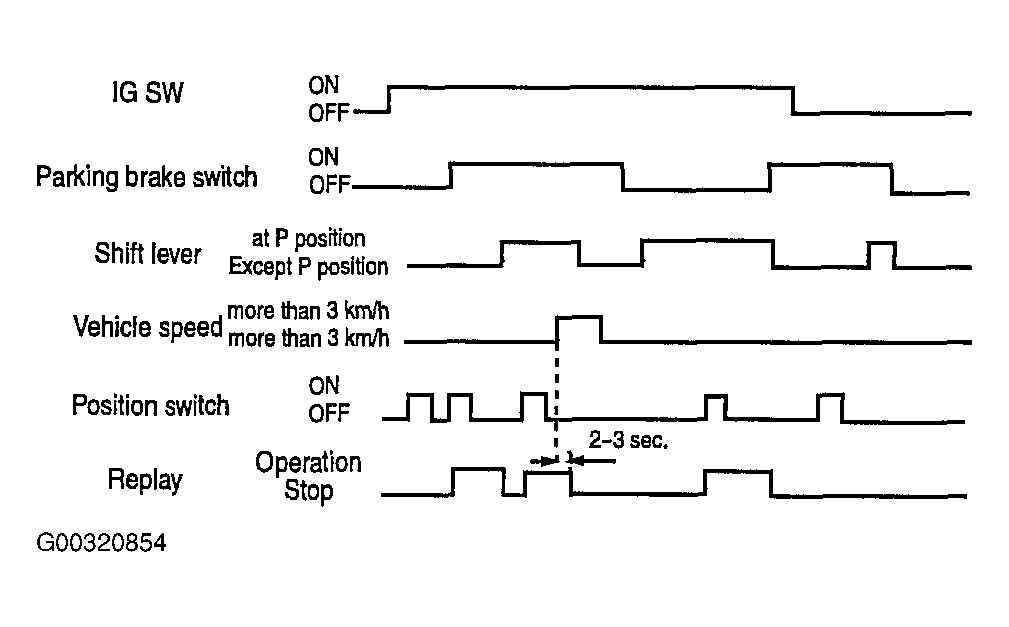

Fig 1: Memory Replay Operation Chart
G00320854Courtesy of KIA MOTORS AMERICA, INC.
