Control System: Components

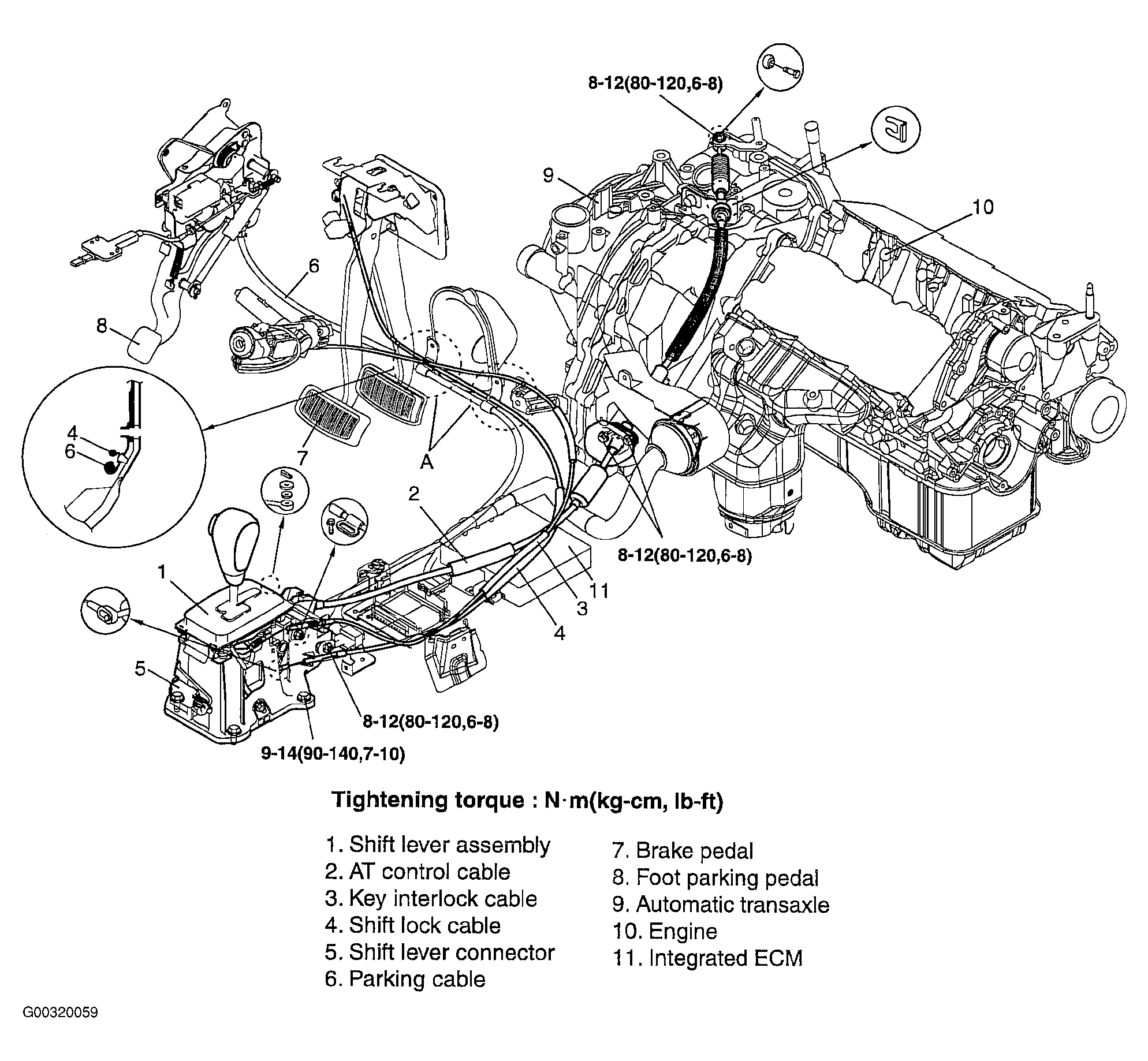

Fig 1: Illustrating Shift Lever Components
Courtesy of KIA MOTORS AMERICA, INC.

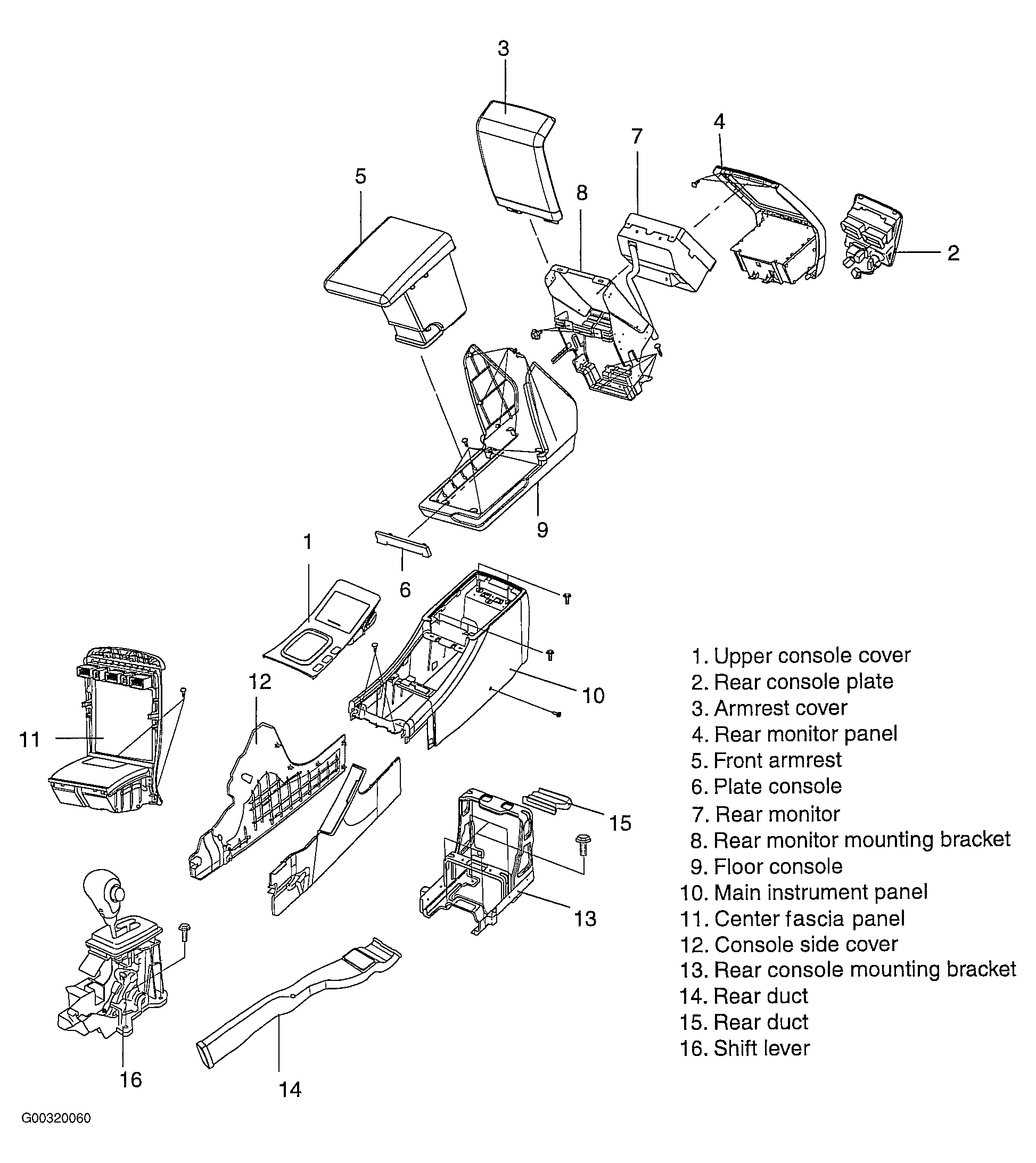

Fig 2: Illustrating Center Console
Courtesy of KIA MOTORS AMERICA, INC.

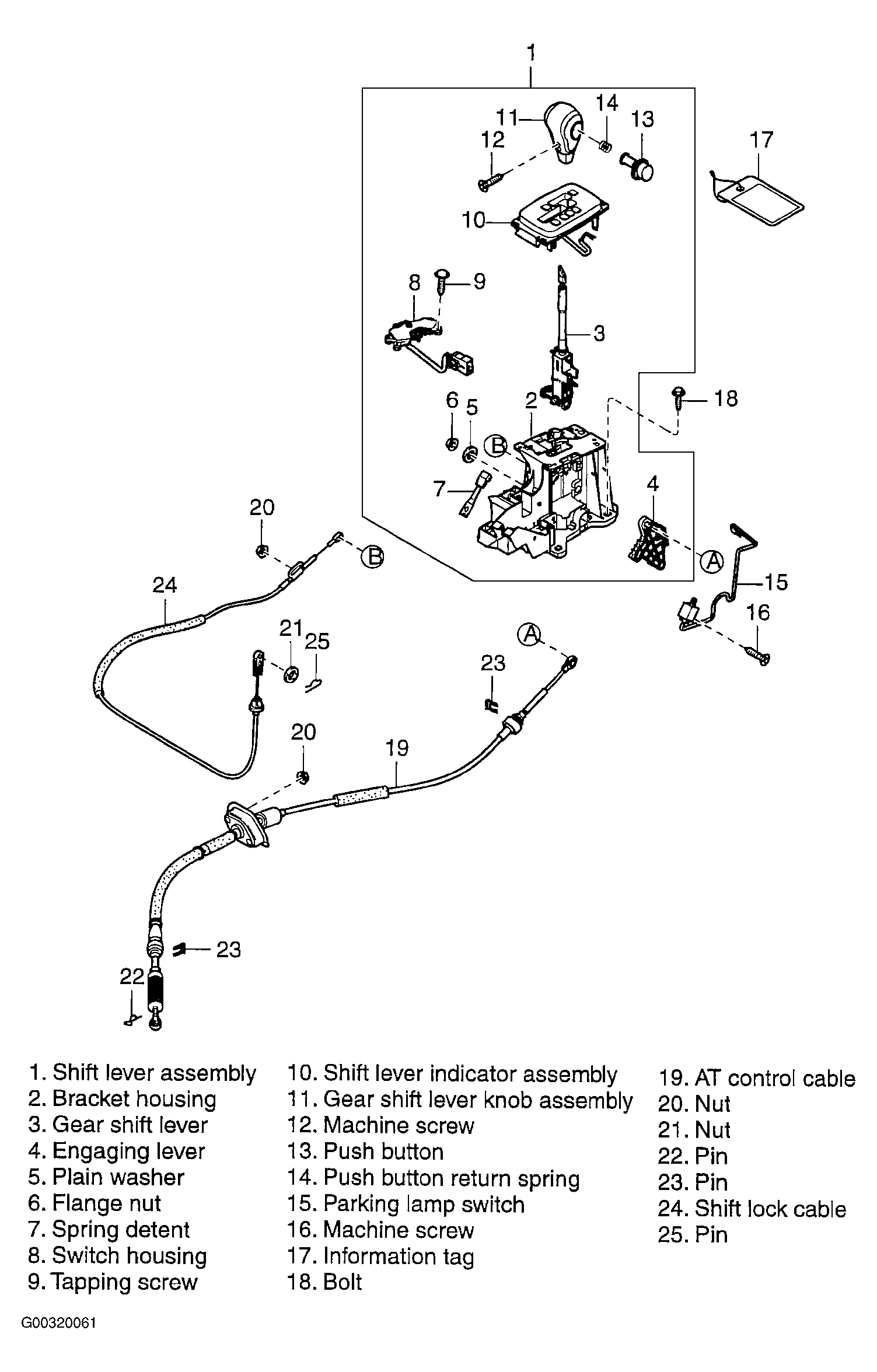

Fig 3: Exploded View Of Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
