Strut Assembly: Components

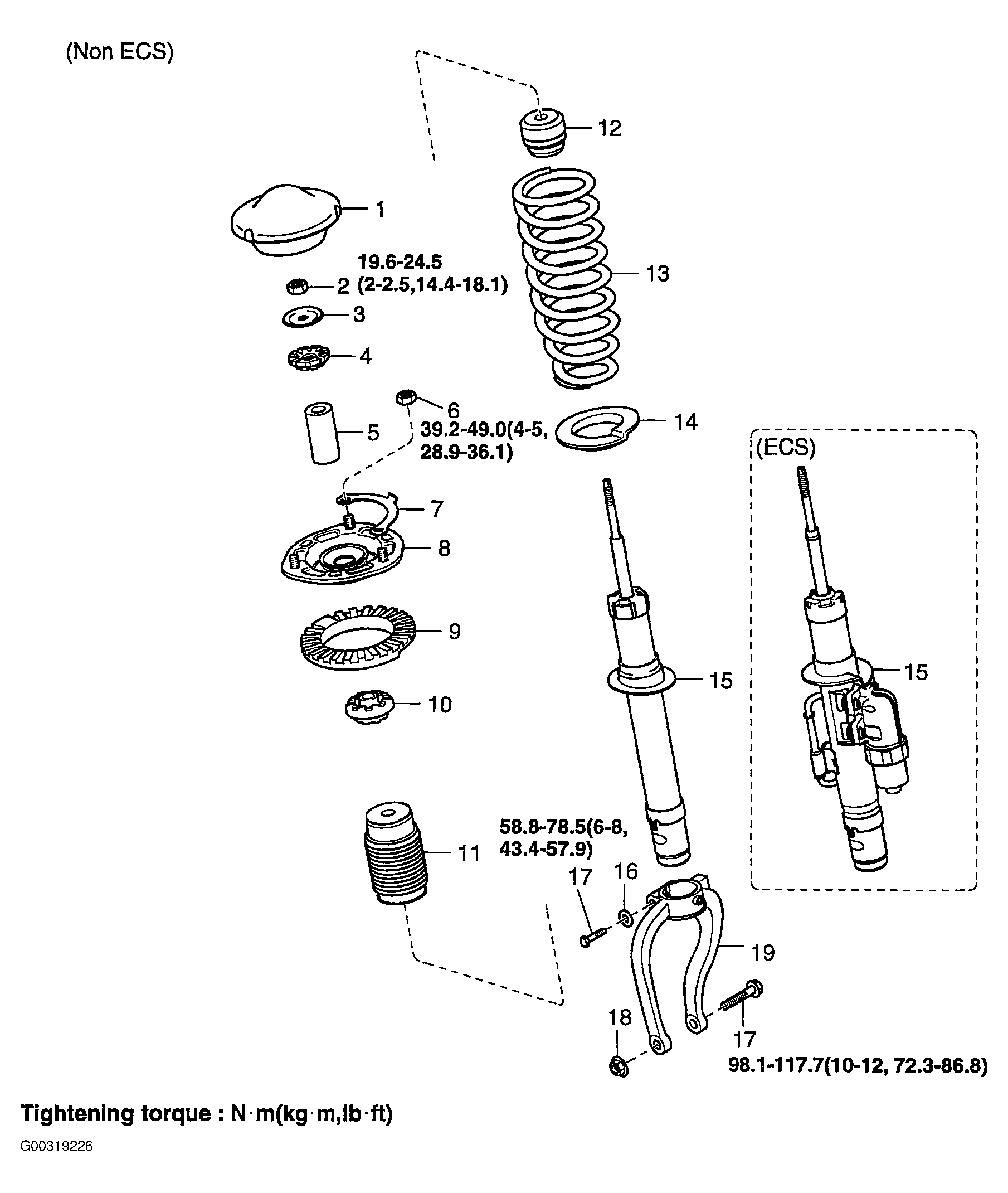

LEGEND FOR EXPLODED VIEW OF FRONT STRUT
| No. | Components | ||
|---|---|---|---|
| 1 | Front Cap | ||
| 2 | Self Locking Nut | ||
| 3 | Washer | ||
| 4 | Upper Bushing | ||
| 5 | Collar | ||
| 6 | Flange Nut | ||
| 7 | Ring Top Mounting | ||
| 8 | Front Bracket Assembly | ||
| 9 | Front Spring Upper Pad | ||
| 10 | Upper Bushing | ||
| 11 | Dust Cover Assembly | ||
| 12 | Rubber Bumper | ||
| 13 | Front Spring | ||
| 14 | Front Spring Lower Pad | ||
| 15 | Front Shock Absorber Assembly | ||
| 16 | Spring Washer | ||
| 17 | Bolt | ||
| 18 | Nut | ||
| 19 | Front Fork | ||
|
|||
