Fuel Tank Pressure Sensor (Ftps)
>>
Troubleshooting Procedures
>>
Harness Inspection Procedures
Harness Inspection Procedures

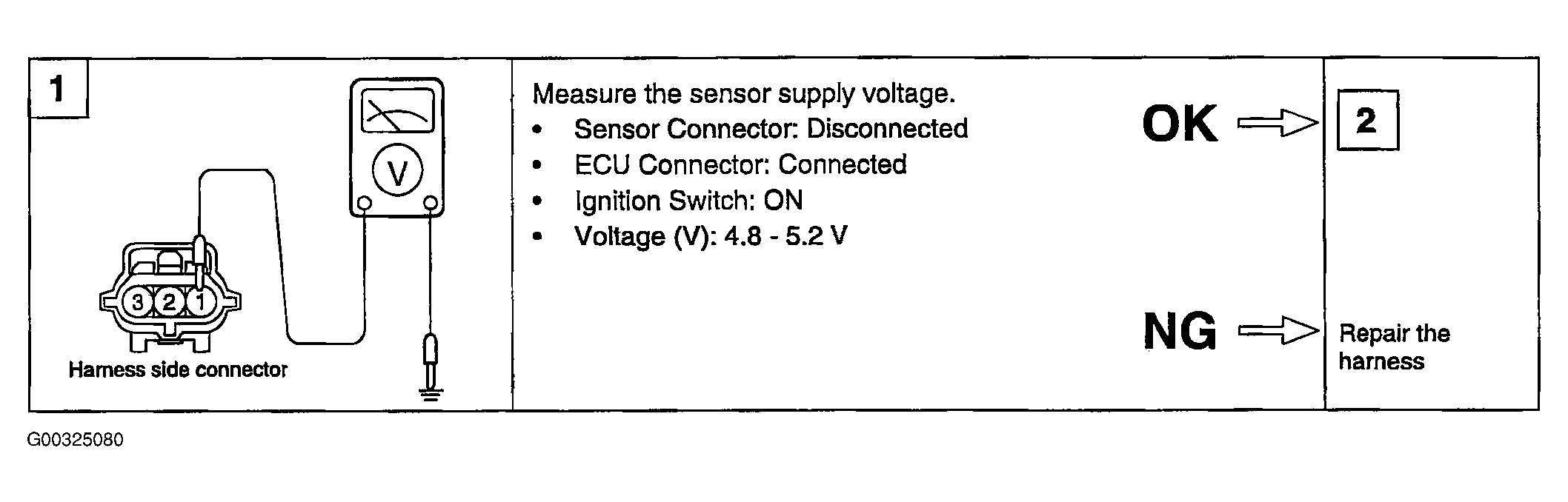

Fig 1: Illustrating FTPS Harness Inspection Procedure (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

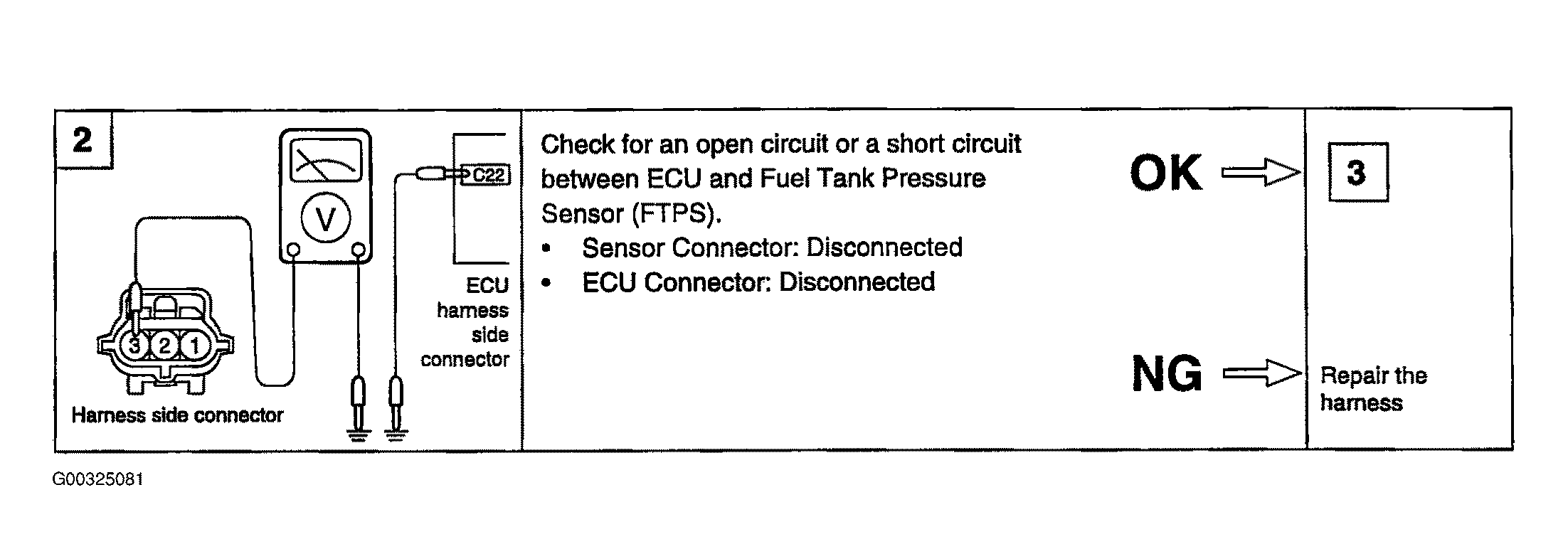

Fig 2: Illustrating FTPS Harness Inspection Procedure (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

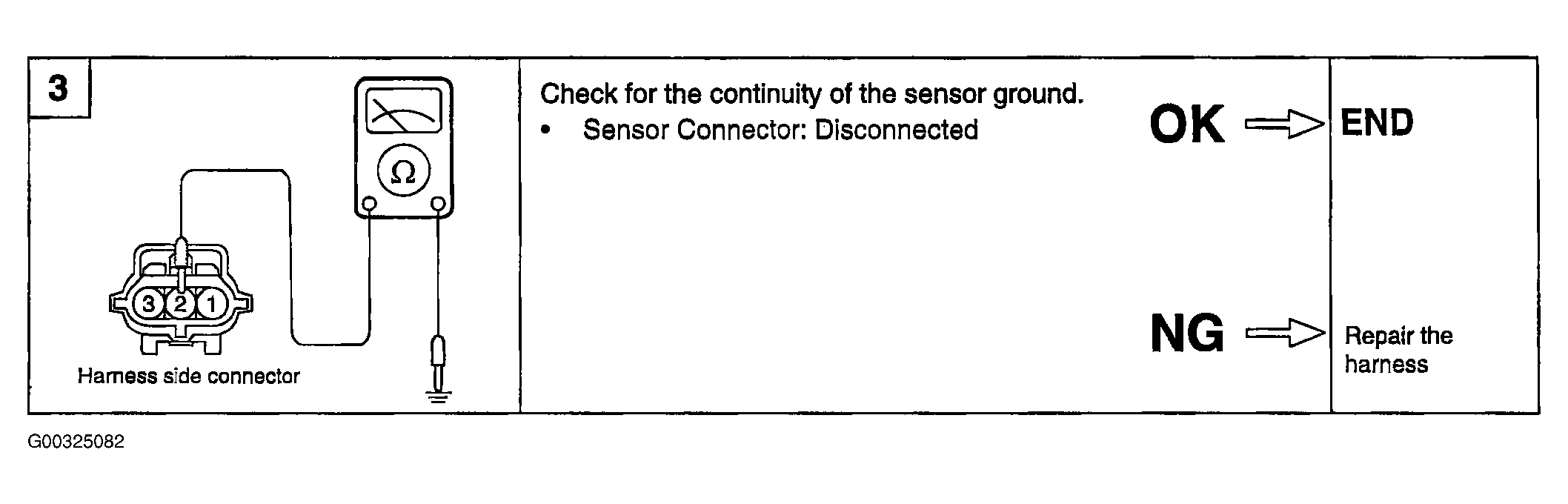

Fig 3: Illustrating FTPS Harness Inspection Procedure (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
