Clutch Pedal, Switch And Safety Switch: Removal/Replacement

  1. Remove parts in order shown in figure below.
  2. Inspect all parts and repair or replace as necessary.
    NOTE: Apply a thin coat of lithium grease to bushing and pins before installation.
  3. Install in reverse order of removal.

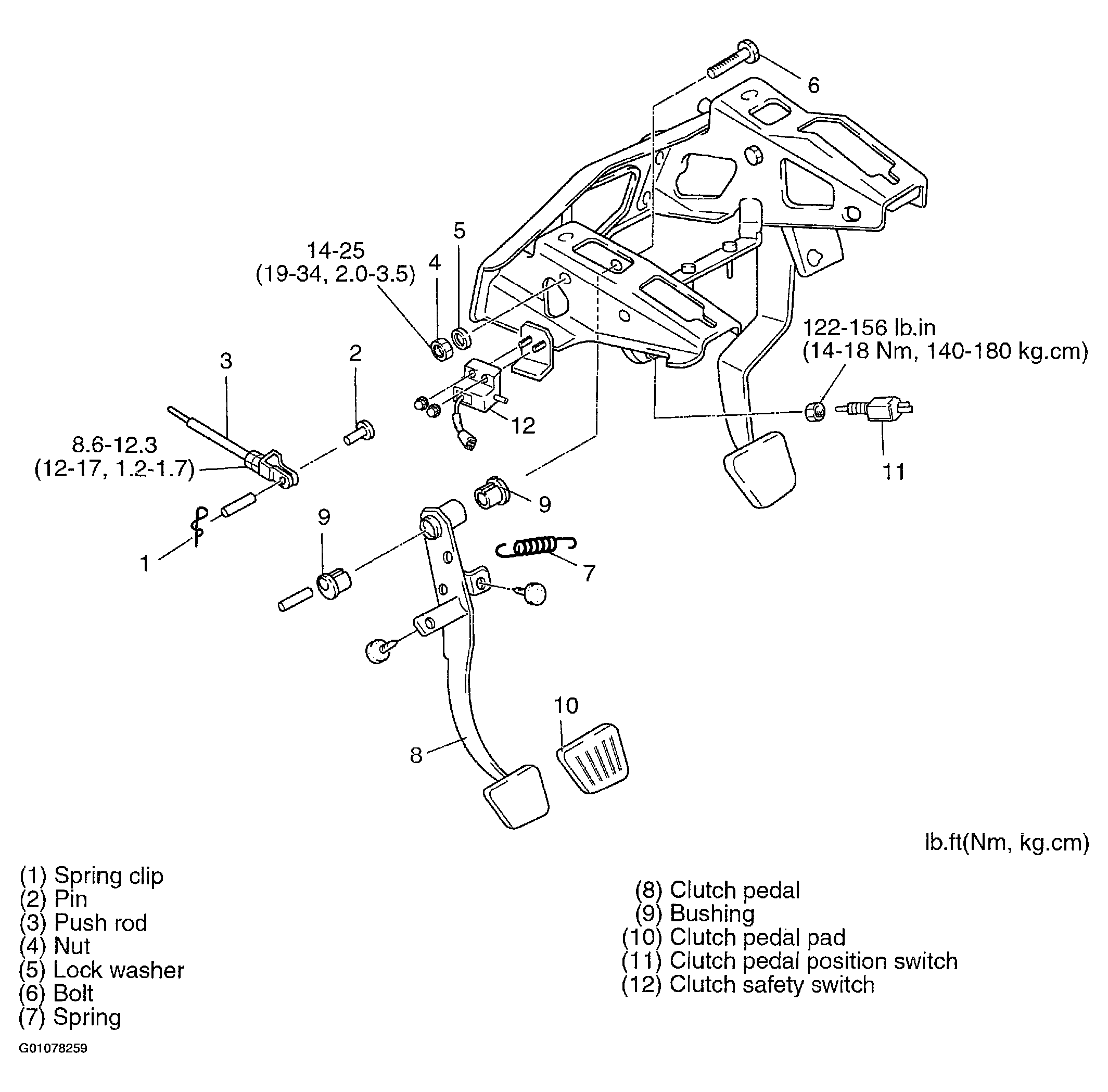

    Fig 1: Illustrating Clutch Pedal Components
    G01078259Courtesy of KIA MOTORS AMERICA, INC.
