Trunk Lid: Disassembly

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk lid latch.
1. Remove trunk lid latch mounting bolts (2).

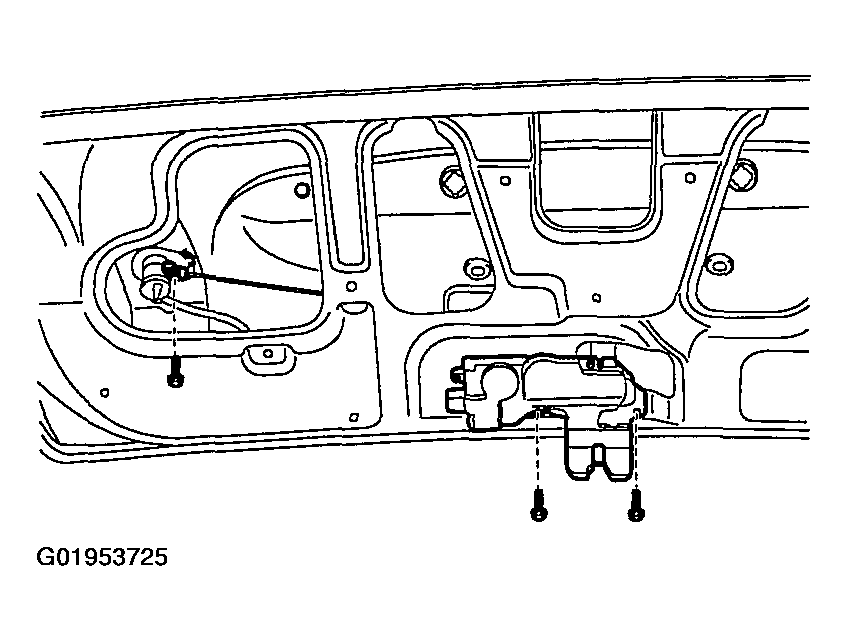

  Fig 1: Removing Trunk Lid Latch Mounting Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect key cylinder rod.
3. Disconnect actuator connector and wire harness clip.
4. Remove trunk lid latch.

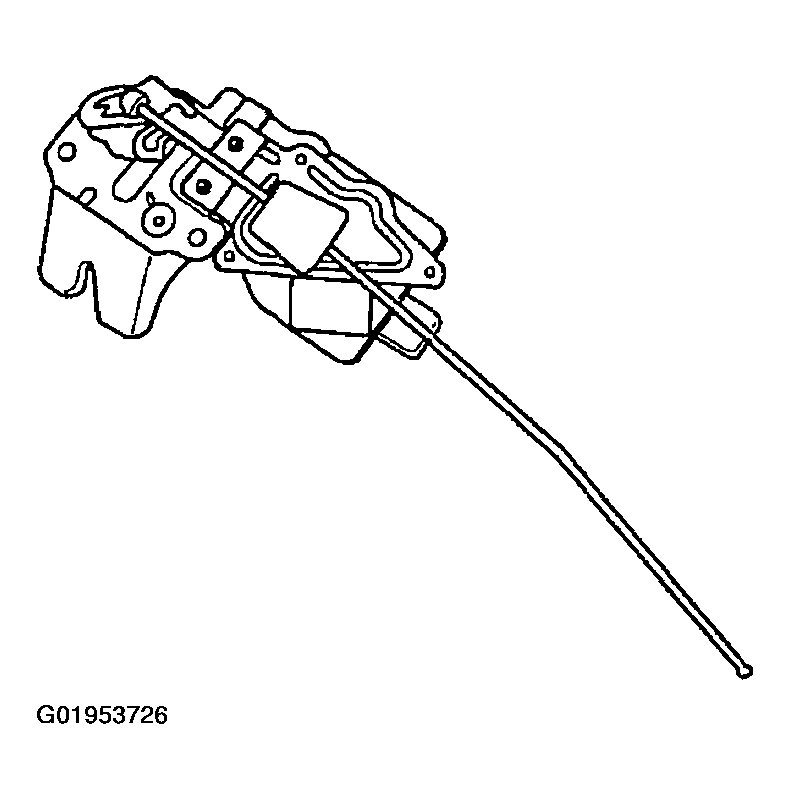

Fig 2: Removing Trunk Lid Latch
Courtesy of KIA MOTORS AMERICA, INC.
Remove trunk lid key cylinder.
1. Remove key cylinder mounting bolt.

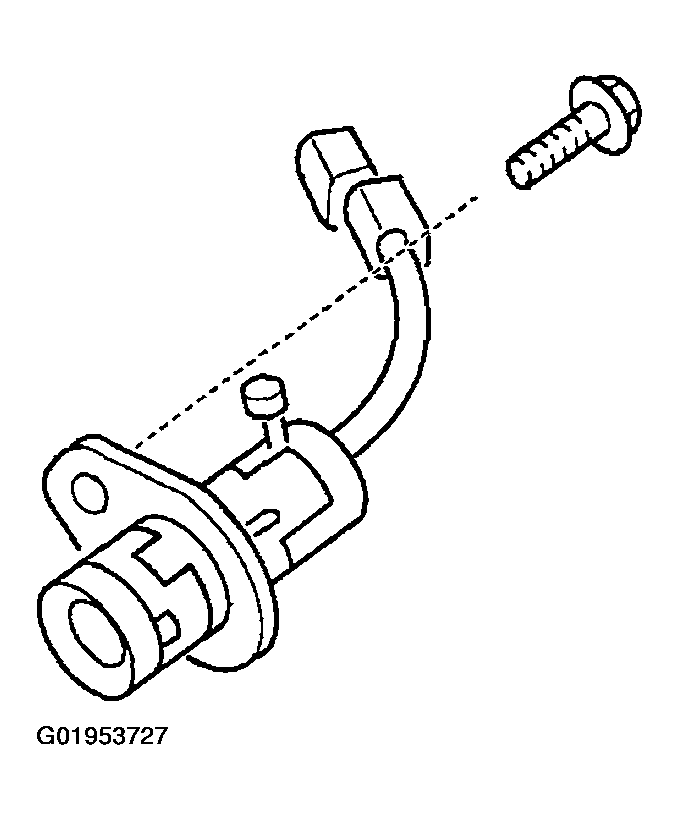

  Fig 3: Removing Key Cylinder Mounting Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect key cylinder connector and wire harness clip.
3. Remove key cylinder.
Remove license garnish lamp.
1. Remove license garnish lamp mounting nuts (2) and bolt.

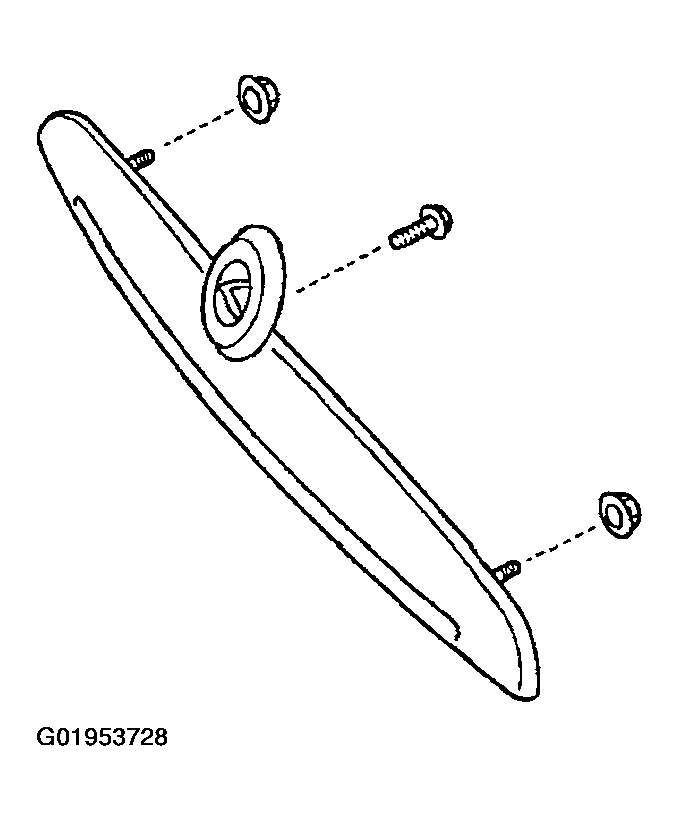

  Fig 4: Removing License Garnish Lamp Mounting Nuts And Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect license garnish lamp connector and wire harness clip.
3. Remove license garnish lamp.
Install in reverse order of removal.
