Remove instrument cluster.

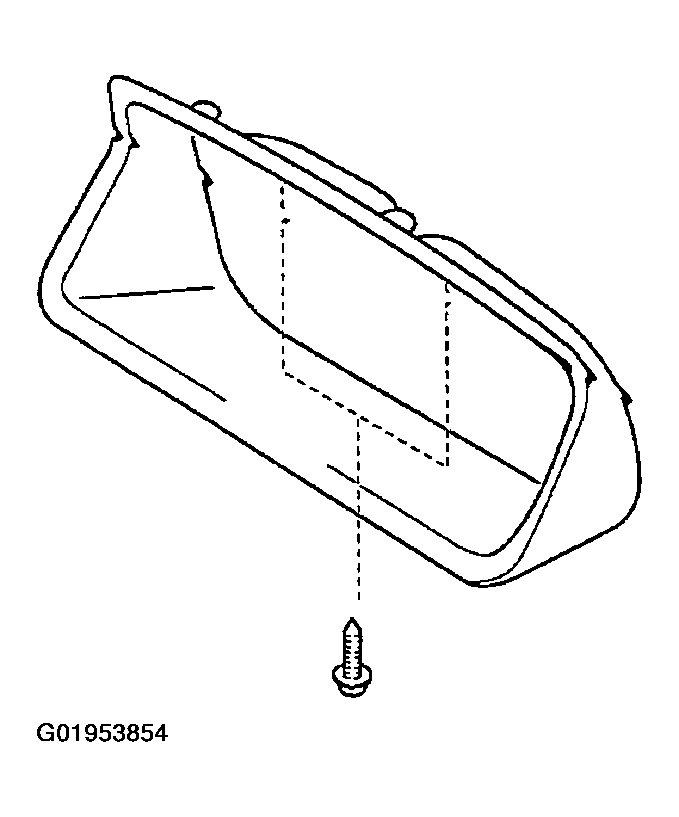

1. Remove cluster fascia panel screws (2).

  Fig 1: Removing Cluster Fascia Panel Screws
  Courtesy of KIA MOTORS AMERICA, INC.
2. Remove cluster fascia panel.

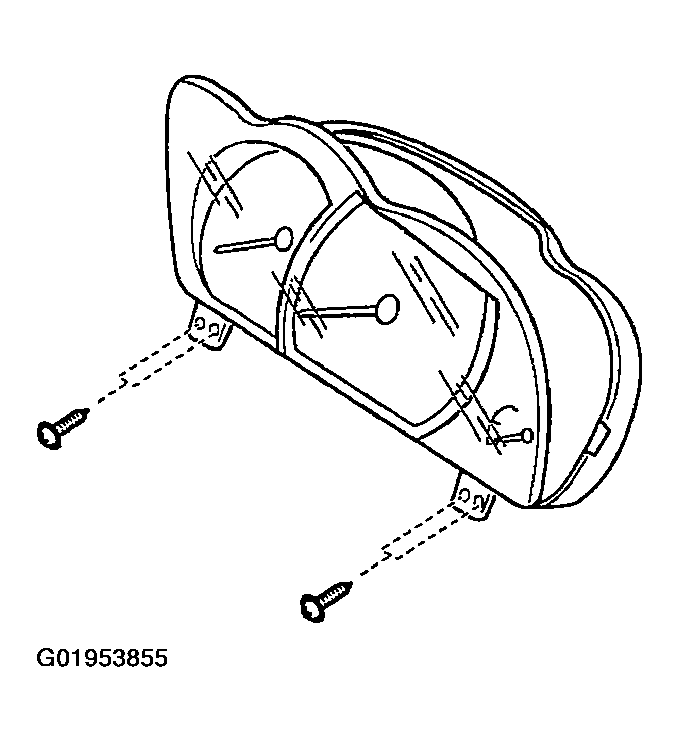

3. Remove instrument cluster screws (4).

  Fig 2: Removing Instrument Cluster Screws
  Courtesy of KIA MOTORS AMERICA, INC.

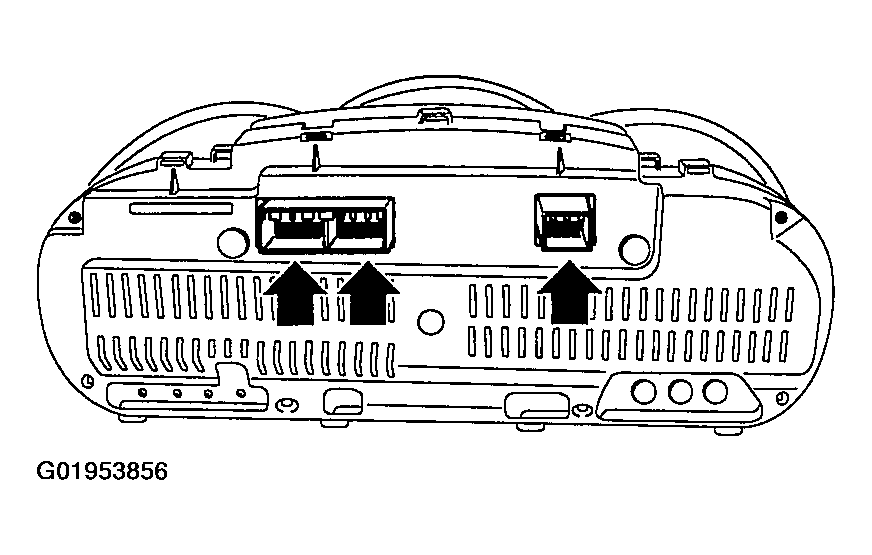

4. Disconnect instrument cluster connector.
Fig 3: Disconnecting Instrument Cluster Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove heater control assembly and center fascia panel.
1. Remove center fascia panel from instrument panel.

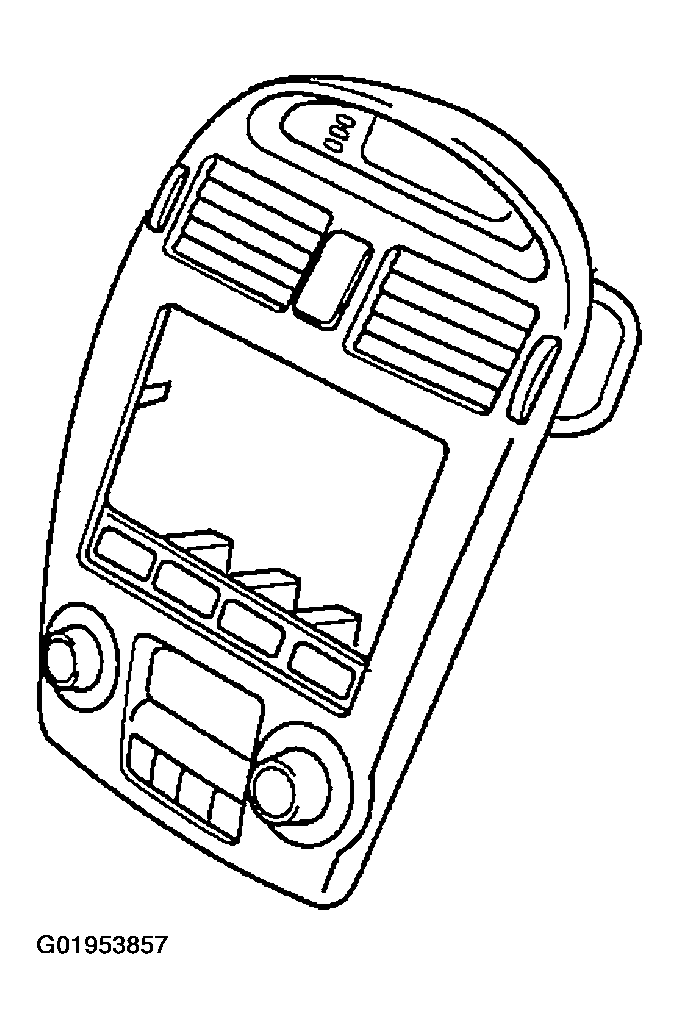

  Fig 4: Removing Center Fascia Panel From Instrument Panel
  Courtesy of KIA MOTORS AMERICA, INC.

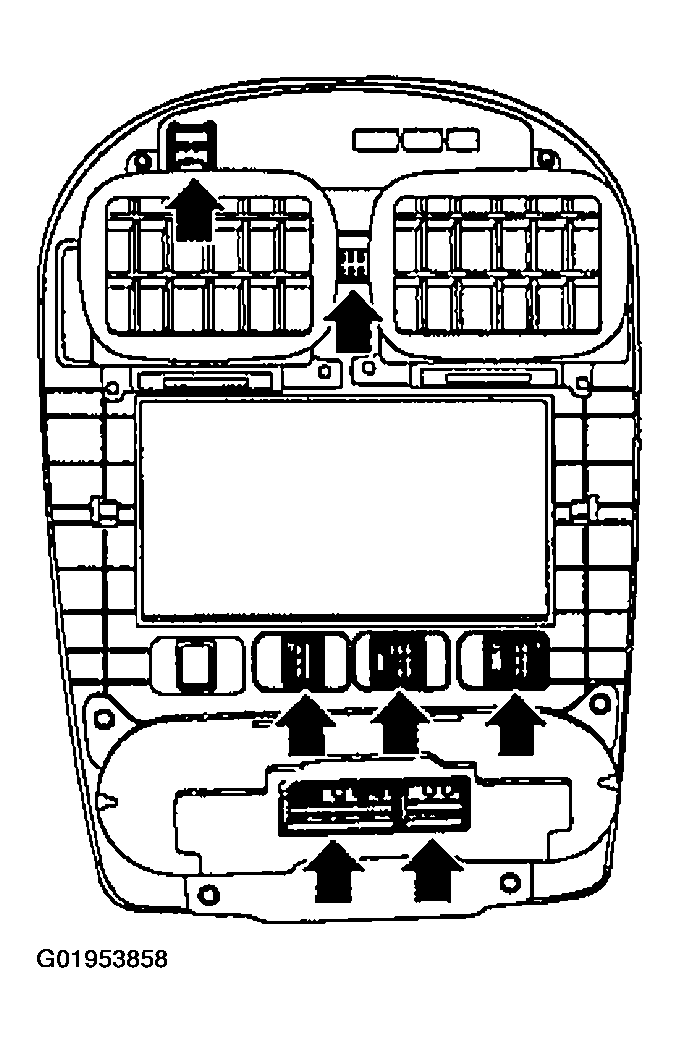

2. Disconnect center fascia panel connector.

  Fig 5: Disconnecting Center Fascia Panel Connector
  Courtesy of KIA MOTORS AMERICA, INC.

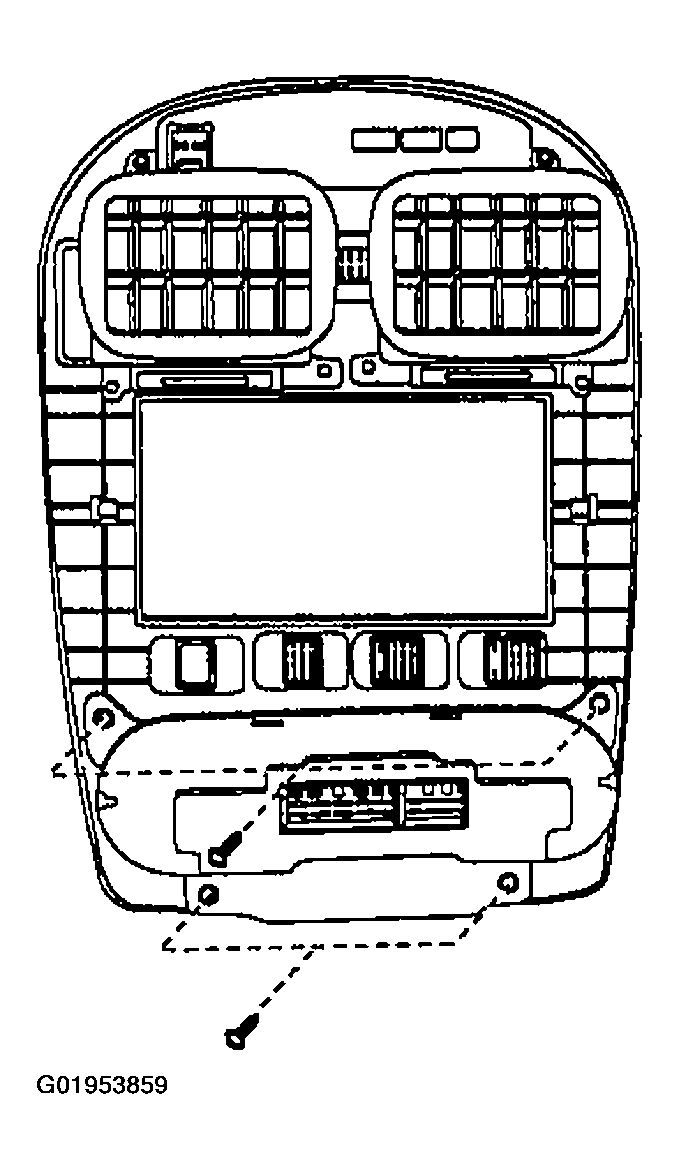

3. Remove heater control assembly screws (4).

  Fig 6: Removing Heater Control Assembly Screws
  Courtesy of KIA MOTORS AMERICA, INC.
4. Remove heater control assembly.
Remove audio.

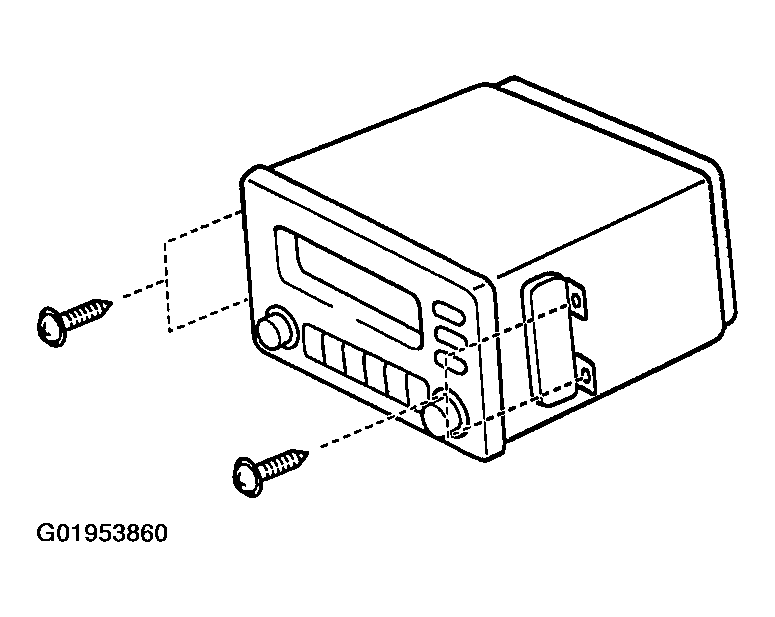

1. Remove screws (4).

  Fig 7: Removing Screws
  Courtesy of KIA MOTORS AMERICA, INC.

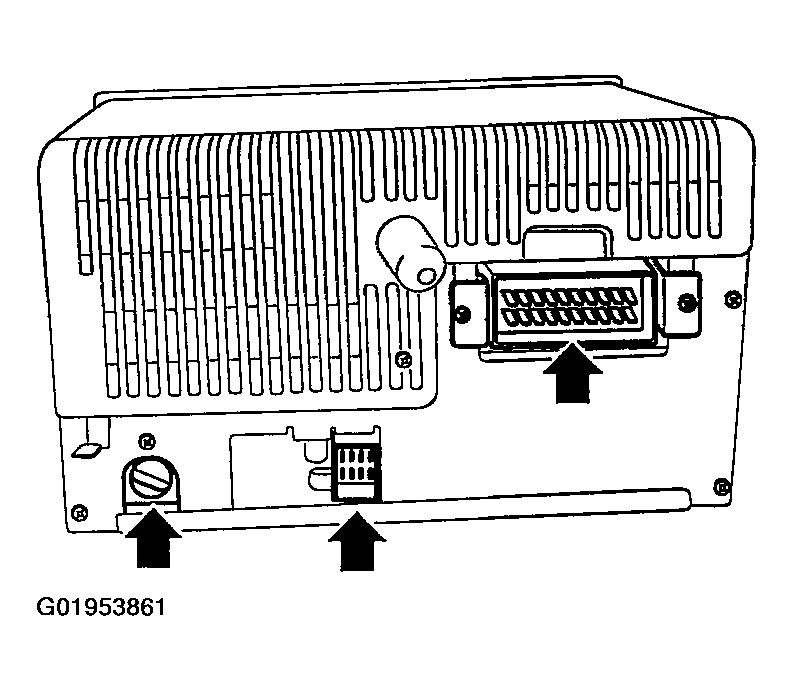

2. Disconnect electrical connector and antenna cable.

  Fig 8: Disconnecting Electrical Connector And Antenna Cable
  Courtesy of KIA MOTORS AMERICA, INC.
3. Remove audio from instrument panel.
Remove lower panel (RH).

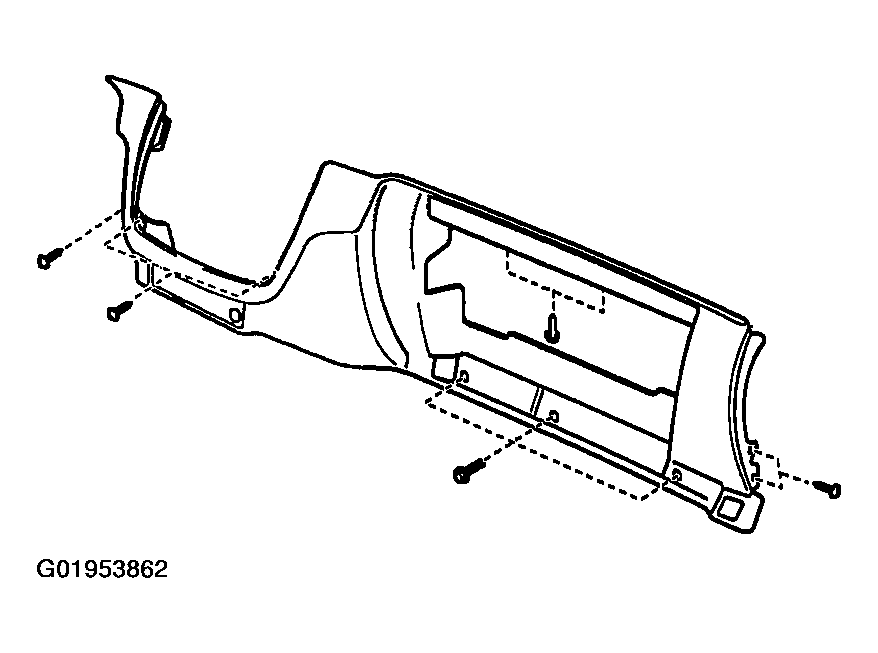

1. Remove bolts (3) and screws (7).

  Fig 9: Removing Bolts And Screws
  Courtesy of KIA MOTORS AMERICA, INC.

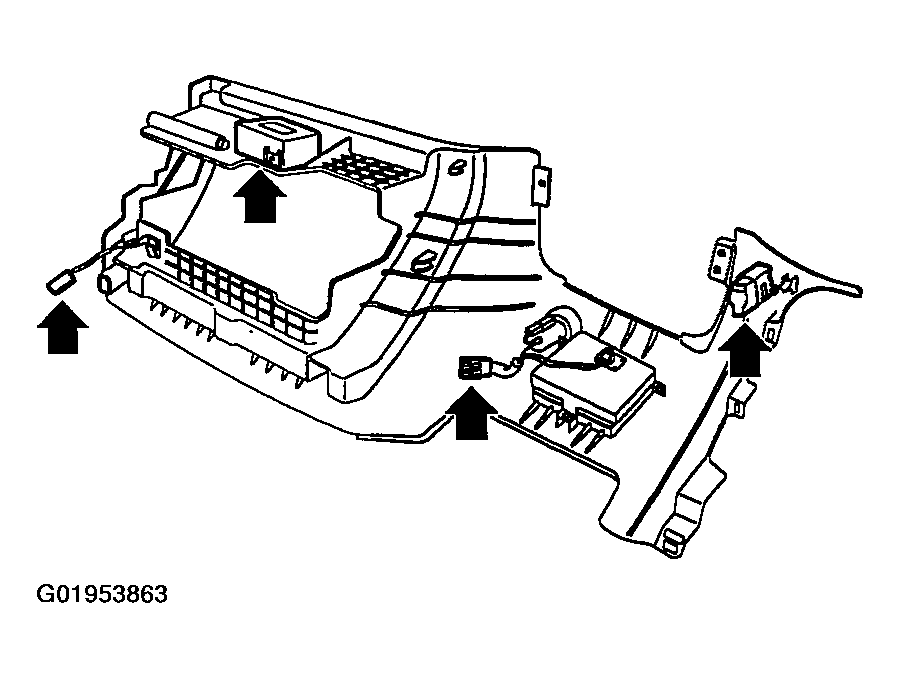

2. Disconnect electrical connector.

  Fig 10: Disconnecting Electrical Connector
  Courtesy of KIA MOTORS AMERICA, INC.
3. Remove lower panel from instrument panel.
Remove instrument fascia panel.

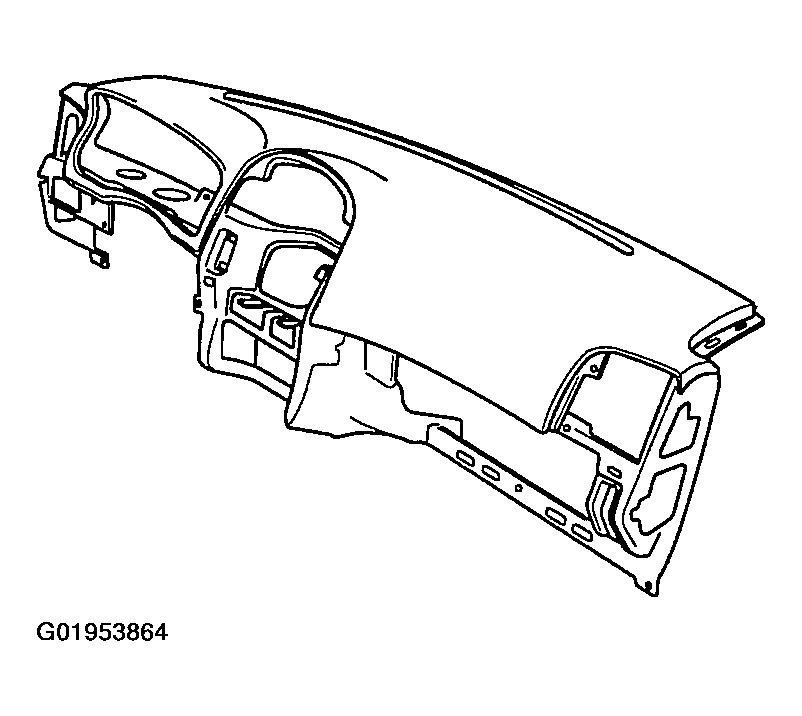

1. Remove mounting bolts (17).

  Fig 11: Removing Mounting Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect electrical connector.
3. Remove instrument fascia panel.
Install in reverse order of removal.
