Power Door Locks: Installation

  1. Install door lock assembly.
    1. Position it as originally positioned through access hole.
    2. Install three mounting screws.

      Tighten screws to 37~55 lb-in (4~6 N.m, 43~63 kg-cm)

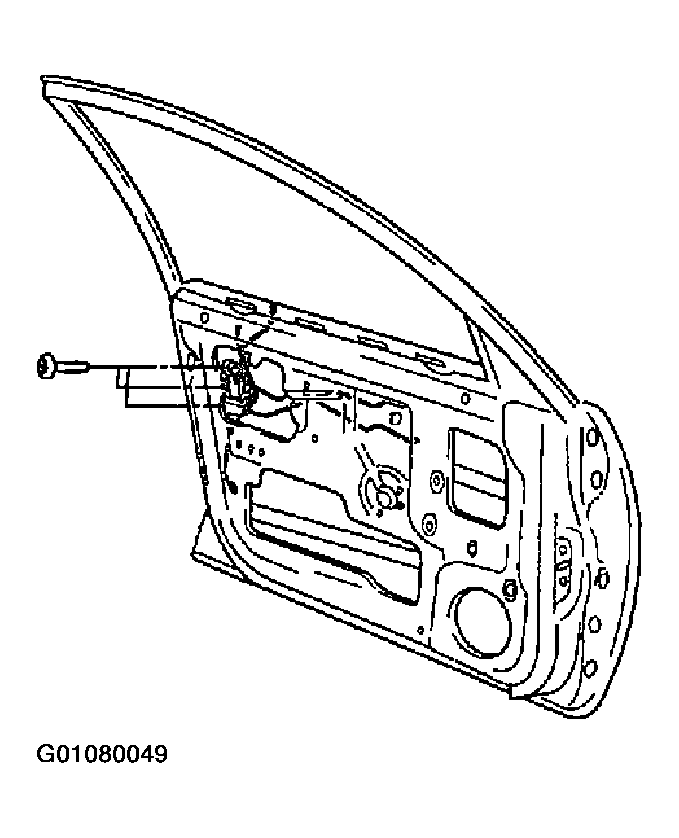

      Fig 1: Installing Door Lock Assembly
      G01080049Courtesy of KIA MOTORS AMERICA, INC.
  2. Install outside door handle.
    1. Install two mounting nuts.
      Fig 2: Installing Outside Door Handle
      G01080050Courtesy of KIA MOTORS AMERICA, INC.
  3. Install plastic door screen.
    1. Fasten plastic door screen.
    2. Pull out electrical harness connector from plastic door screen.
    3. Pull out remote control rod for inside door handle through plastic door screen.
  4. Install pull handle bracket with one mounting screw.
  5. Install door trim.
  6. Connect power window switch connector.
    Fig 3: Connecting Power Window Switch Connector
    G02536912Courtesy of KIA MOTORS AMERICA, INC.
  7. Place front door trim.
  8. Install inside door handle cover.
    Fig 4: Installing Inside Door Handle Cover
    G02536913Courtesy of KIA MOTORS AMERICA, INC.
  9. Install one screw on inside door handle cover.
  10. Install door handle pull.
  11. Install one screw on door handle pull.
  12. Press in front door trim.
  13. Install one screw at left side of door trim.
  14. Install two screws at right side of door trim.
    Fig 5: Installing Right Side Of Door Trim
    G02536914Courtesy of KIA MOTORS AMERICA, INC.
  15. Install speaker garnish.
    Fig 6: Installing Speaker Garnish
    G02536915Courtesy of KIA MOTORS AMERICA, INC.
  16. Fasten door trim.
  17. Install inner weatherstrip.
  18. Connect negative battery cable.
