Line Pressure Test: Preparation

This test measures line pressure as a means of checking hydraulic components and inspecting for oil leakage.

Preparation

1. Perform preparation procedure outlined in Stall Test.
2. Remove splash shield under front left bumper.
3. Connect SST (0K201 190 AA0/K94A-4214-AT)  to line pressure inspection port (square-head "L" plug). it may be necessary to raise car to get at inspection port.

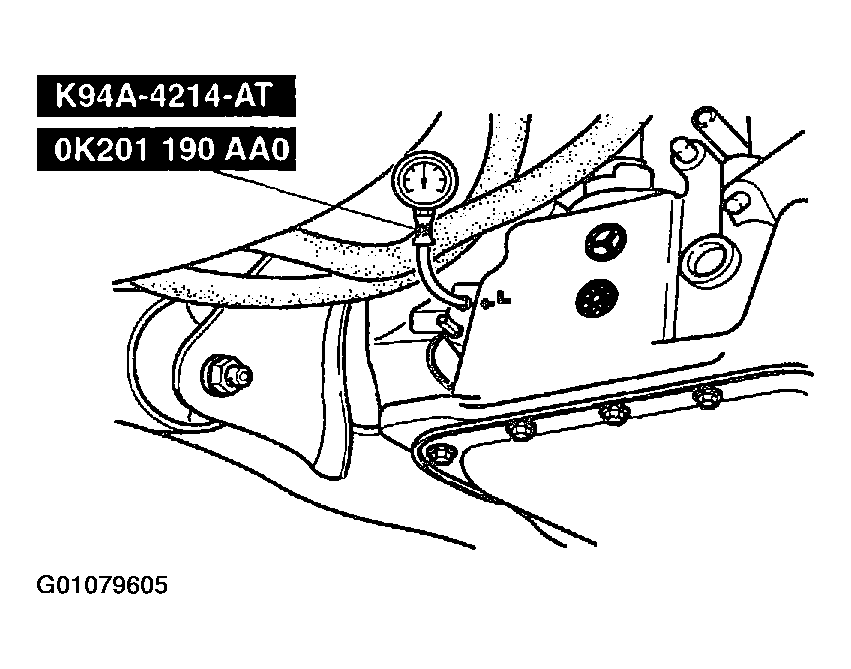

   Fig 1: Connecting Service Tool

   Courtesy of KIA MOTORS AMERICA, INC.
