After-Repair Procedure

  1. Cancel diagnostic trouble code memory by using SST (0K2CA 089 HSP) or diagnostic scan tool.
  2. Remove SST (0K2CA 089 HSP) or diagnostic scan tool  from OBD-II data link connector.

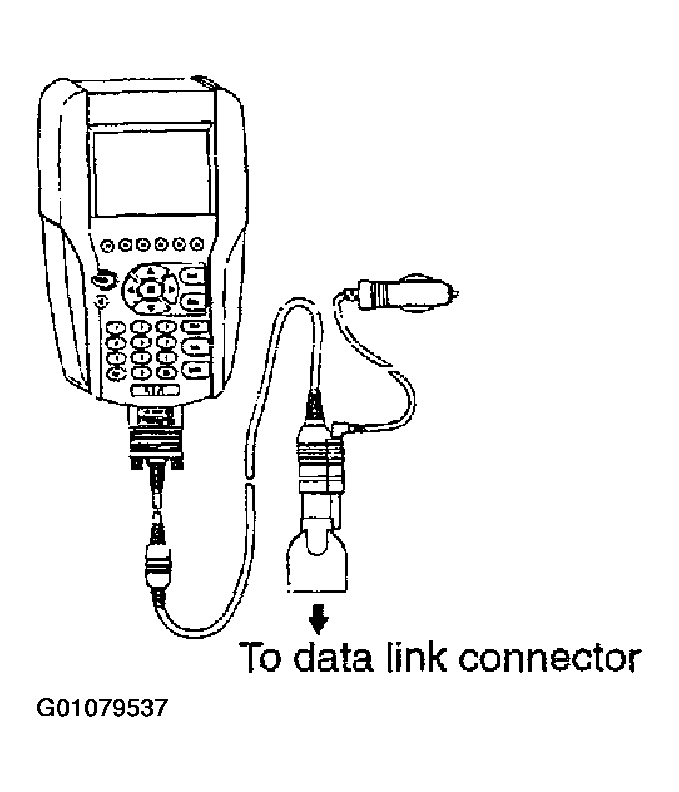

    Fig 1: Illustrating Diagnostic Scan Tool
    G01079537Courtesy of KIA MOTORS AMERICA, INC.
  3. Drive vehicle at 31 mph (50 km/h), and depress accelerator pedal fully to activate kickdown. Stop vehicle gradually.
  4. Connect SST (0K2CA 089 HSP) or diagnostic scan tool  to OBD-II data link connector.
  5. Turn ignition switch ON.
  6. Verify that no diagnostic trouble codes are displayed.
  7. Remove SST (0K2CA 089 HSP) or diagnostic scan tool  from OBD-II data link connector.

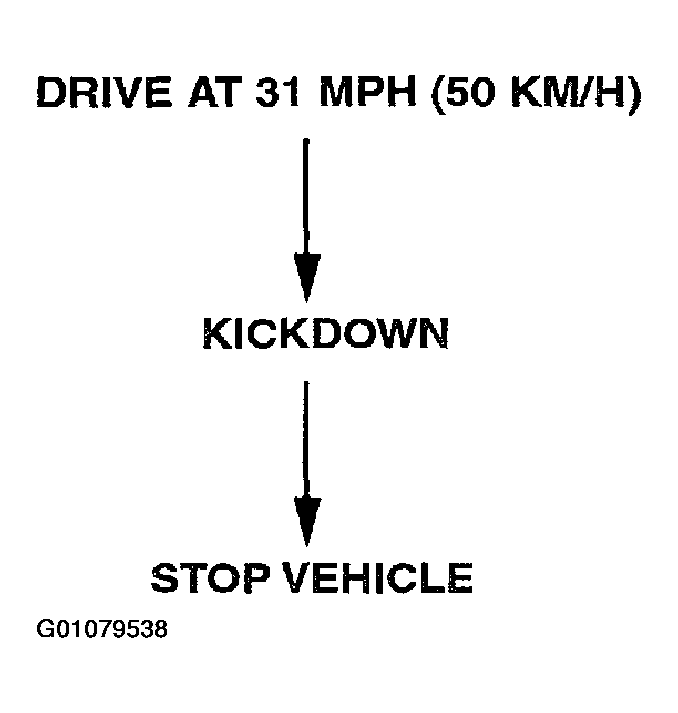

Fig 2: Code Verification Drive
G01079538Courtesy of KIA MOTORS AMERICA, INC.
