Clutch Operation

  1. Set reverse/forward clutch assembly onto oil pump.
  2. Check clutch operation by applying compressed air through fluid passages shown.

    Applied air pressure: 57 psi (392 kPa, 4.0 kg/cm 2  ) maximum

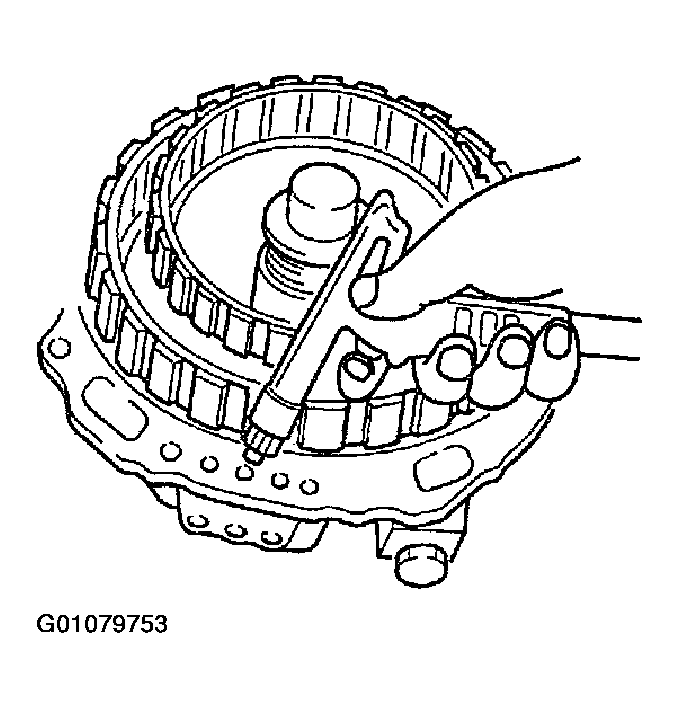

    Fig 1: Testing Reverse/Forward Clutch Assembly
    G01079753Courtesy of KIA MOTORS AMERICA, INC.
