Oil Pump: Removal

  1. Remove bearing race.
  2. Remove four seal rings.
  3. Loosen six mounting bolts evenly in pattern shown and remove oil pump cover from oil pump housing.

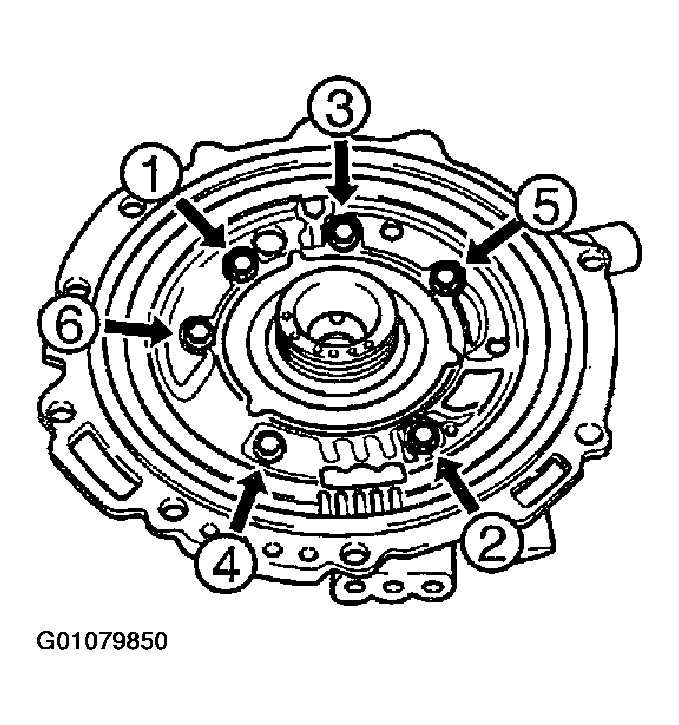

    Fig 1: Removing Oil Pump Cover
    G01079850Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Do not  use a punch to mark outer and inner rotors.
  4. Mark outer and inner rotors as shown, and separate them from oil pump housing.
  5. Remove plug; then remove washer, spring and fluid pressure bypass valve.

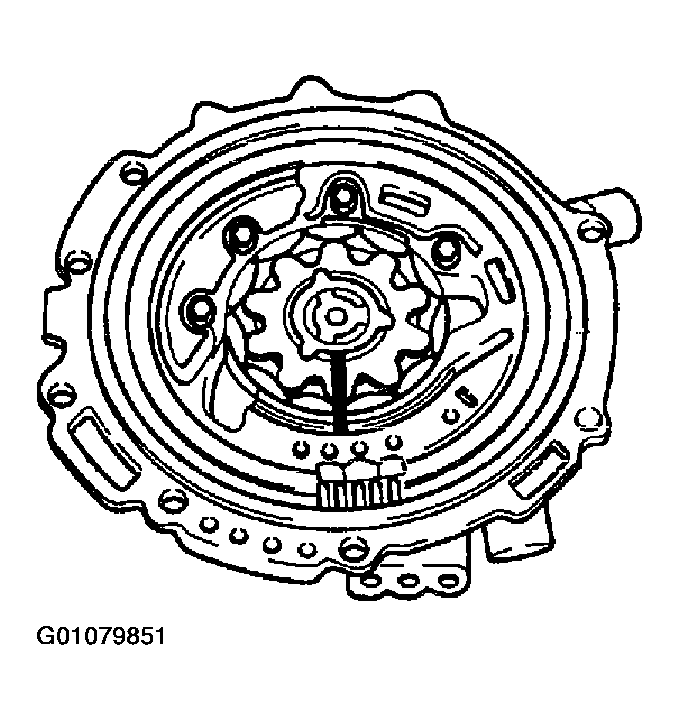

    Fig 2: Marking Outer And Inner Rotors
    G01079851Courtesy of KIA MOTORS AMERICA, INC.
