Low And Reverse Brake: Disassembly

  1. Remove snap ring.
  2. Remove retaining plate.
  3. Remove drive plates and driven plates (four of each.
  4. Install SST (0K201 190 AA1)  in transaxle case as shown.
  5. Compress spring and retainer assembly.
  6. Remove snap ring.
  7. Remove SST (0K201 190 AA1),  then remove spring and spring retainer assembly.

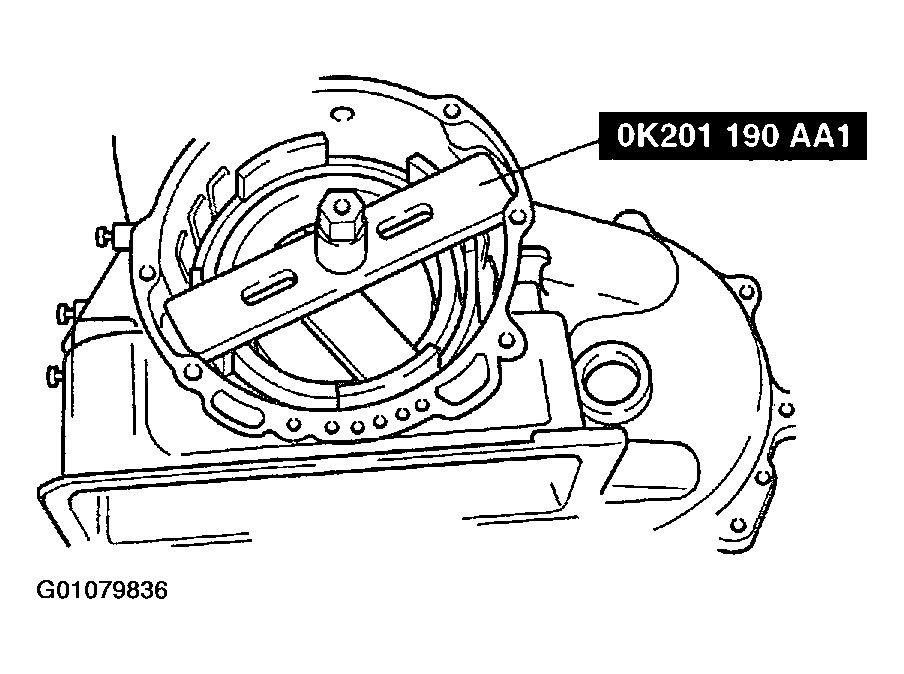

    Fig 1: Compressing Low And Reverse Brake Spring And Retainer Assembly
    G01079836Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove low and reverse brake piston by applying compressed air through fluid passage.

    Air pressure: 57 psi (392 kPa, 4.0 kg/cm 2  )

  9. Remove outer seal and inner seal from low and reverse brake piston.

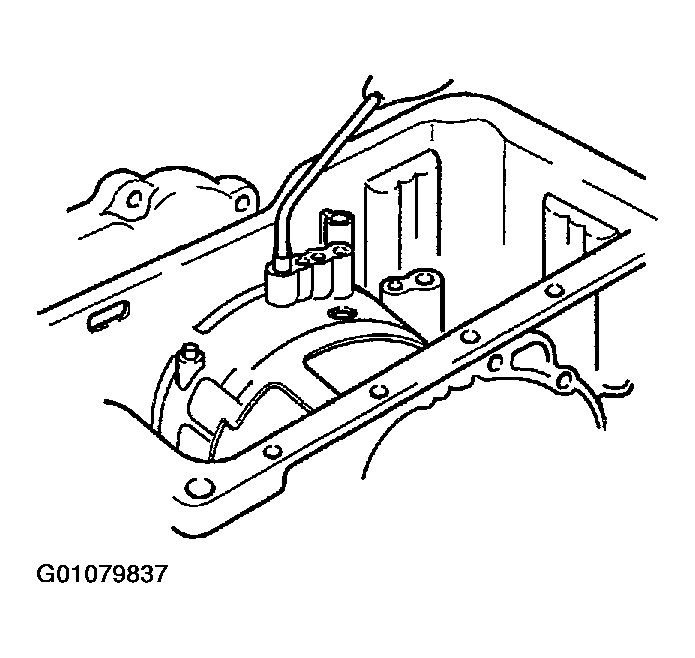

    Fig 2: Removing Low And Reverse Brake Piston
    G01079837Courtesy of KIA MOTORS AMERICA, INC.
