Home >> Kia >> 2003 >> Spectra GSX, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis & Overhaul >> Components >> Low And Reverse Brake >> Component

Low And Reverse Brake: Component

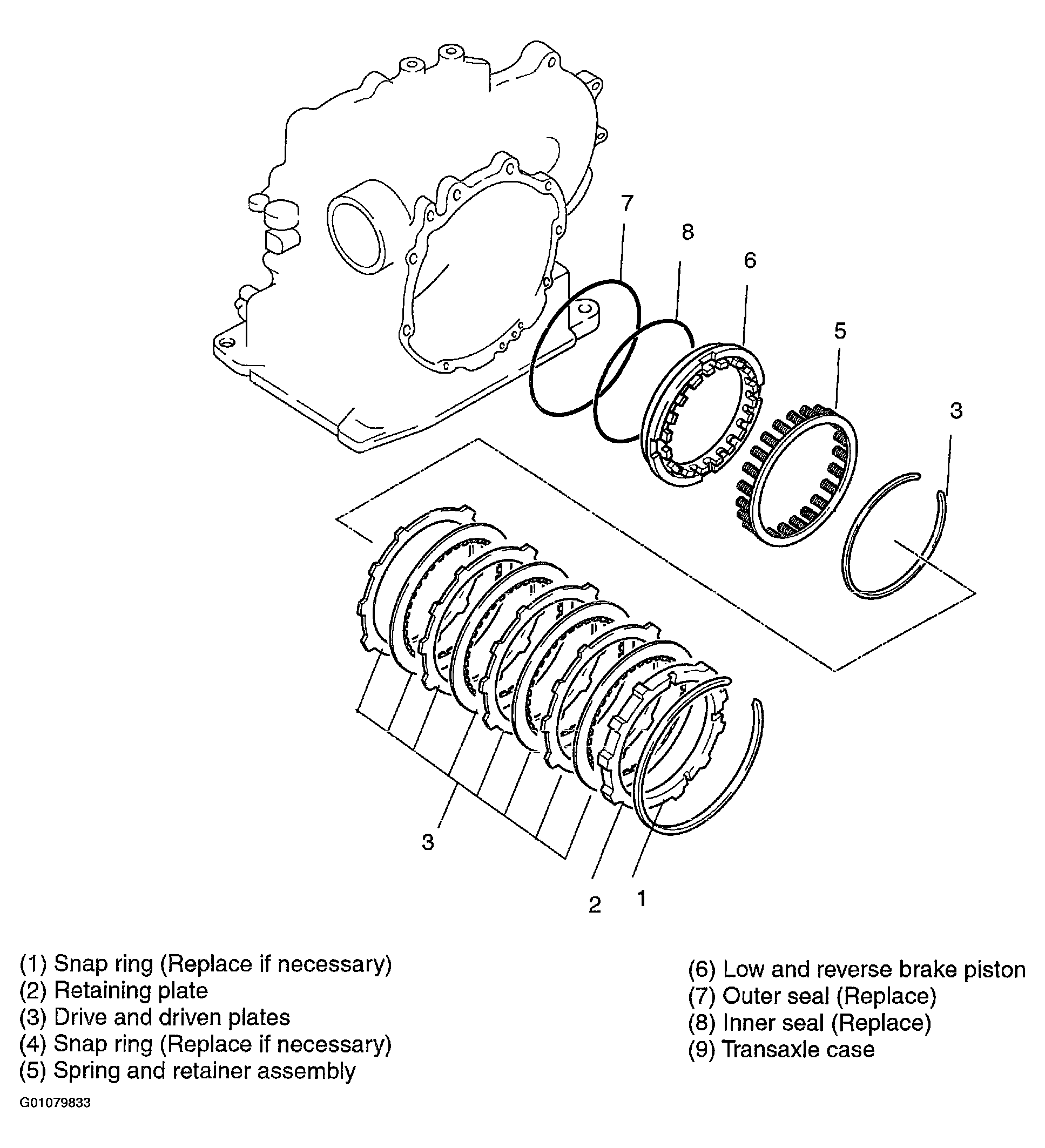

Fig 1: Illustrating Low And Reverse Brake Components

G01079833

Courtesy of KIA MOTORS AMERICA, INC.
