Automatic Transaxle Oil Cooler: Installation

Install radiator. See COOLING SYSTEM .
Install ATF inlet pipe and outlet pipe.
Tightening torque: 24-84 lb.ft (32-47 N.m, 3.3-4.8 kg.m)
Slide ATF inlet and outlet hose onto ATF cooler pipe until it is fully seated against the ridge.
Install hose clamp onto hose at center of mark and at angle shown.
Verify that the hose clamp does not interfere with any other parts.

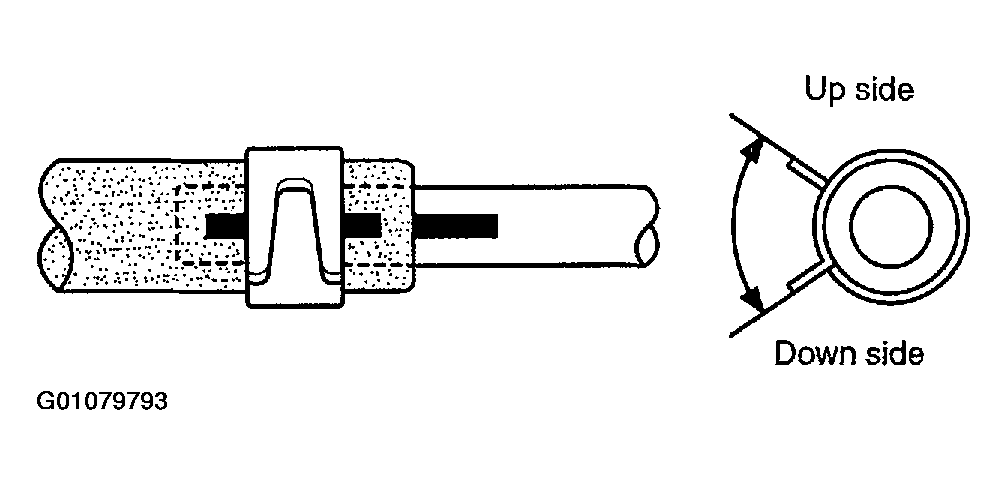

Fig 1: Installing Hose Clamp
Courtesy of KIA MOTORS AMERICA, INC.
Install RH side gravel shield under engine.
Lower vehicle.
Check ATF level. See AUTOMATIC TRANSAXLE FLUID (ATF) .
