Automatic Transaxle Oil Cooler: Component

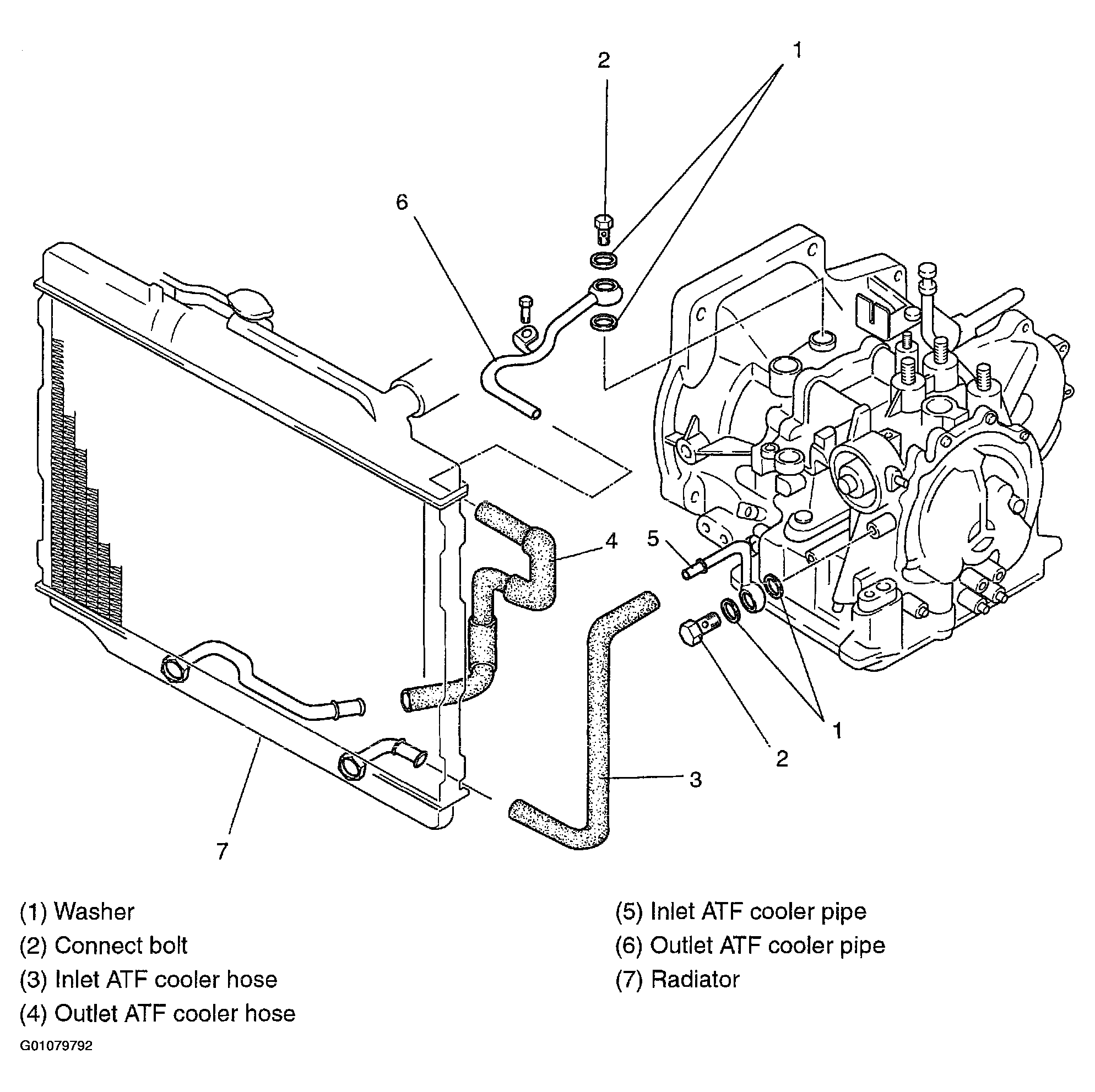

Fig 1: Illustrating Automatic Transaxle Oil Cooler Components

G01079792

Courtesy of KIA MOTORS AMERICA, INC.
