Resistance Inspection

  1. Disconnect negative battery cable.
  2. Disconnect solenoid valve connector.
  3. Measure resistance between ground and terminal 3 of connector.

    Resistance: 4.1-5.1 ohms

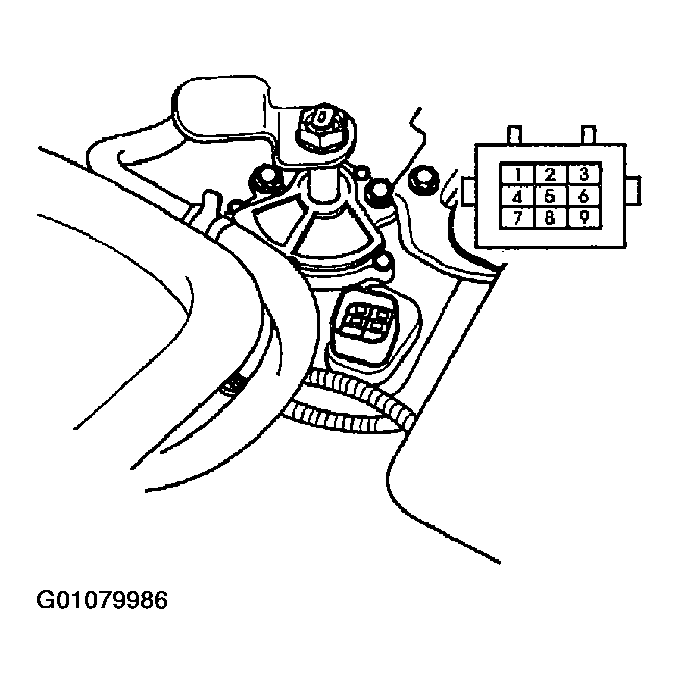

    Fig 1: Measuring Linear Solenoid Valve Resistance
    G01079986Courtesy of KIA MOTORS AMERICA, INC.
  4. If not correct, check wiring for an open or short-circuit, replace pressure control valve.
  5. Connect solenoid valve connector.
  6. Connect negative battery cable.
