Washer Nozzle: Removal

  1. Release holding clip by inserting a thin screwdriver between nozzle and bushing.
  2. Remove nozzle from hood and then disconnect nozzle from neoprene hose.

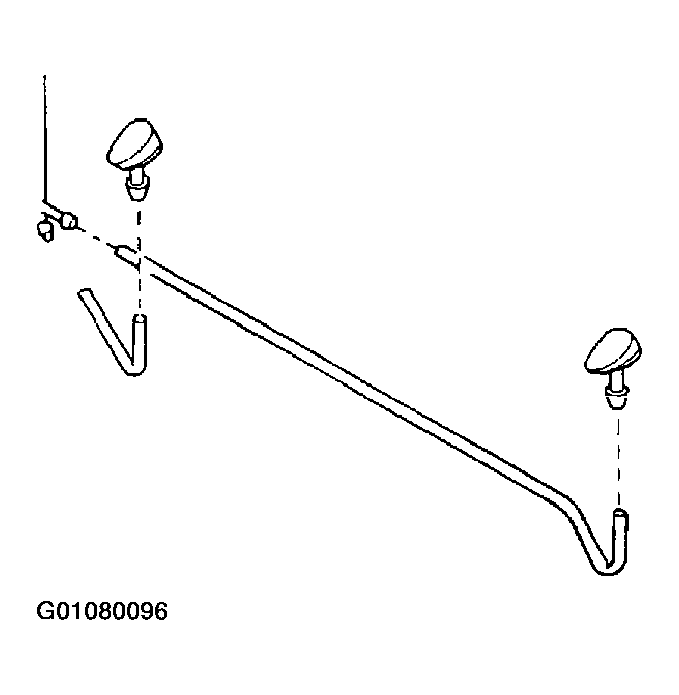

    Fig 1: Removing Washer Nozzle
    G01080096Courtesy of KIA MOTORS AMERICA, INC.
