Removal & Installation: Transmission: Notes

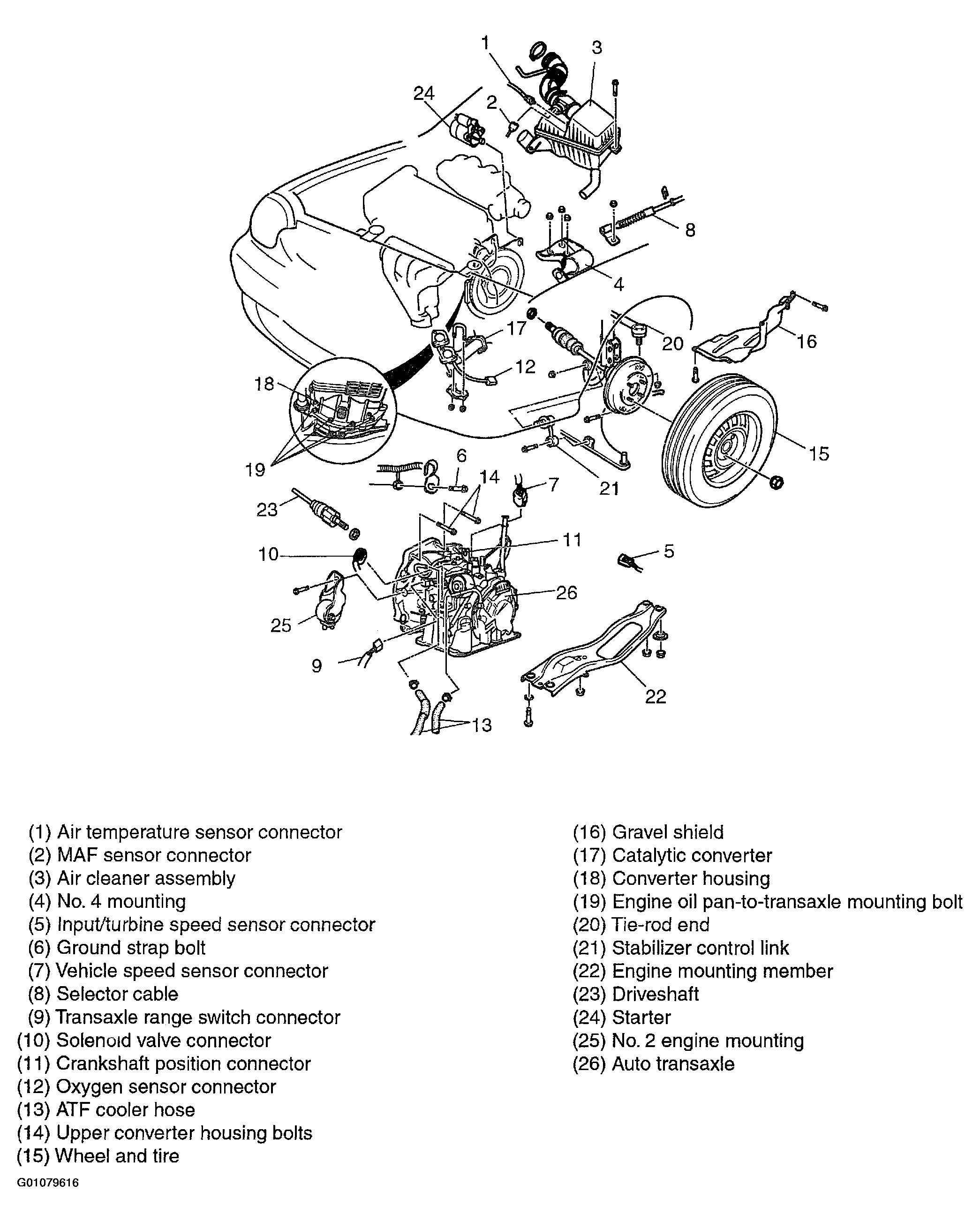

Fig 1: Illustrating Transaxle Removal Components

G01079616

Courtesy of KIA MOTORS AMERICA, INC.
