Shift Mechanism: Overhaul

  1. Disassemble in the order shown in the figure.
  2. Inspect all parts and repair or replace as necessary.
  3. Assemble in the reverse order of disassembly. Refer to Assembly note.

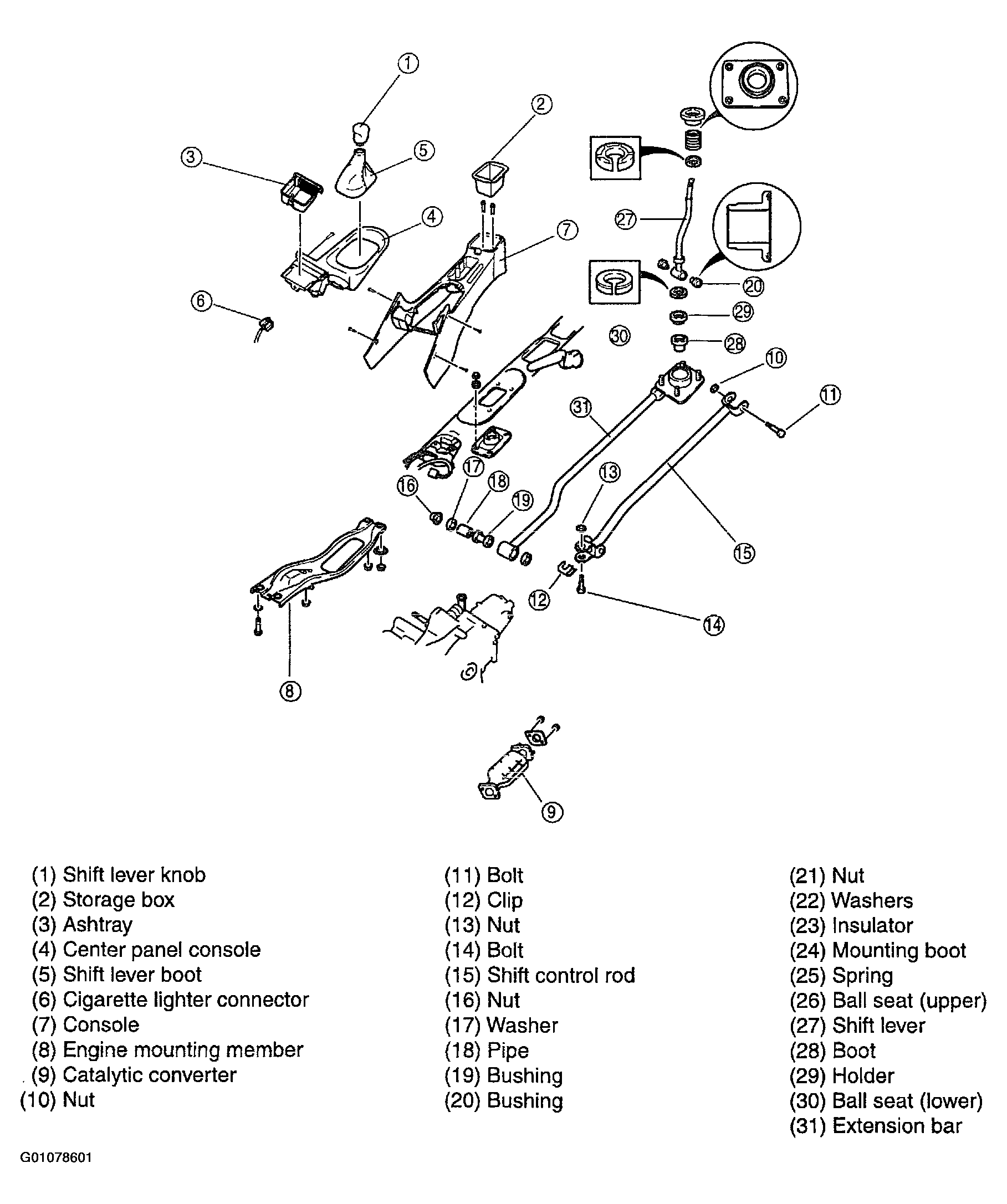

    Fig 1: Illustrating Manual Transaxle Shift Control Components
    G01078601Courtesy of KIA MOTORS AMERICA, INC.
