Clutch Housing And Transaxle Case Components: Notes

CAUTION: Do not  remove an oil seal if not necessary.
  1. Disassemble in order on figure. Refer to DISASSEMBLY NOTE  .
  2. Assembly will be in reverse order of disassembly.

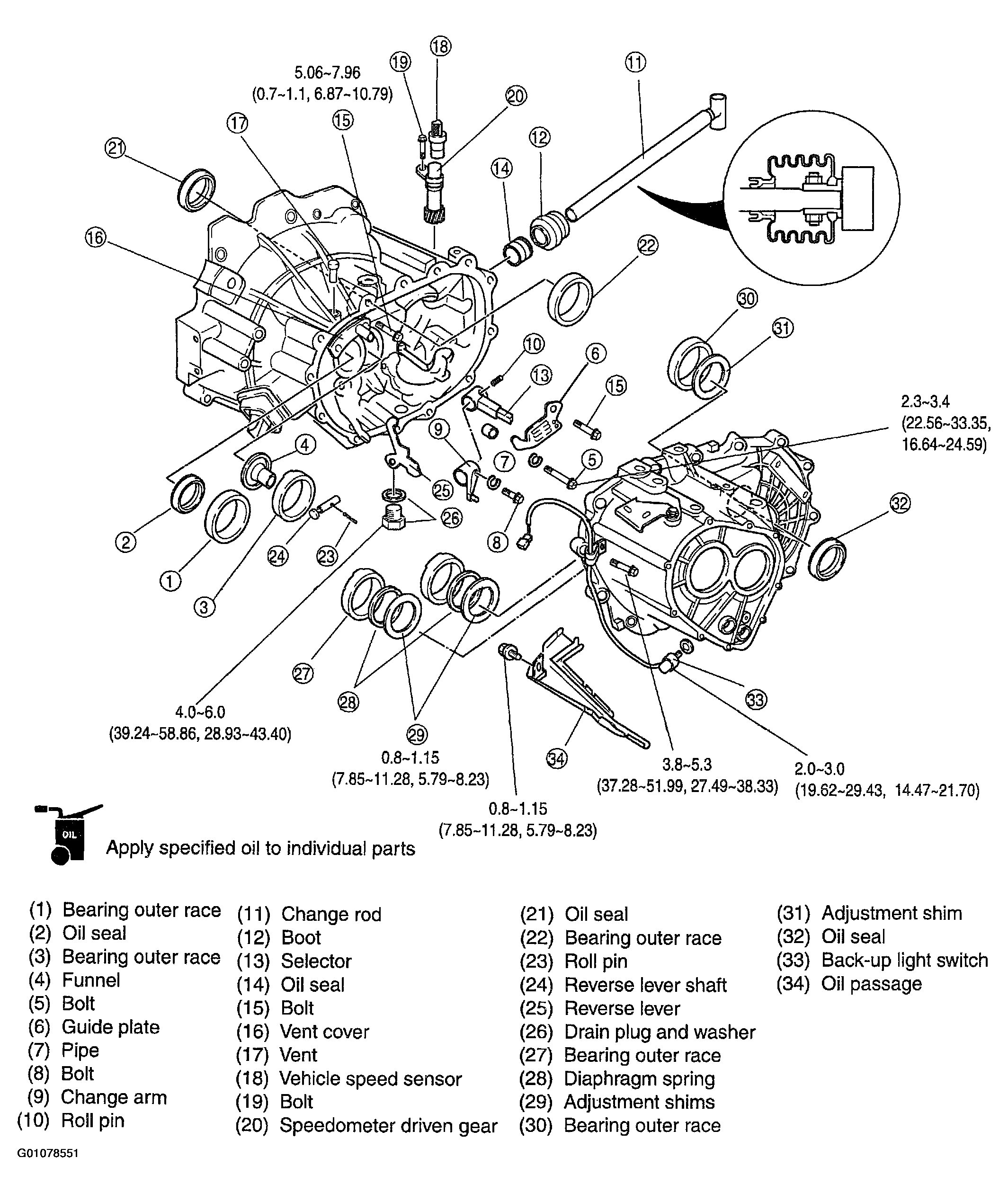

    Fig 1: Illustrating Clutch Housing And Transaxle Case Components
    G01078551Courtesy of KIA MOTORS AMERICA, INC.
