Secondary Shaft Assembly

  1. Measure thrust clearance of 1st gear and 2nd gear before disassembly. Refer to PREINSPECTION  .
  2. Disassemble in order shown in figure. Refer to DISASSEMBLY NOTE  .

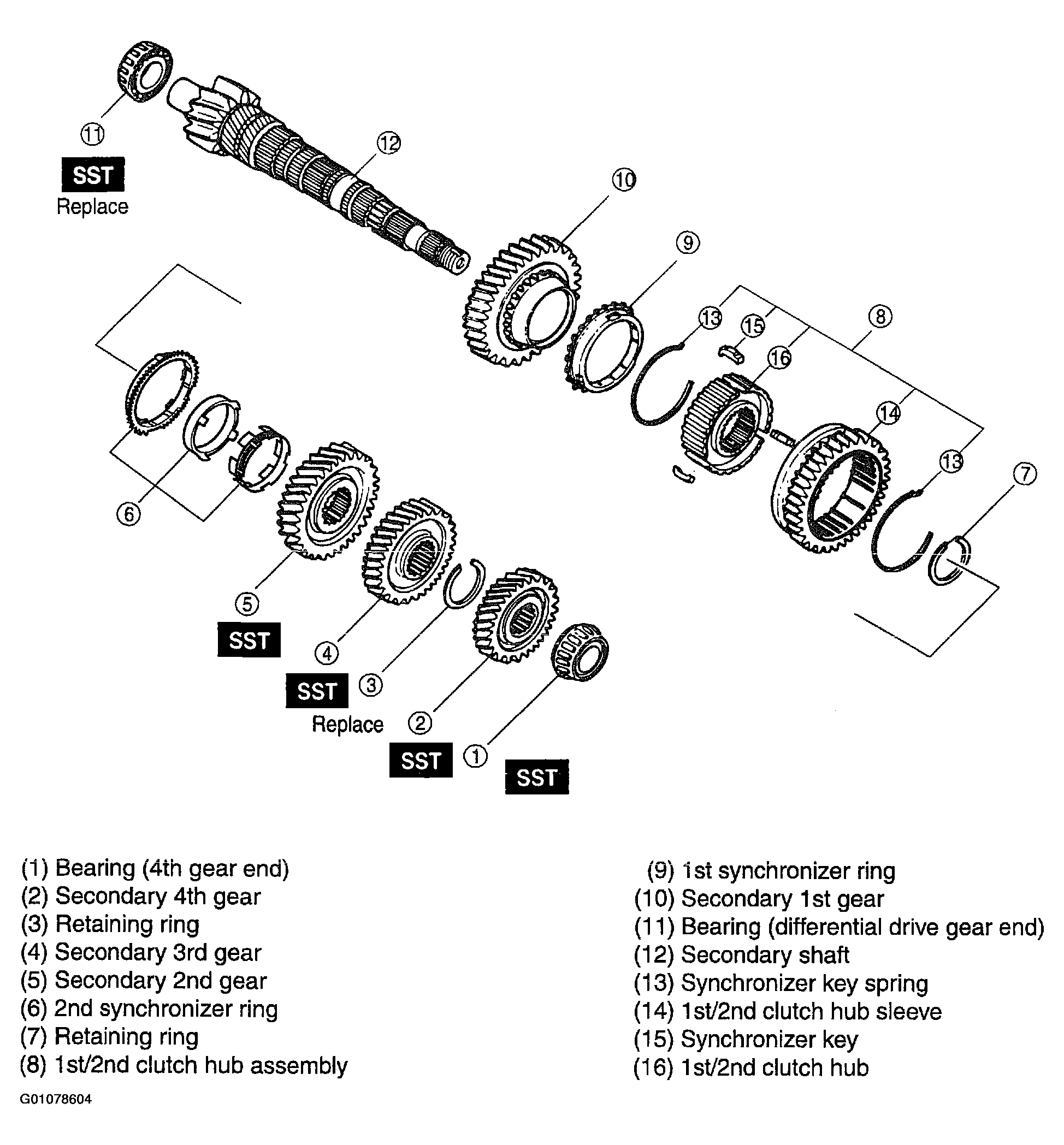

    Fig 1: Illustrating Output Shaft Components
    G01078604Courtesy of KIA MOTORS AMERICA, INC.
