Secondary Shaft Assembly

Assemble in order shown in figure. Refer to ASSEMBLY NOTE  .

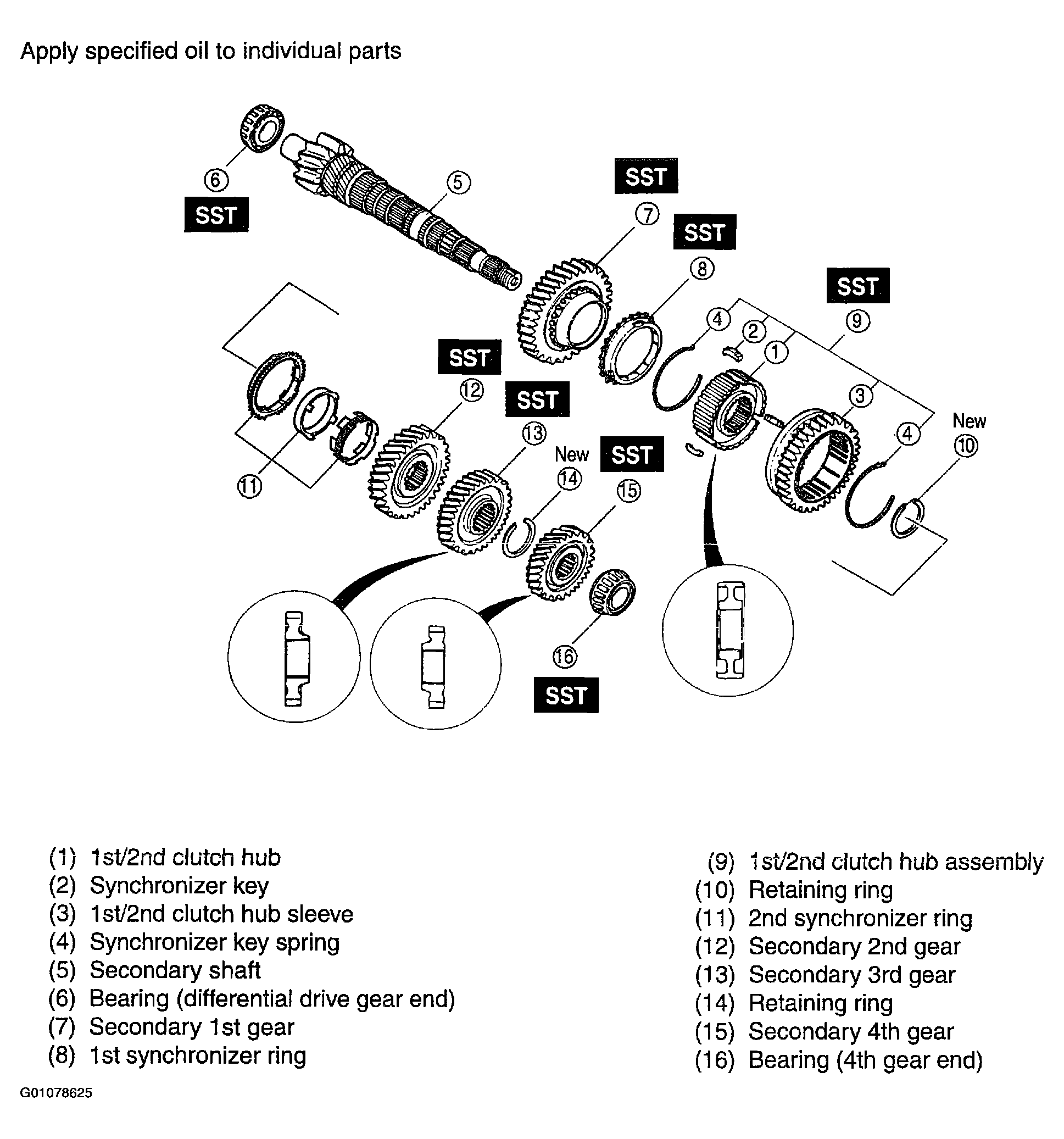

Fig 1: Illustrating Output Shaft Components
G01078625Courtesy of KIA MOTORS AMERICA, INC.
