SECONDARY 4th GEAR AND BEARING

Install secondary 4th gear and bearing by using SST (0K130 175 A13/0K011 270 A02/0K130 175 A11) .

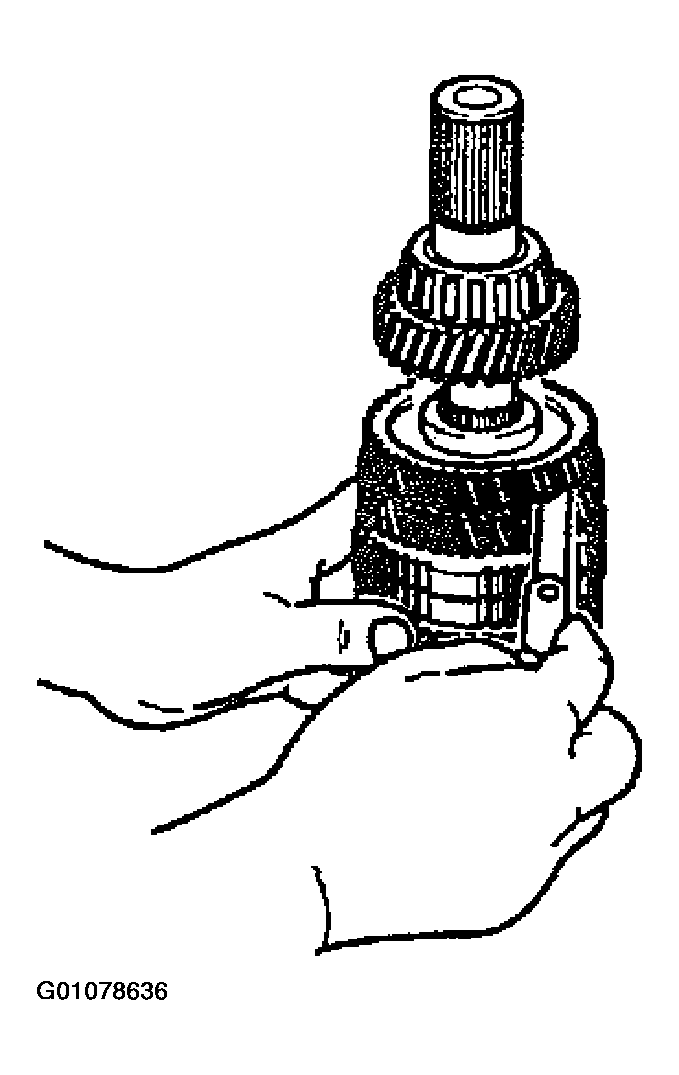

Fig 1: Installing Secondary 4th Gear And Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Measure clearance between 1st gear and differential drive gear.
Clearance: 0.002-0.011 in (0.05-0.28 mm)

Maximum: 0.013 in (0.33 mm)

Fig 2: Measuring Clearance Between 1st Gear And Differential Drive Gear
Courtesy of KIA MOTORS AMERICA, INC.
Measure clearance between secondary 2nd gear and secondary 3rd gear.
Clearance: 0.007-0.018 in (0.18-0.46 mm)

Maximum: 0.020 in (0.51 mm)
If not as specified, disassemble and reassemble secondary shaft assembly.

Fig 3: Measuring Clearance Between Secondary 2nd Gear And Secondary 3rd Gear
Courtesy of KIA MOTORS AMERICA, INC.
