Mechanical Power Steering System: Component

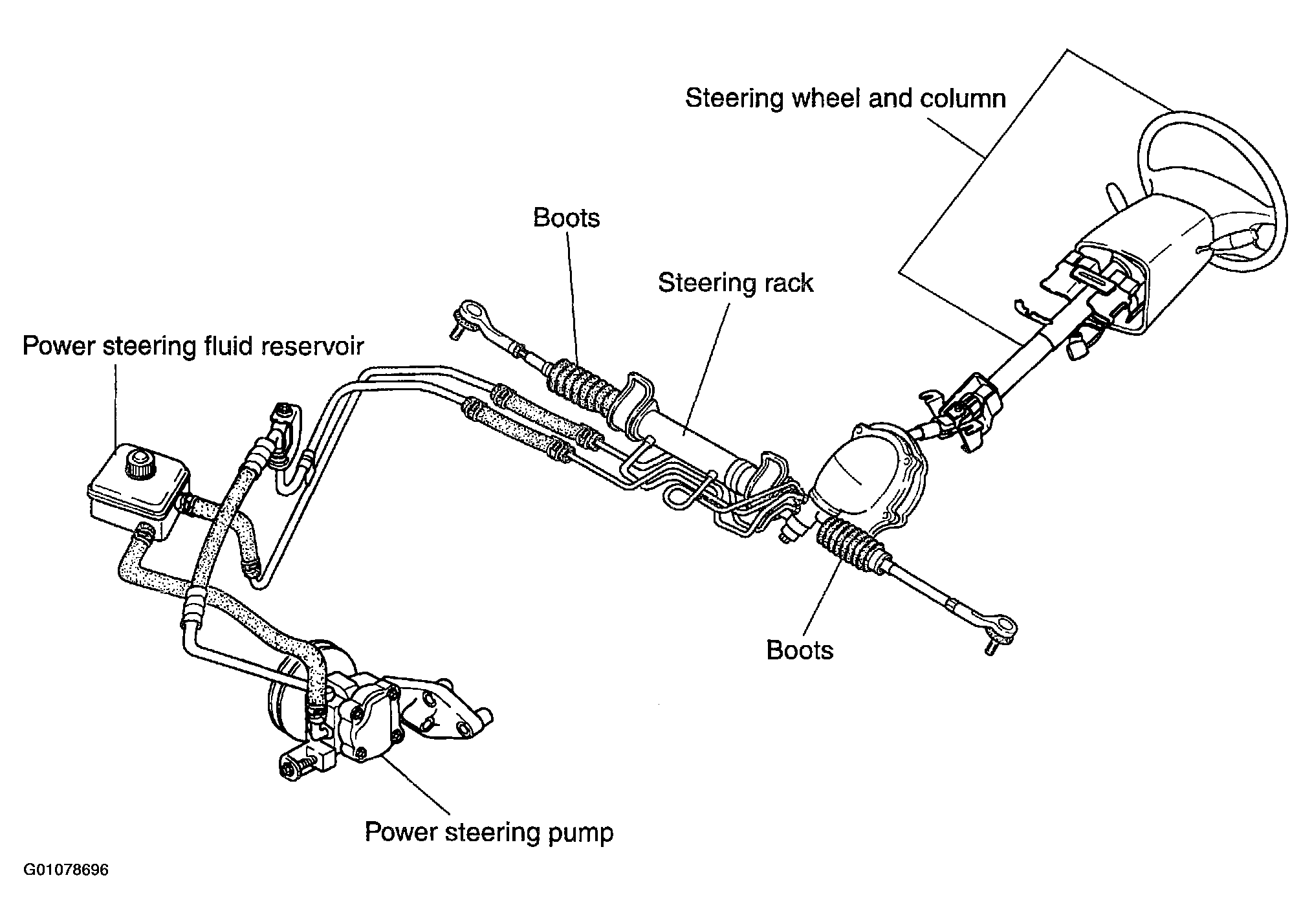

Fig 1: Illustrating Mechanical Power Steering System Components

G01078696

Courtesy of KIA MOTORS AMERICA, INC.
