LEMON Manuals
: Even more car manuals for everyone
Home
>>
Kia
>>
2003
>>
Spectra Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Diagnosis & Overhaul
>>
Troubleshooting
>>
Selector Lever
>>
Troubleshooting Guide
Troubleshooting Guide

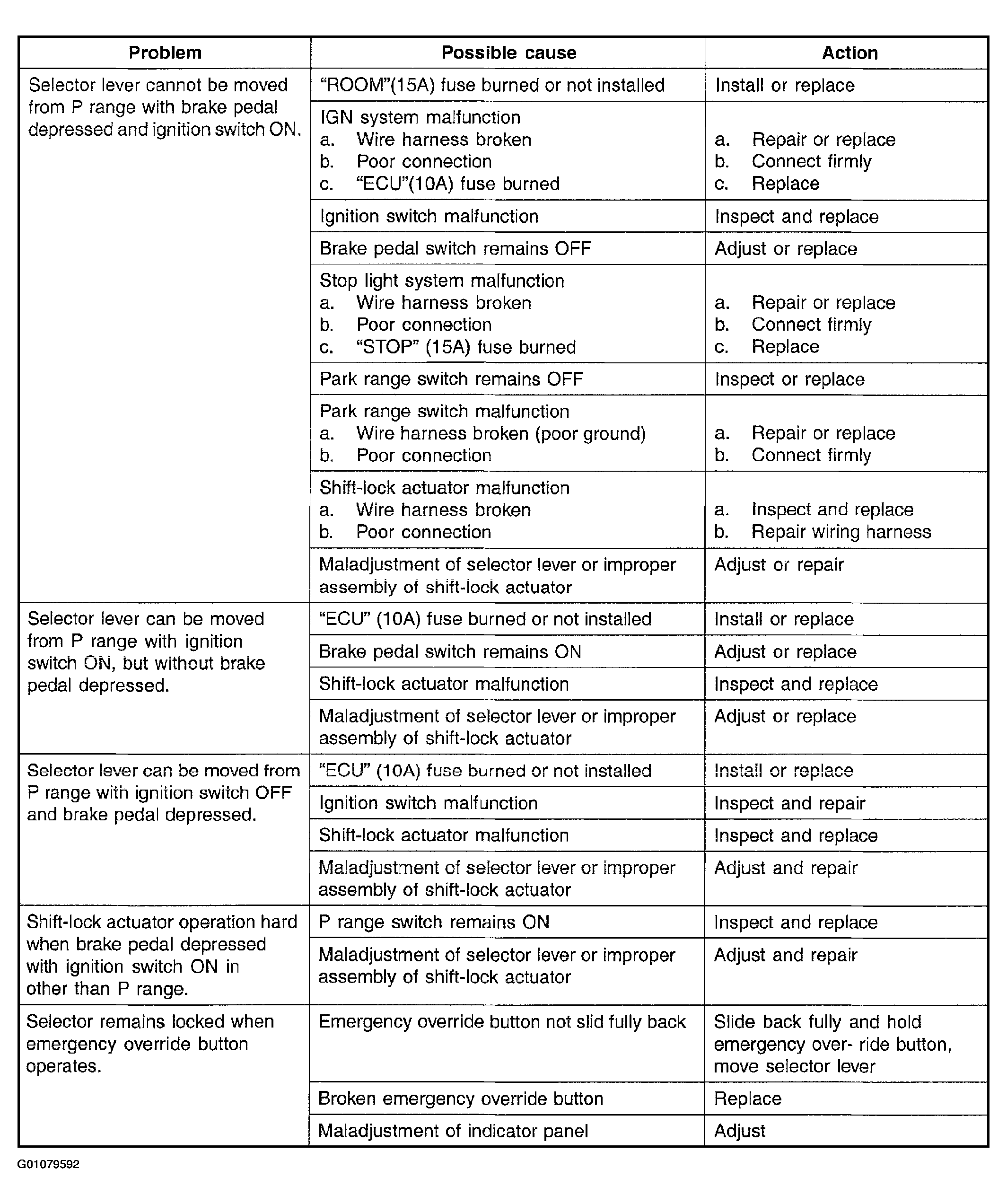

Fig 1: Selector Lever Troubleshooting Guide (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

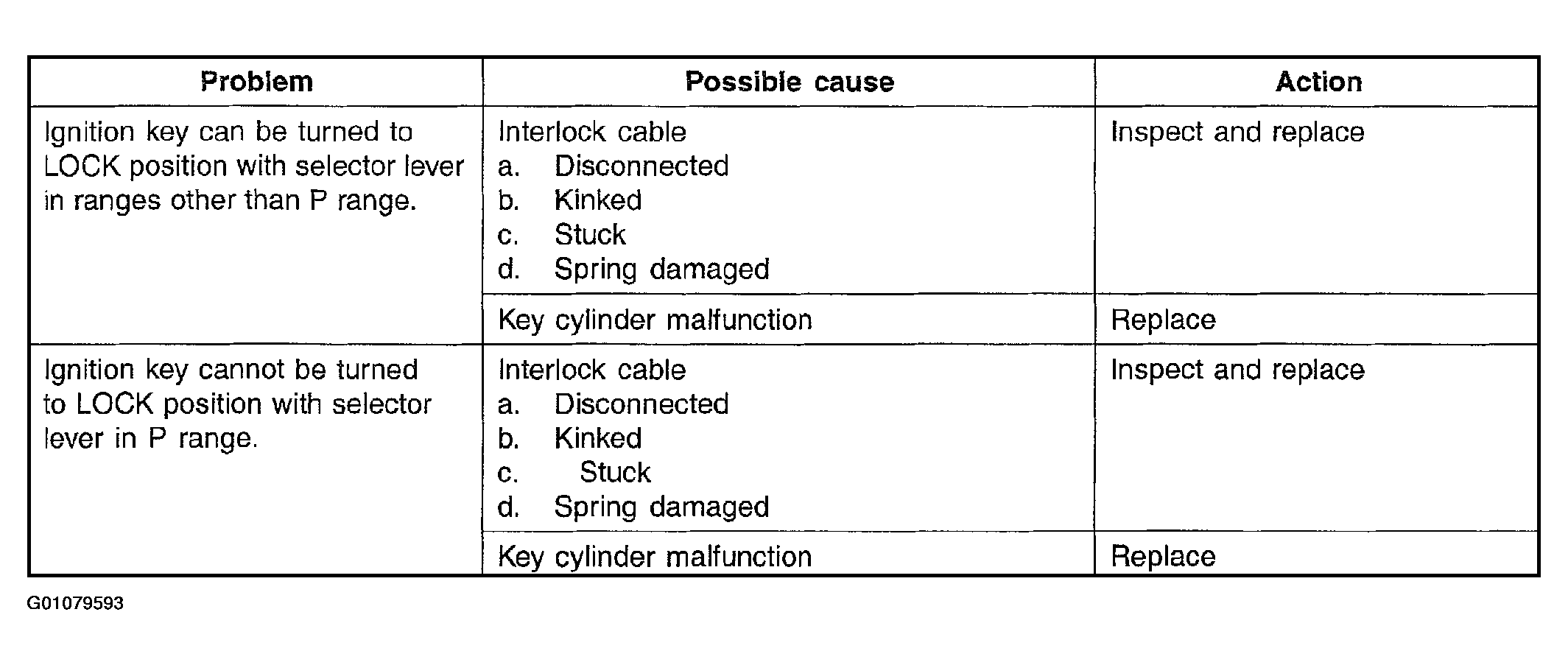

Fig 2: Selector Lever Troubleshooting Guide (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
