Upper Control Valve Body: Inspection

  1. Measure spring free lengths.
  2. If not within specification, replace spring (s).

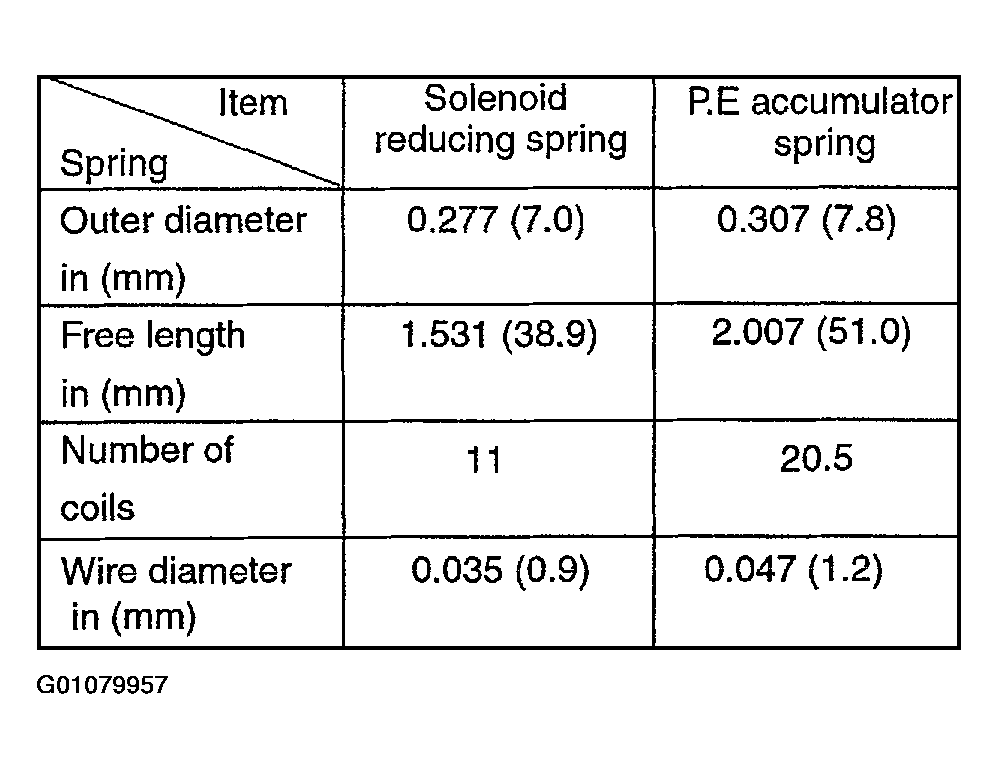

    Fig 1: Upper Control Valve Body Free Spring Specification Chart
    G01079957Courtesy of KIA MOTORS AMERICA, INC.

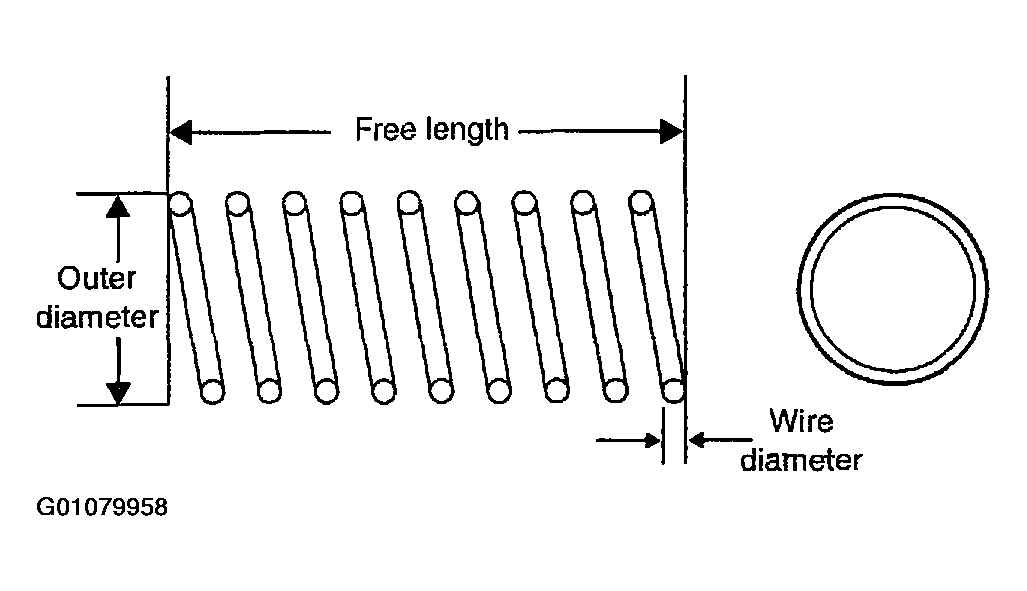

    Fig 2: Measuring Upper Control Valve Body Spring Free Lengths
    G01079958Courtesy of KIA MOTORS AMERICA, INC.
