PREMAIN Control Valve Body: Inspection

  1. Measure spring free lengths.
  2. If not within specification, replace spring (s).

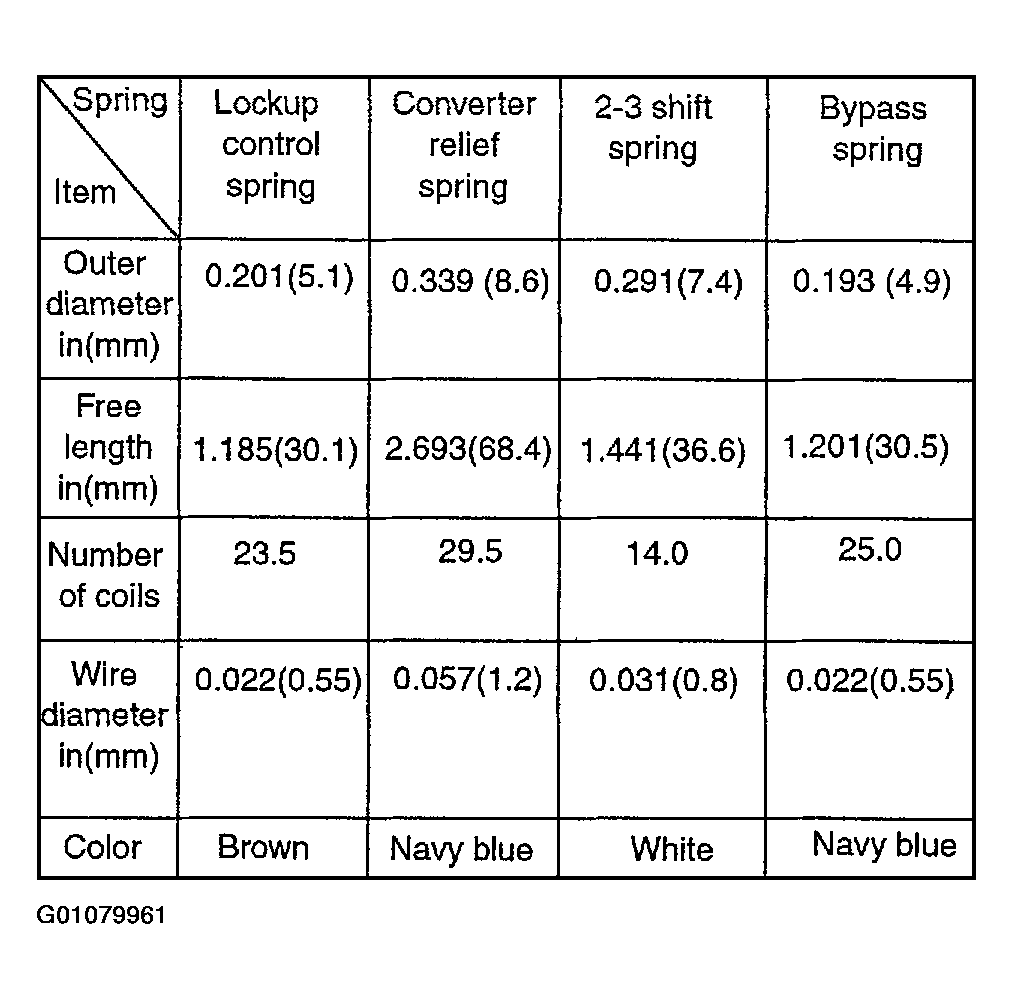

    Fig 1: Premain Control Valve Body Free Length Specification Chart
    G01079961Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Measuring Premain Control Valve Body Spring Free Lengths
    G01079962Courtesy of KIA MOTORS AMERICA, INC.
