Output Gear: Reassembly

  1. Press new bearings onto output gear with suitable tools.

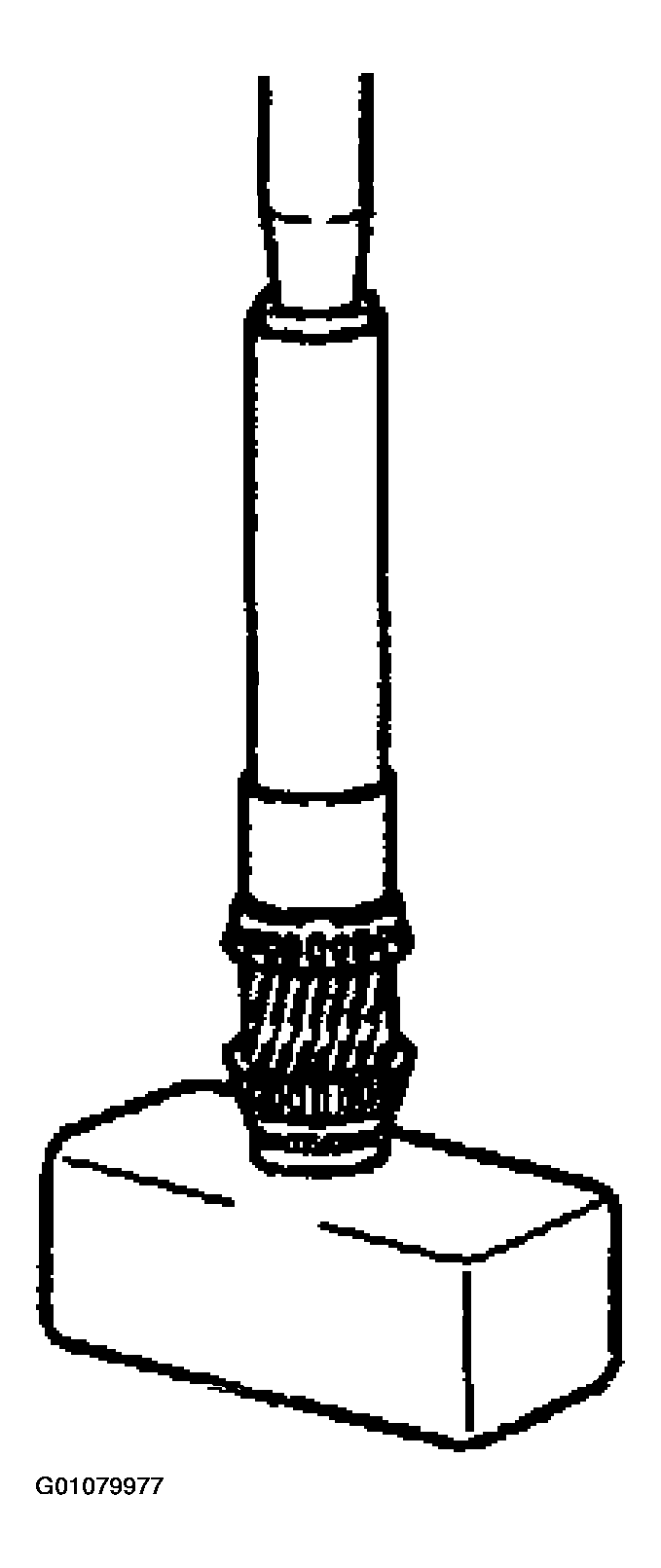

    Fig 1: Pressing New Bearings Onto Output Gear
    G01079977Courtesy of KIA MOTORS AMERICA, INC.
  2. Apply ATF to new seal rings and install them to each side of output gear.

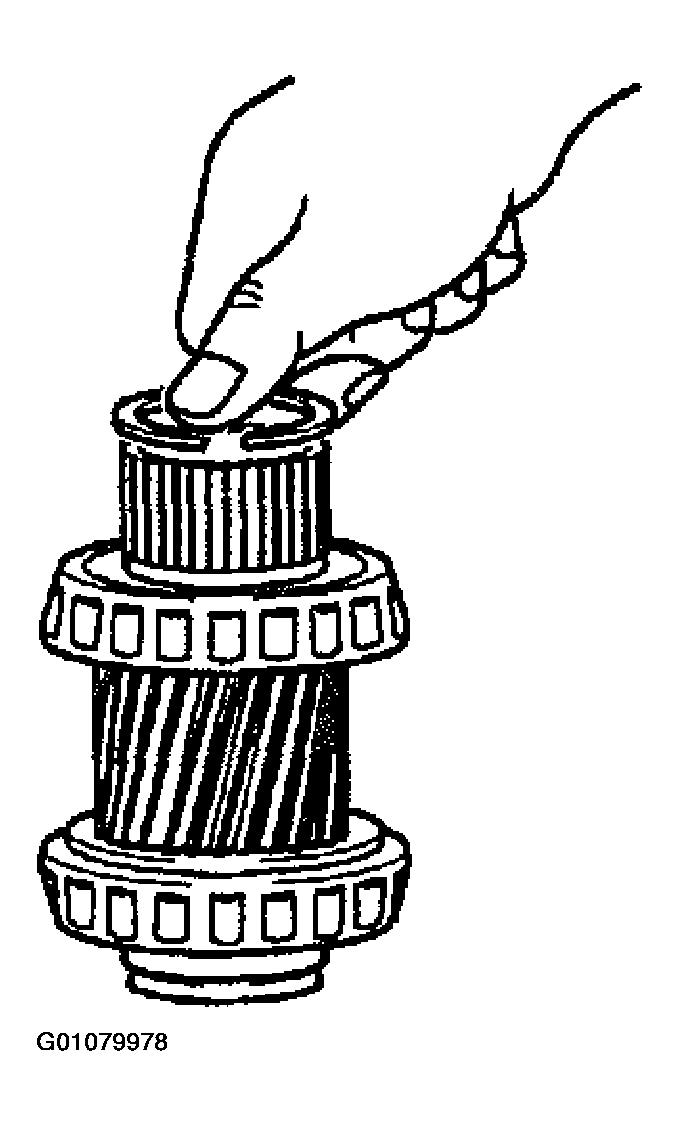

    Fig 2: Installing Output Gear Seal Rings
    G01079978Courtesy of KIA MOTORS AMERICA, INC.
