Main Control Valve Body: Inspection

  1. Measure spring free lengths.

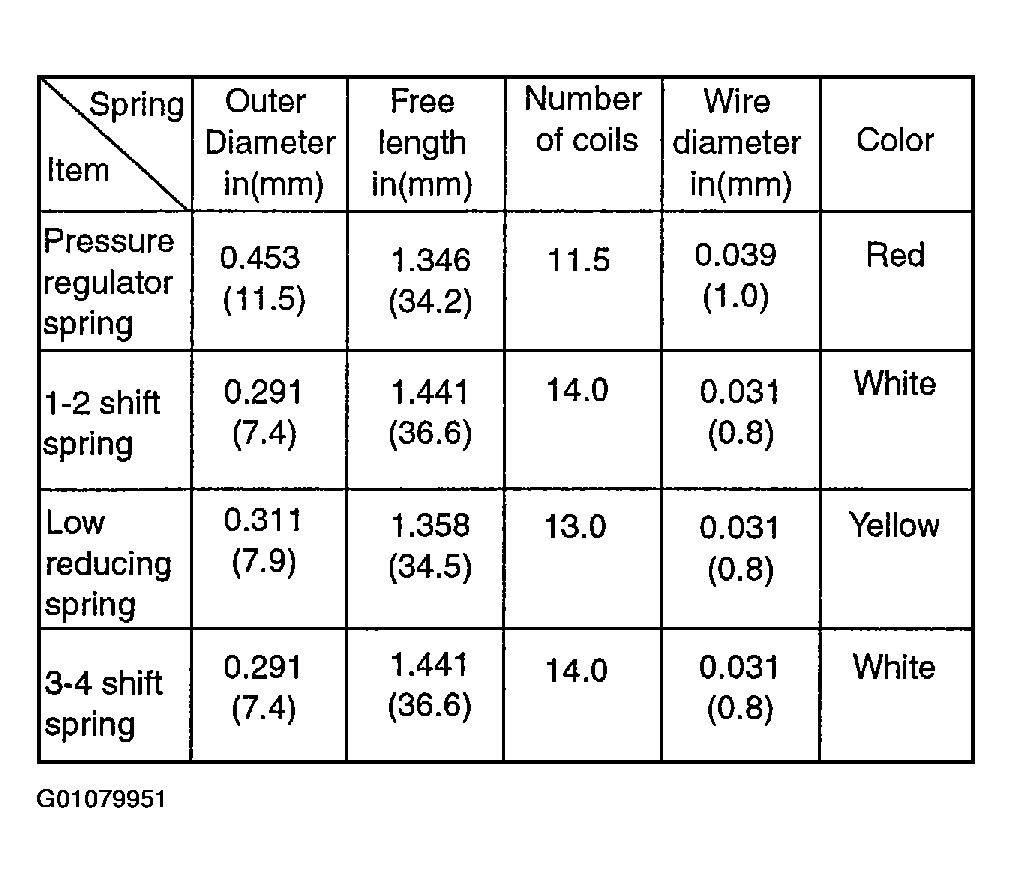

    Fig 1: Main Control Valve Body Spring Free Length Specification Chart
    G01079951Courtesy of KIA MOTORS AMERICA, INC.
  2. If not within specification, replace spring (s).

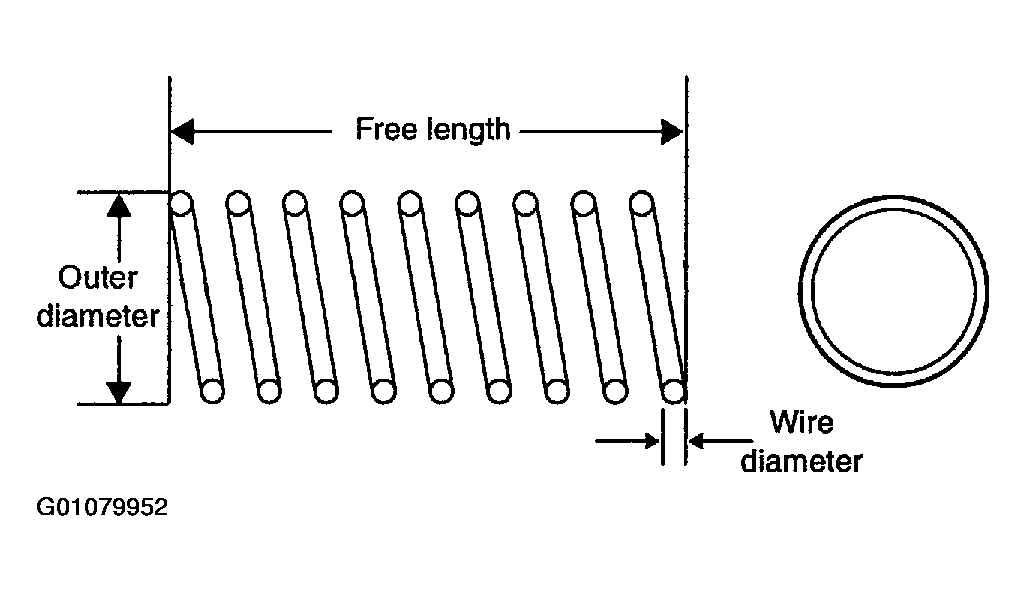

    Fig 2: Measuring Main Control Valve Body Spring Free Lengths
    G01079952Courtesy of KIA MOTORS AMERICA, INC.
