Brake Band: Disassembly

  1. Disassemble in order shown in figure.

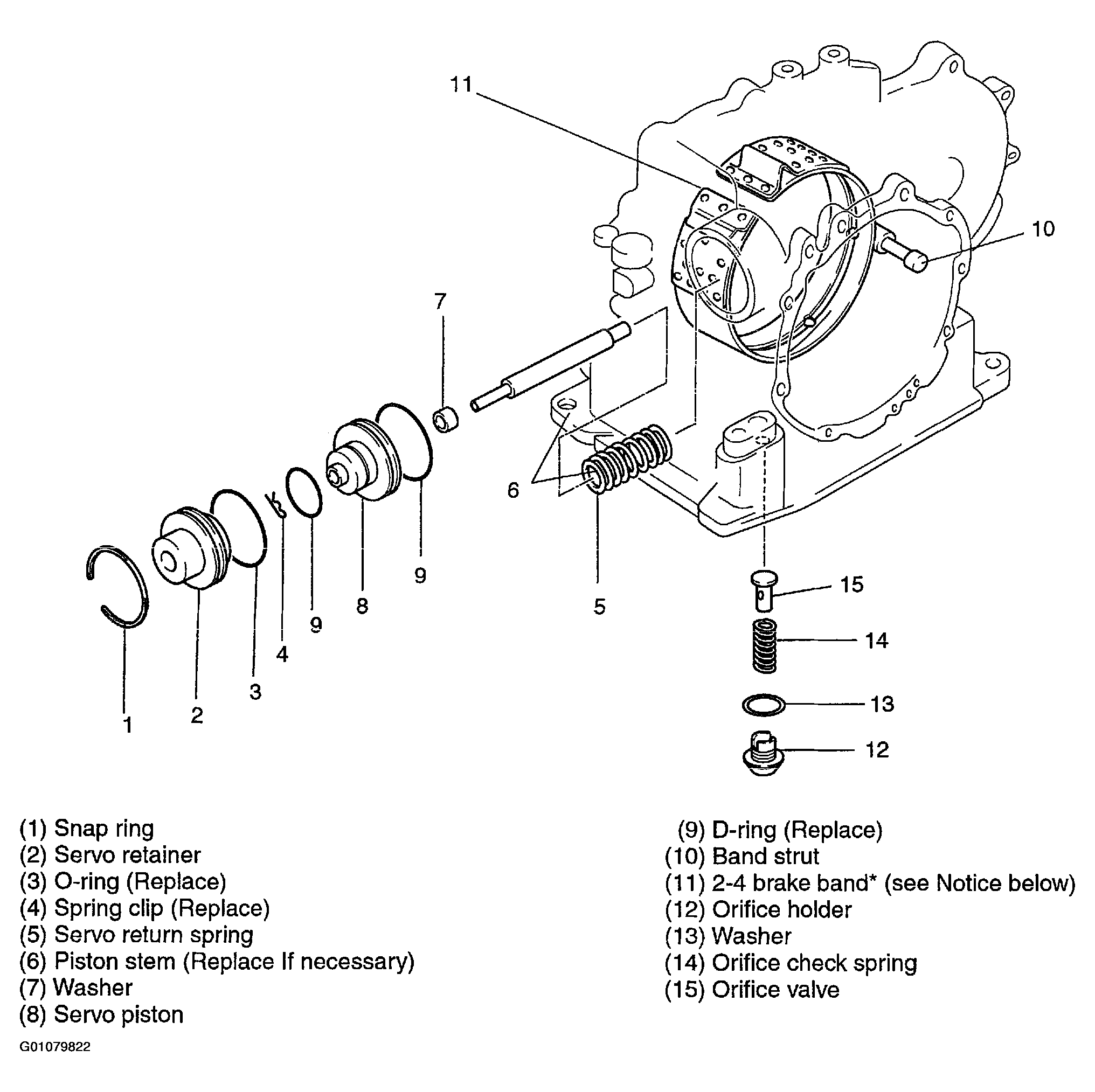

    Fig 1: Illustrating Brake Band Disassembly Order
    G01079822Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Use a piece of wire to secure 2-4 brake band so that it is not damaged by being allowed to fully expand.
