Diagnosis & Overhaul: Components: Accumulators: Inspection

ACCUMULATOR SPRING

1. Measure spring free length.

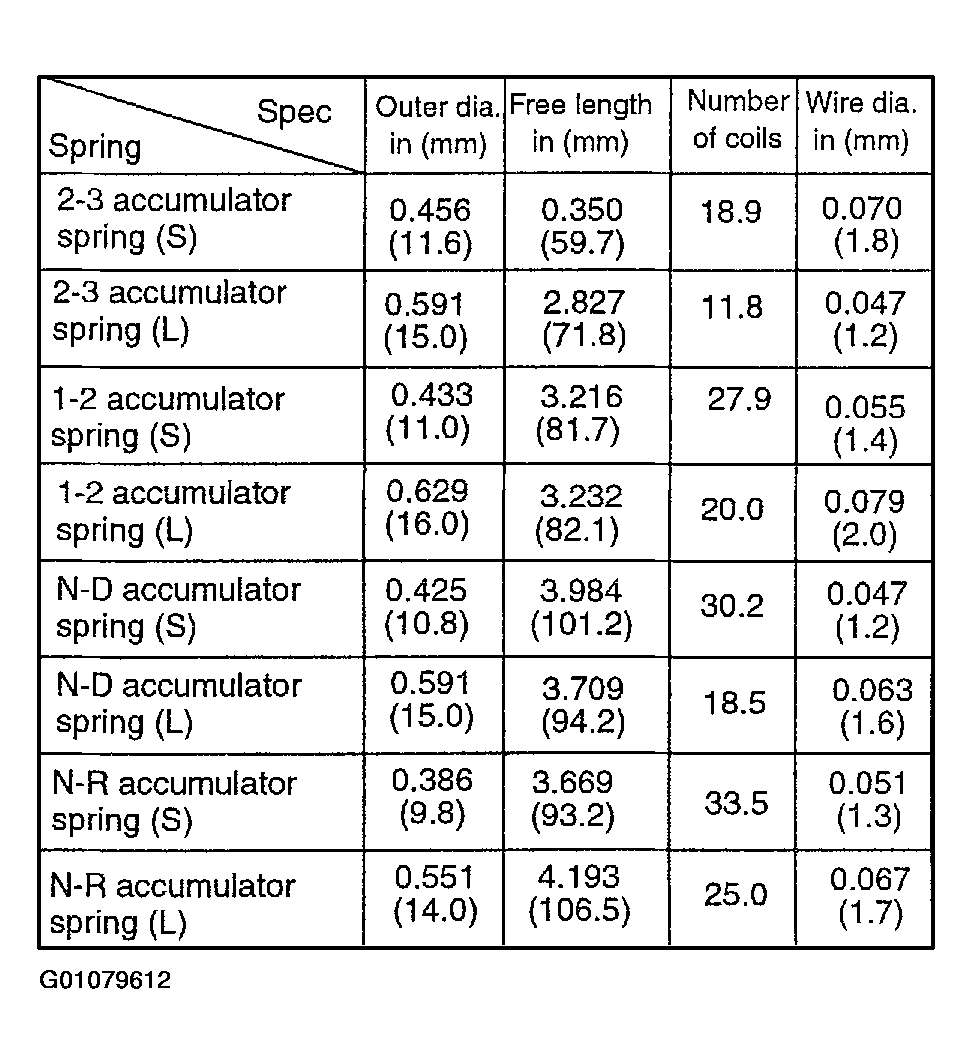

   Fig 1: Accumulator Spring Spec Chart

   Courtesy of KIA MOTORS AMERICA, INC.
2. If not within specification, replace spring.
   Fig 2: Measuring Accumulator Spring

   Courtesy of KIA MOTORS AMERICA, INC.
