Shift Lever: Component

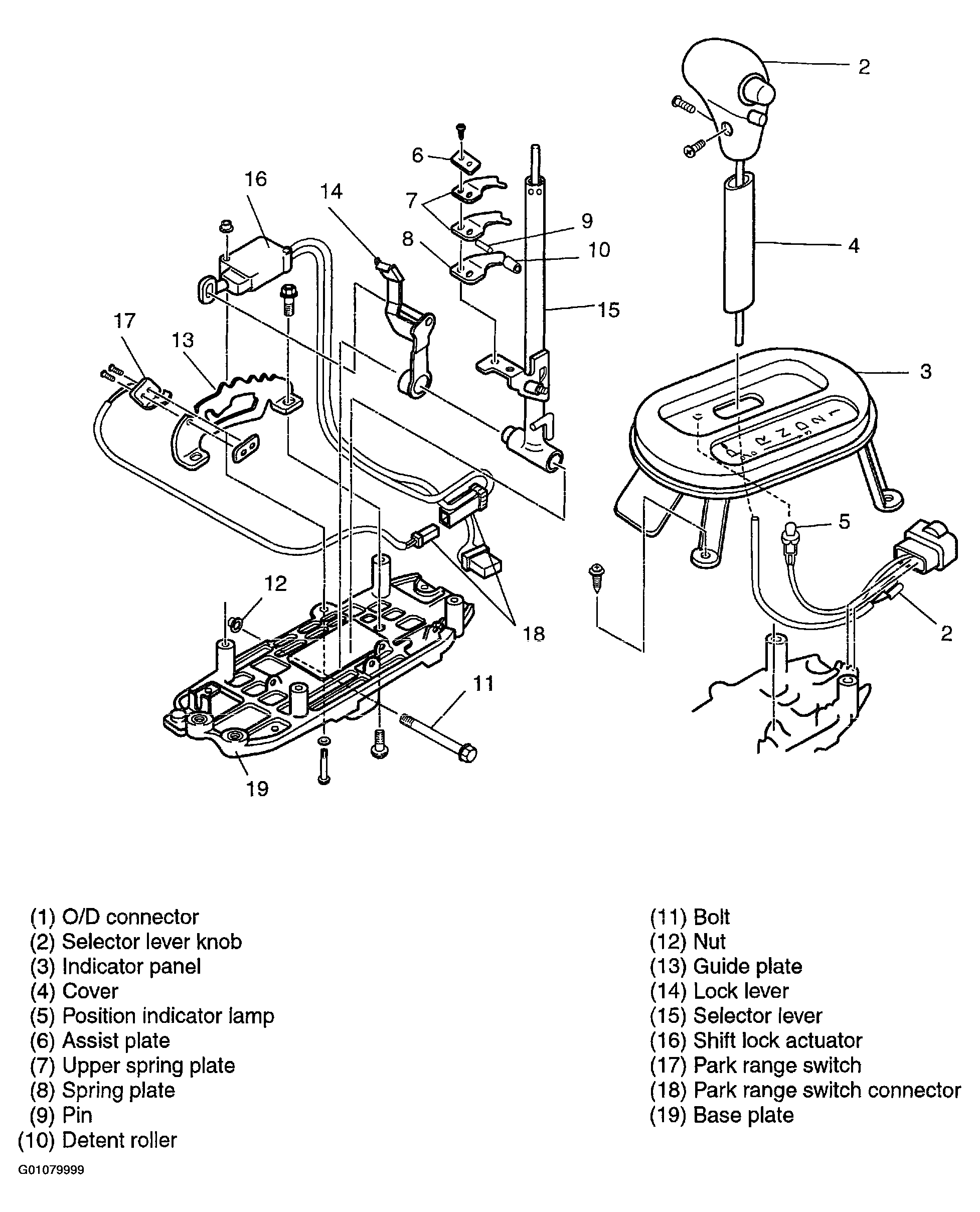

Fig 1: Illustrating Shift Lever Components
Courtesy of KIA MOTORS AMERICA, INC.
Fig 1: Illustrating Shift Lever Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
