Radiator Fan Motor: Installation

  1. Install fan motor and tighten three fan motor bolts and nuts.
  2. Install fan and clip
  3. Install radiator cowling to radiator.
  4. Install and tighten two upper radiator cowling bolts.

    Tightening torque: 5.8~7.9 lb.ft (7.8~10.8 N.m, 0.8~1.1 kg.m)

  5. Install and tighten lower two radiator cowling bolts.

    Tightening torque: 5.8~7.9 lb.ft (7.8~10.8 N.m, 0.8~1.1 kg.m)

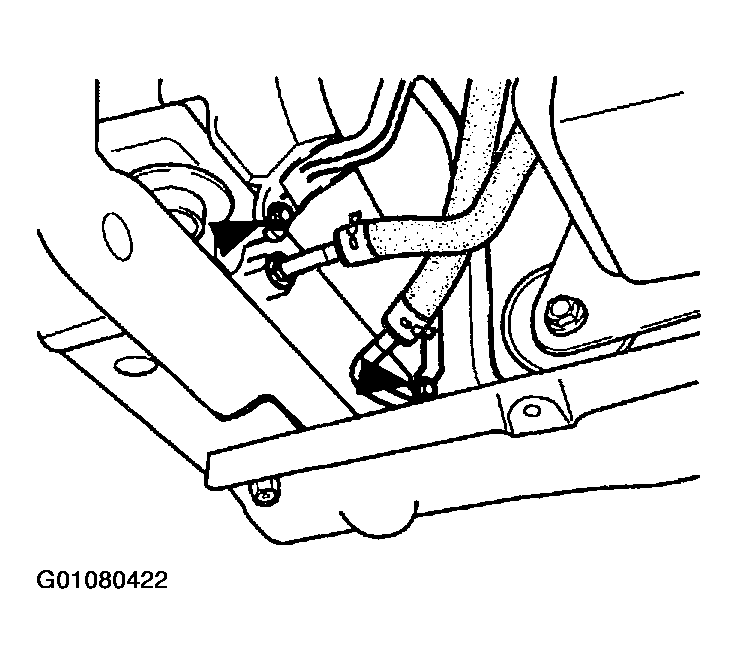

    Fig 1: Installing And Tightening Lower Two Radiator Cowling Bolts
    G01080422Courtesy of KIA MOTORS AMERICA, INC.
  6. Install upper radiator hose.

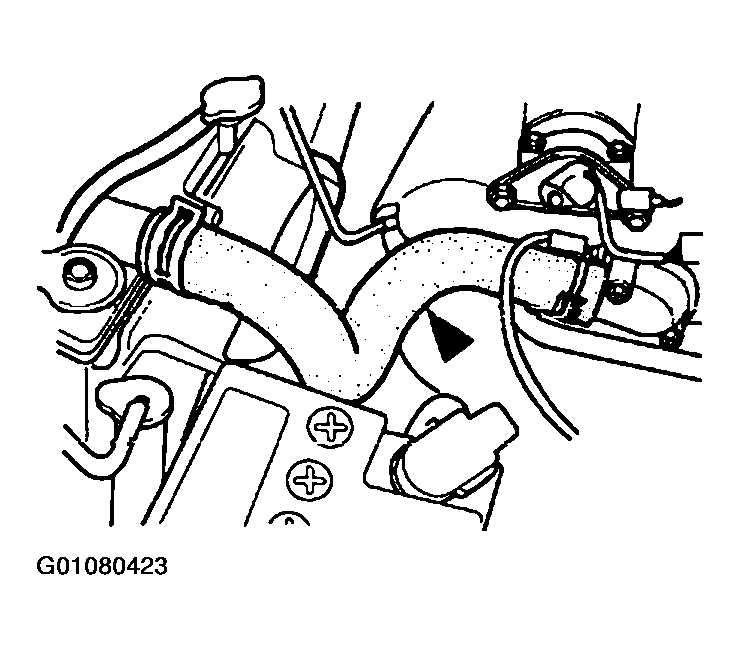

    Fig 2: Installing Upper Radiator Hose
    G01080423Courtesy of KIA MOTORS AMERICA, INC.
  7. Connect cooling fan motor connector.
  8. Install fresh air duct and tighten bolt and nut.

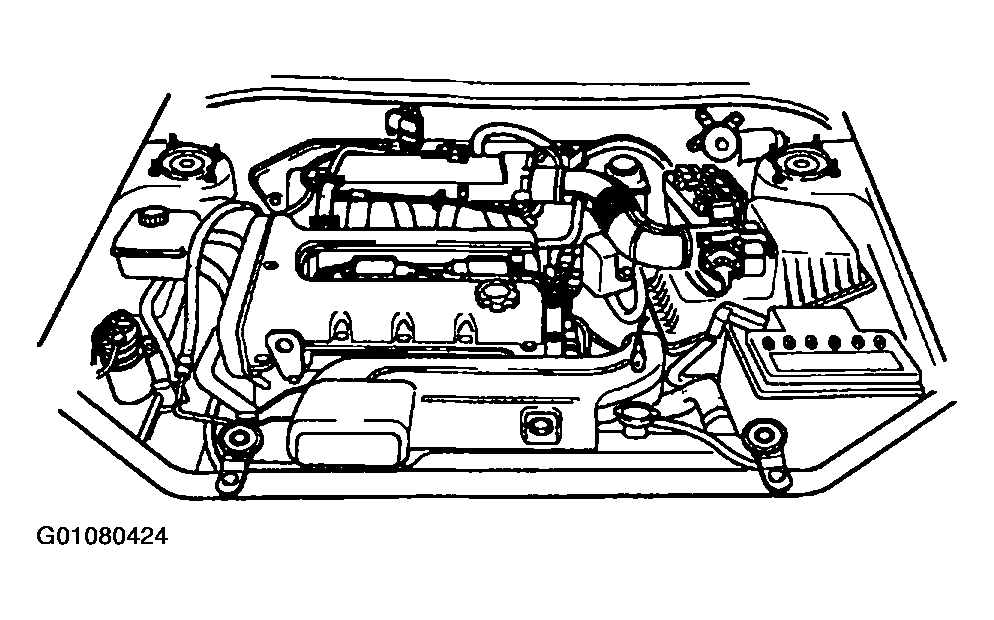

    Fig 3: Installing Fresh Air Duct And Tightening Bolt And Nut
    G01080424Courtesy of KIA MOTORS AMERICA, INC.
  9. Fill engine coolant See ENGINE COOLANT .
  10. Connect negative battery cable.
    Fig 4: Connecting Negative Battery Cable
    G01080426Courtesy of KIA MOTORS AMERICA, INC.
  11. Start engine and check for leaks.
