Cooling System: Thermostat: Installation

  1. Install thermostat into cylinder head with jiggle pin positioned up.
  2. Install new gasket.

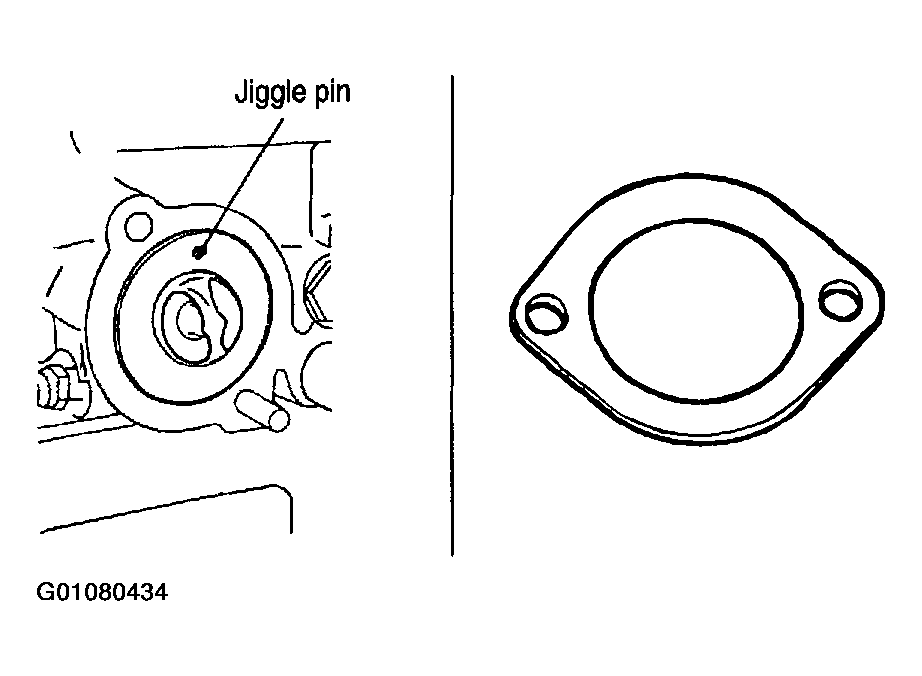

    Fig 1: Installing Thermostat Into Cylinder Head
    G01080434Courtesy of KIA MOTORS AMERICA, INC.
  3. Place thermostat housing and tighten bolt and nut.

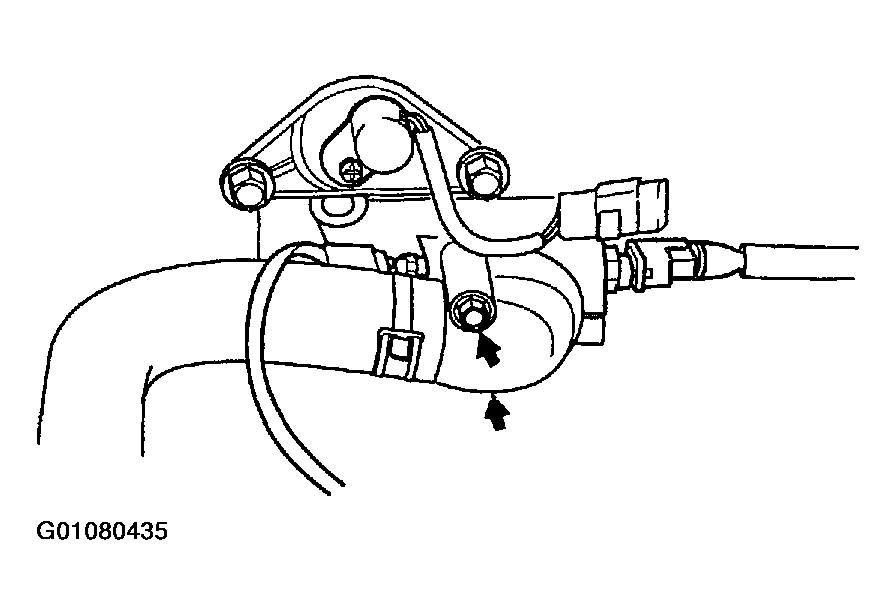

    Fig 2: Installing Thermostat Housing And Tightening Bolt And Nut
    G01080435Courtesy of KIA MOTORS AMERICA, INC.

    Tightening torque: 14~19 lb.ft (19~26 N.m, 1.9~2.6 kg.m)

  4. Fill radiator with specified amount and type of engine coolant.
  5. Connect negative battery cable.

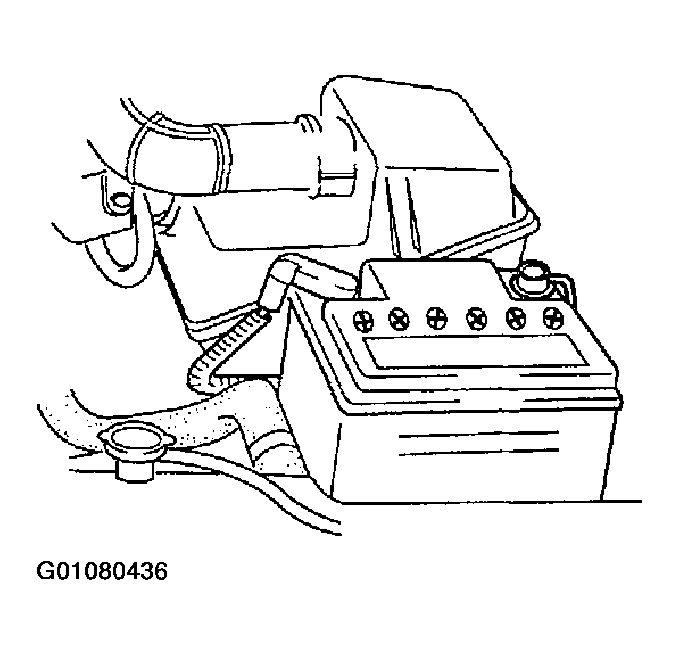

    Fig 3: Connecting Negative Battery Cable
    G01080436Courtesy of KIA MOTORS AMERICA, INC.
  6. Start engine and check for leaks.
