Passenger Compartment Fuse Box

NOTE: Passenger compartment fuse box is located behind access panel on driver's side kick panel.

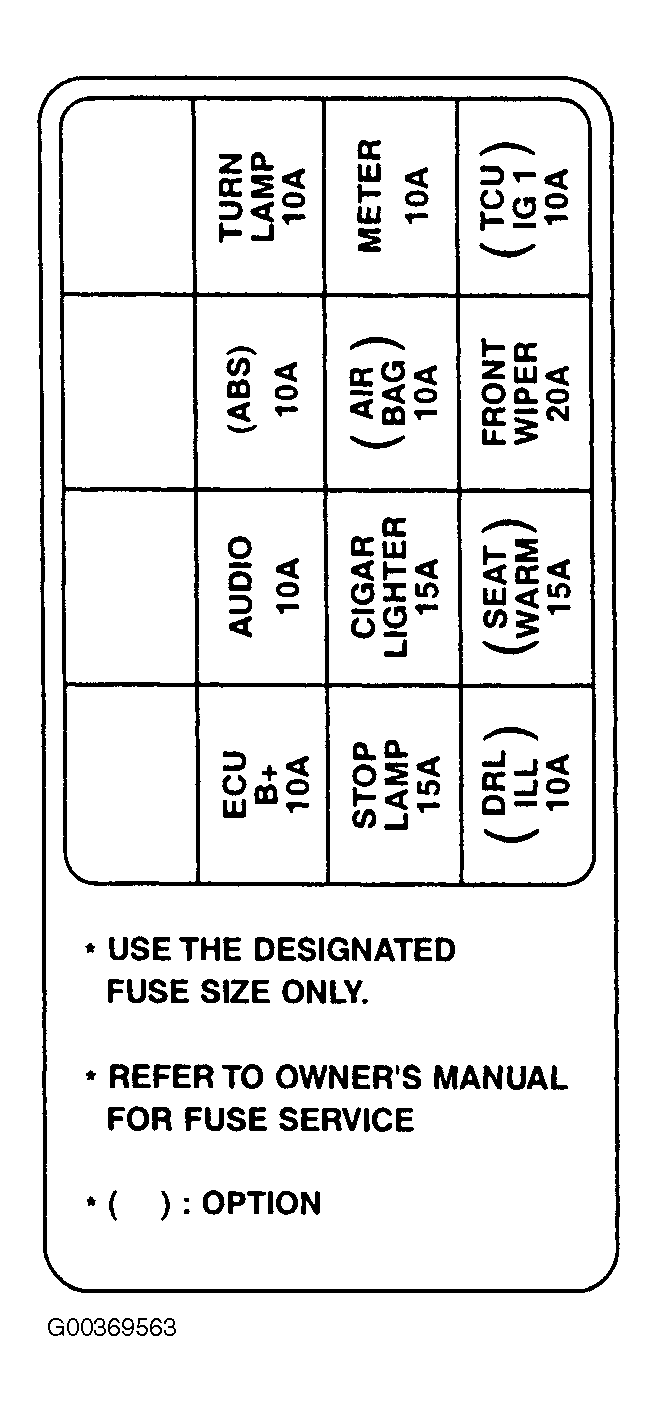

Fig 1: Locating & Identifying Components On Passenger Compartment Fuse Box
G00369563Courtesy of KIA MOTORS AMERICA, INC.
