Home >> Kia >> 2003 >> Spectra Base, Automatic >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Tripod Joint >> Component

Tripod Joint: Component

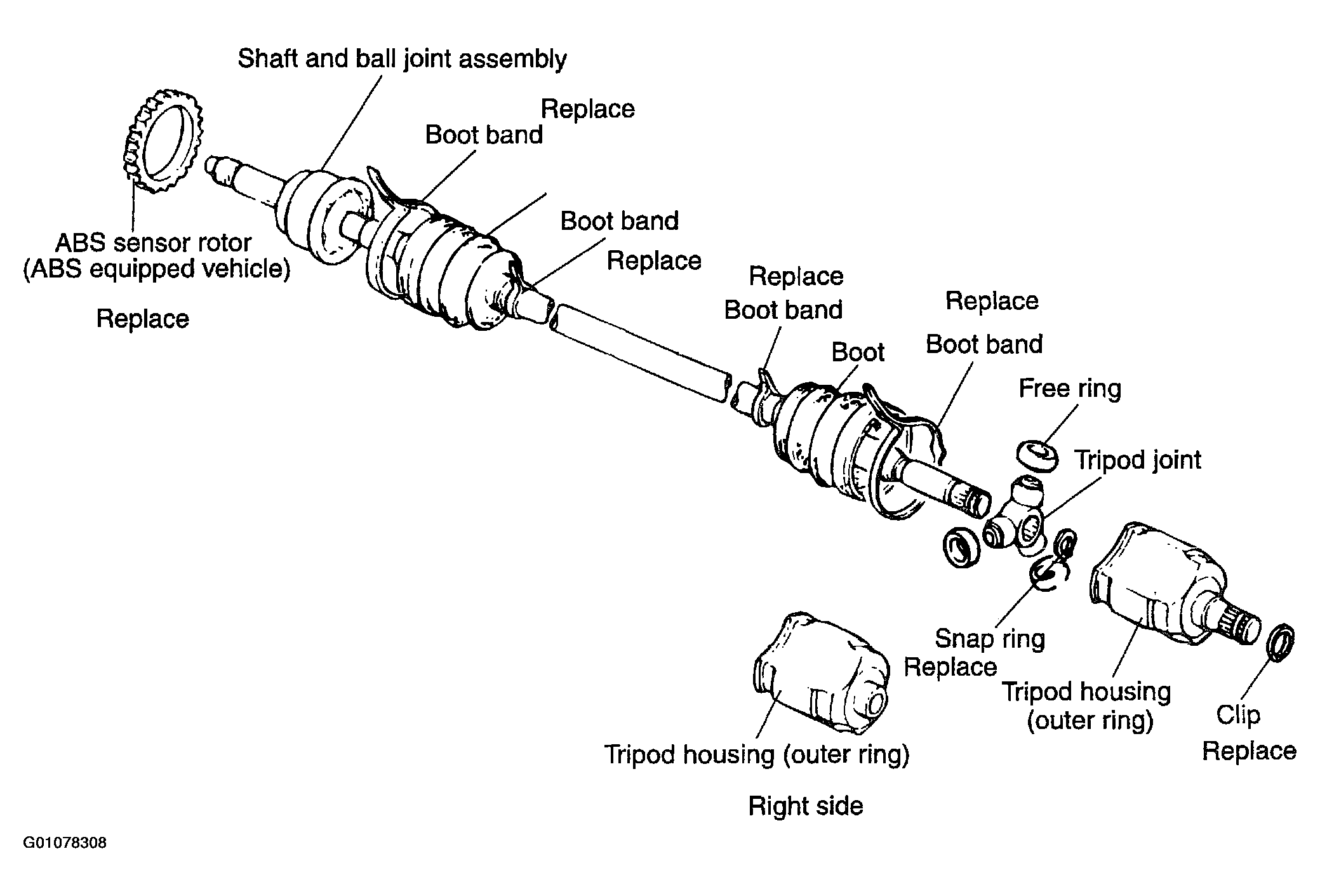

Fig 1: Exploded View Of Tripod Joint

G01078308

Courtesy of KIA MOTORS AMERICA, INC.
