Home >> Kia >> 2003 >> Spectra Base, Automatic >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Front Axle Hub/Knuckle >> Component

Front Axle Hub/Knuckle: Component

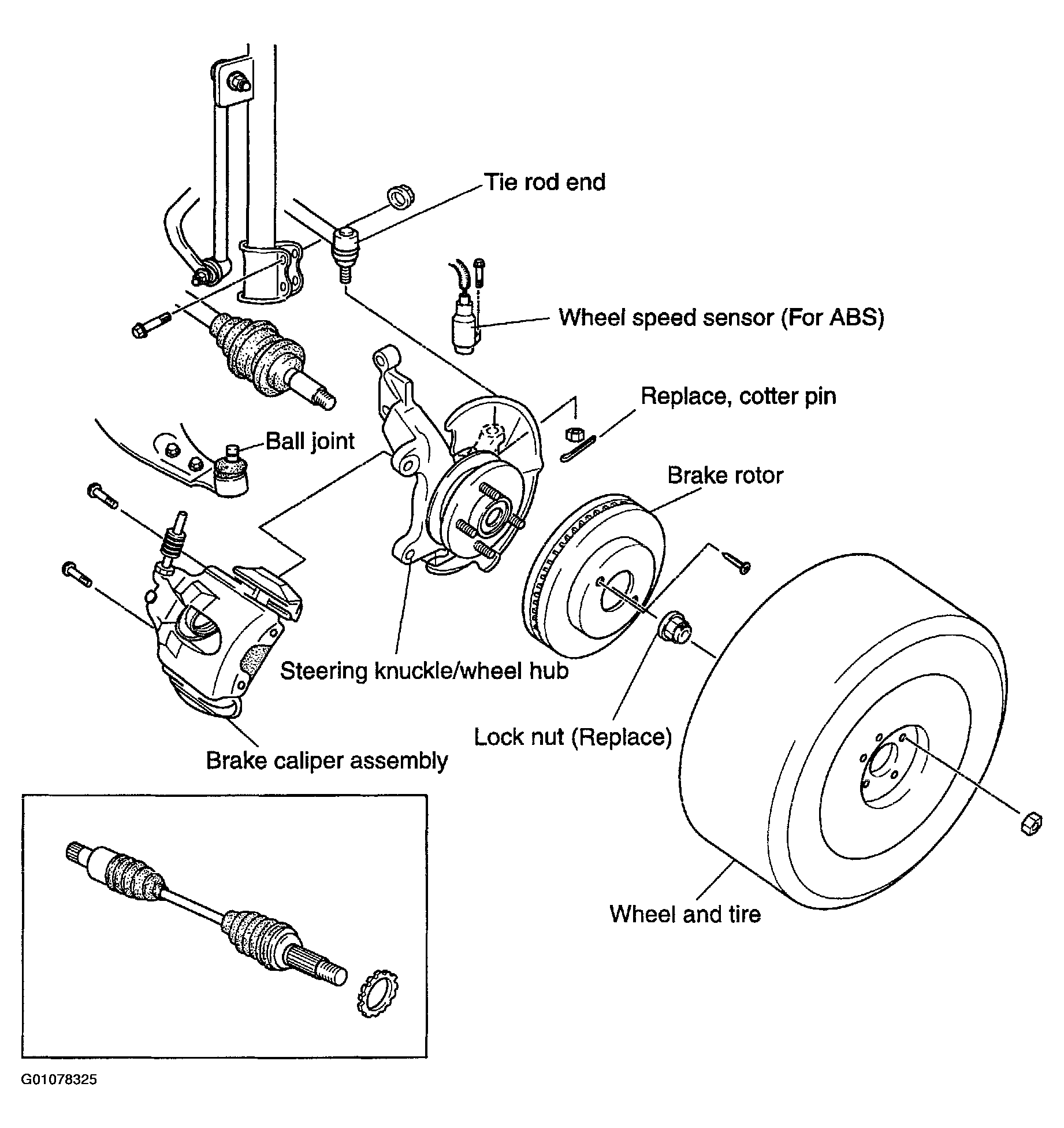

Fig 1: Illustrating Front Axle Components

G01078325

Courtesy of KIA MOTORS AMERICA, INC.
