Diagnostic Trouble Code Description
Diagnostic Trouble Code Description
Fig 1: Diagnostic Trouble Code Description (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

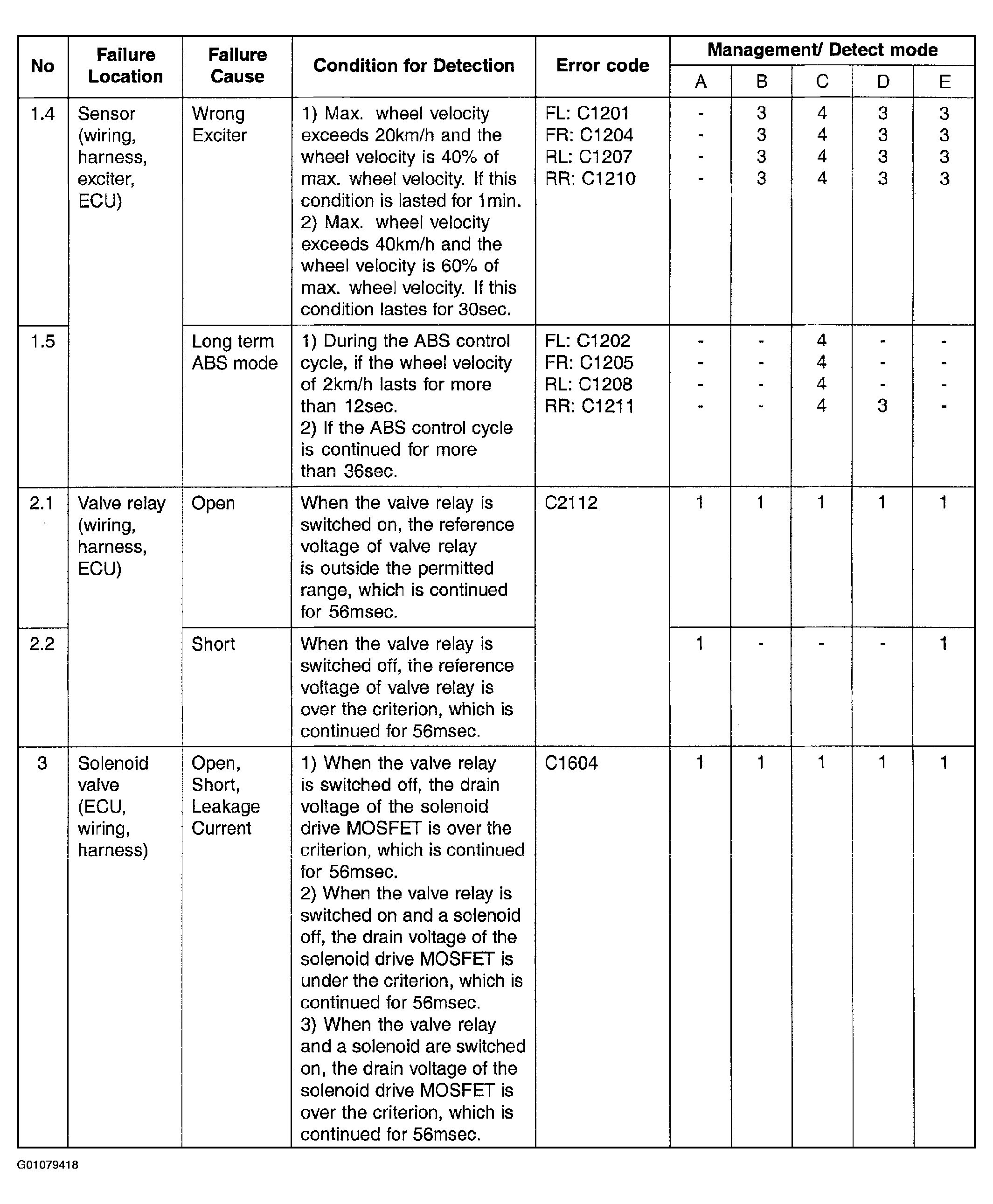

Fig 2: Diagnostic Trouble Code Description (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

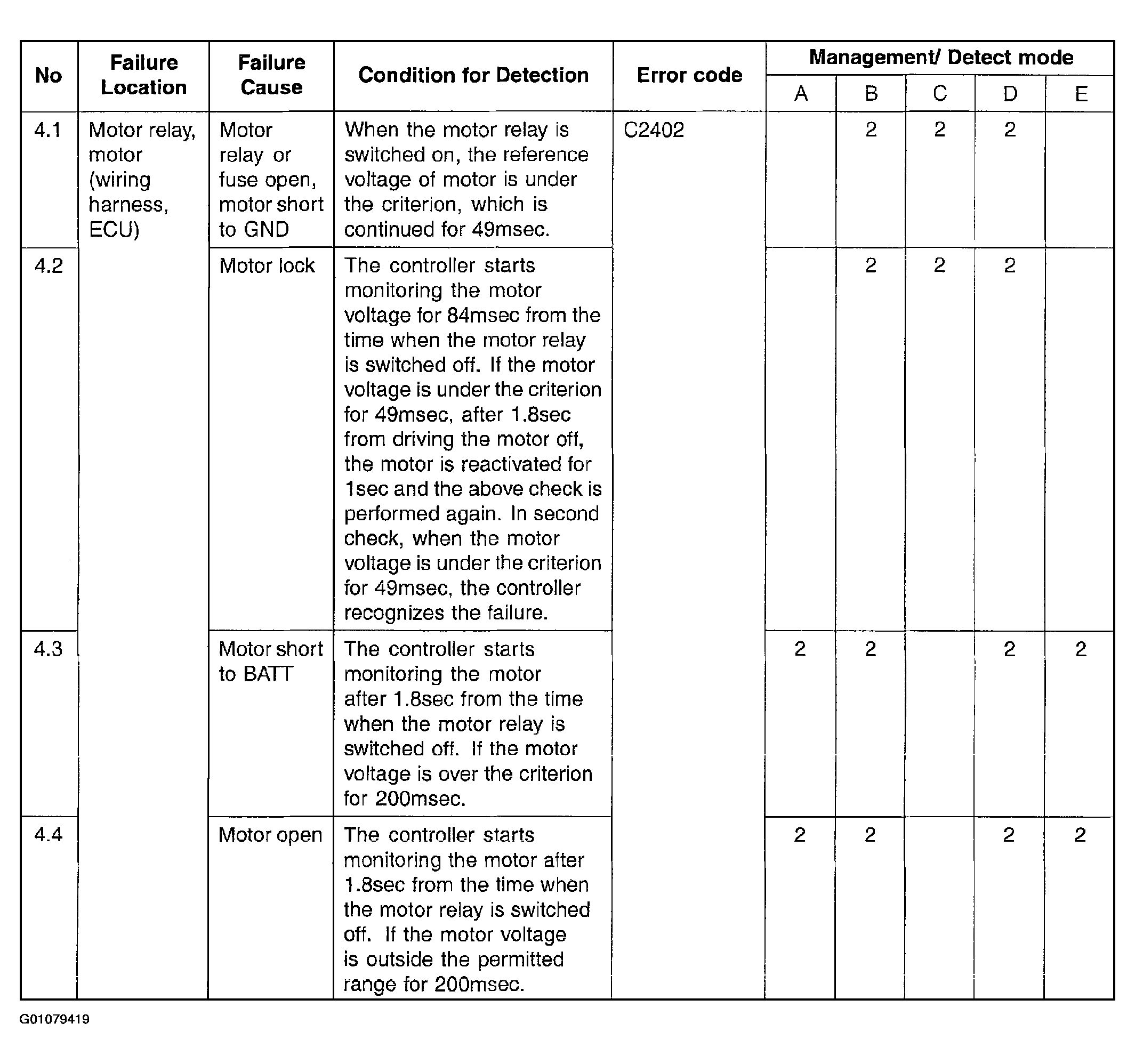

Fig 3: Diagnostic Trouble Code Description (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Diagnostic Trouble Code Description (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
